Sharp LC-32LE700E User Manual

LC-32/40/46LE700E/RU/S,LU700E/S,LX700E/RU,LC-52LE700E/RU/S
7 – 17

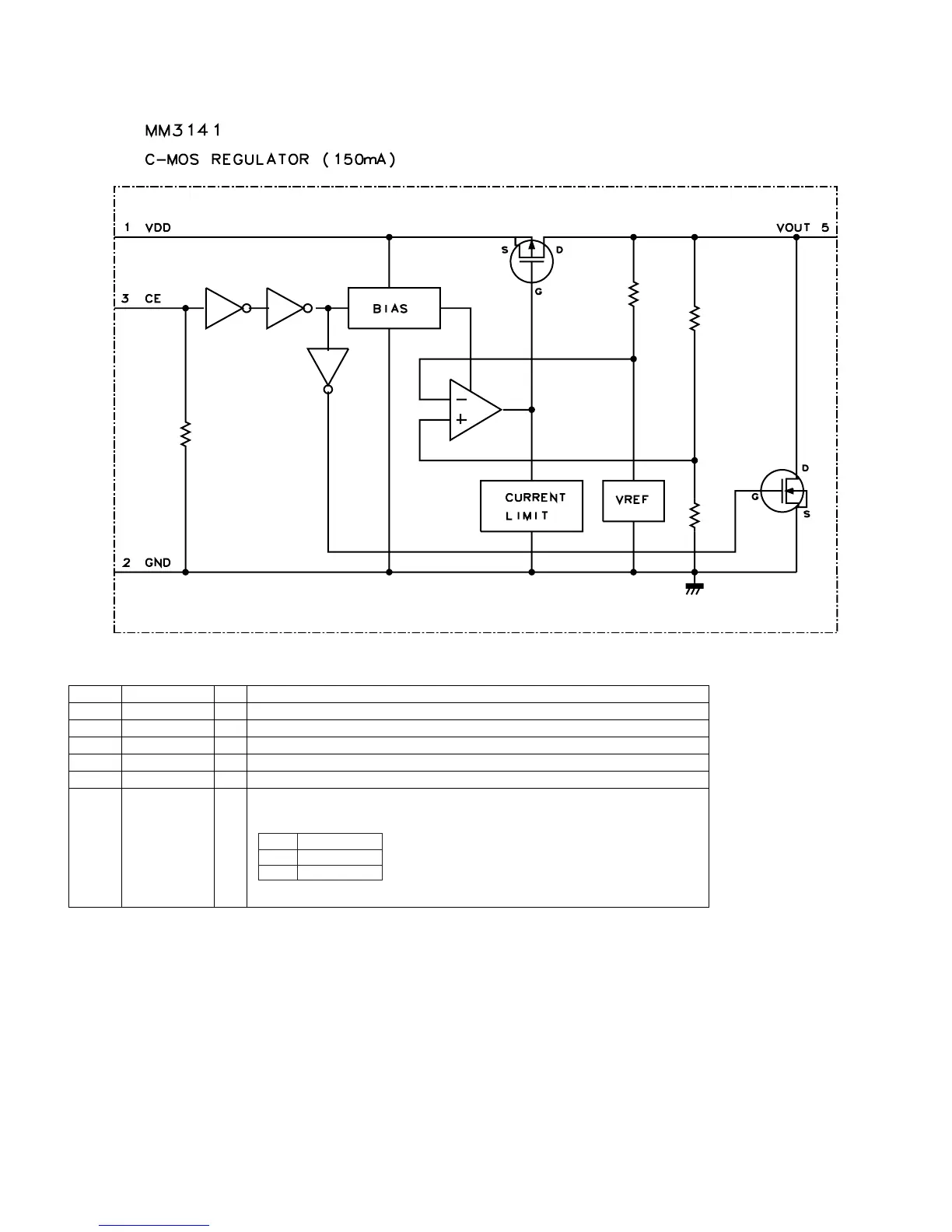

2.12. IC9603 (VHiMM3141YN-1Y)
2.12.1 Block Diagram
2.12.2 Pin Connections and short description
Pin No. Pin Name I/O Pin Function
1 VDD - Voltage supply pin.
4 NC - No connection
5 Vout O Output pin
- NC - No connection
2 GND - Ground pin
3CEI
ON/OFF control pin
Connect CE pin with VDD pin, when it is not used.
㩷㩷㪚㪜㩷㩷㩷㩷㩷㩷㩷㪭㫆㫌㫋
㩷㩷㩷㪣㩷㩷㩷㩷㩷㩷㩷㩷㪦㪝㪝
㩷㩷㩷㪟㩷㩷㩷㩷㩷㩷㩷㩷㪦㪥

Sharp LC-32LE700E Specifications

General

Display diagonal	32 \
Native aspect ratio	16:9
Native refresh rate	100 Hz
RMS rated power	20 W
Number of speakers	2
PC in (D-Sub)	Yes
HDMI ports quantity	4
USB 2.0 ports quantity	1

Weight and Dimensions

Depth (without stand)	92 mm
Width (without stand)	767 mm
Height (without stand)	502 mm
Weight (without stand)	13500 g
