2.14. IC1107 (VHiPQ1LA505-1Y)

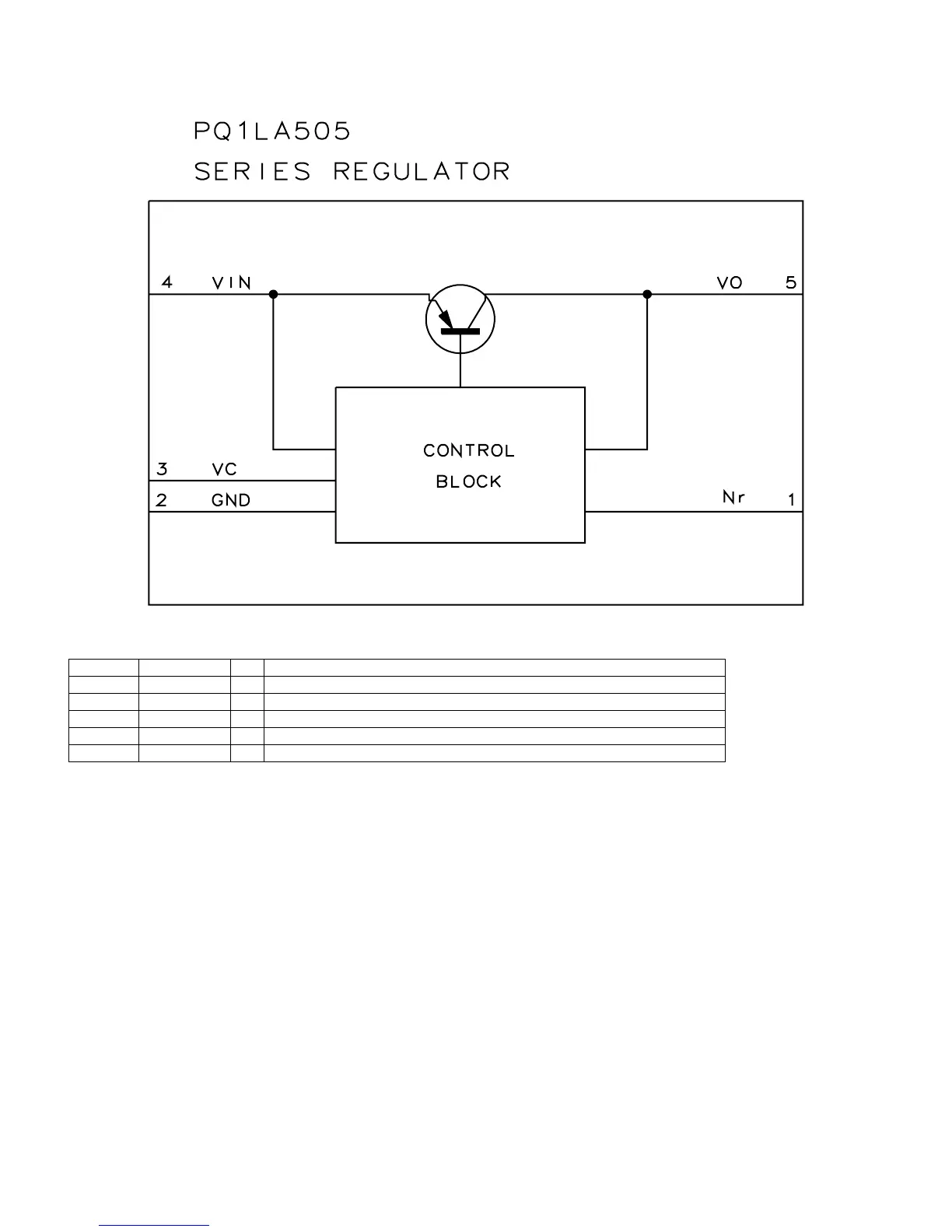

2.14.1 Block Diagram
2.14.2 Pin Connections and short description
Pin No. Pin Name I/O Pin Function
1 Nr I Noise Control
2 GND - Ground pin
3 Vc I ON/OFF Control
4 Vin I DC input
5 Vo O DC Output
