2.15. IC9610 (VHiPQ1LAX95-1Y)

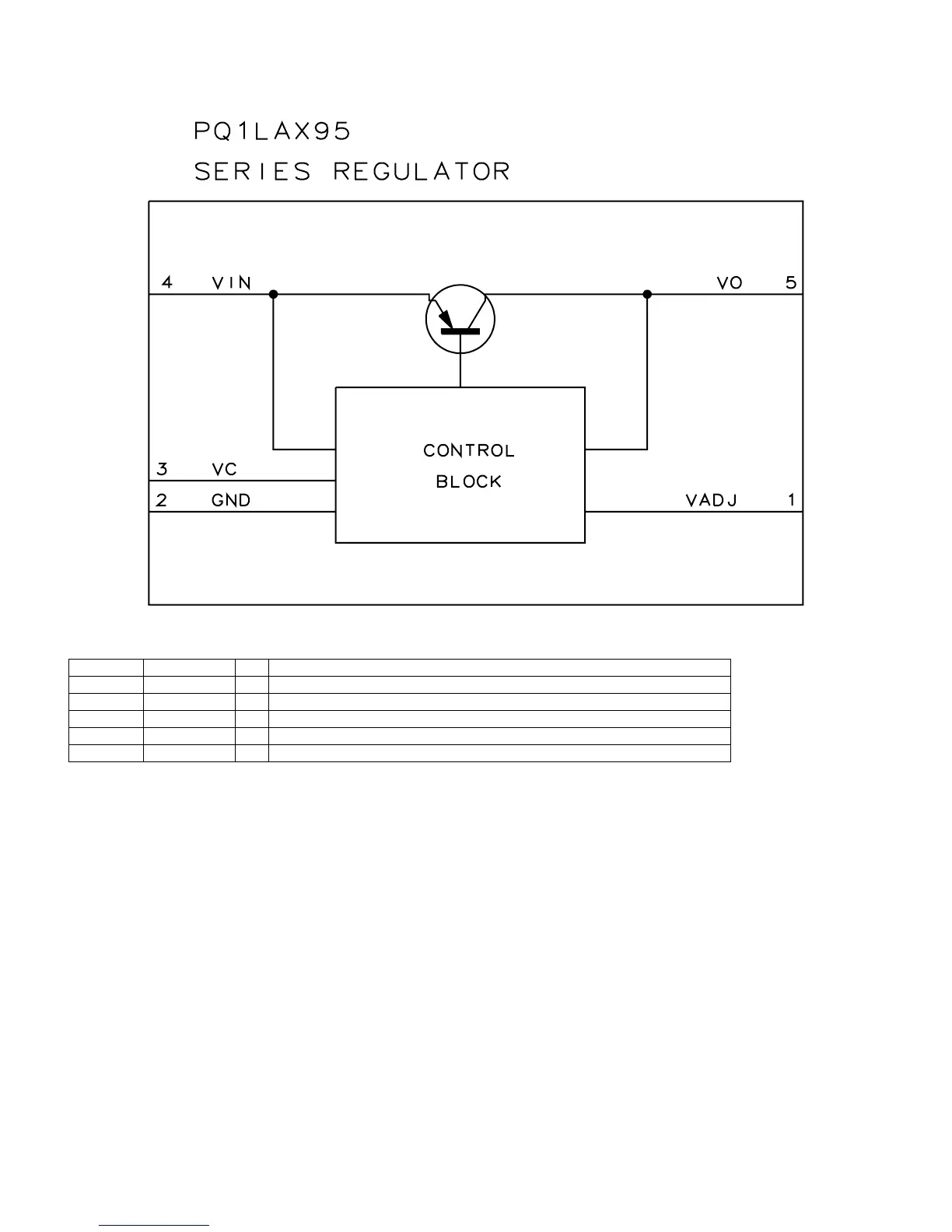

2.15.1 Block Diagram
2.15.2 Pin Connections and short description
Pin No. Pin Name I/O Pin Function
1 Vadj I Output Voltage Control
2 GND - Ground pin
3 Vc I ON/OFF Control
4 Vin I DC input
5 Vo O DC Output
