2.20. IC1103 (VHiTCR5SB25-1Y)/IC9609 (VHiTCR5SB33-1Y)

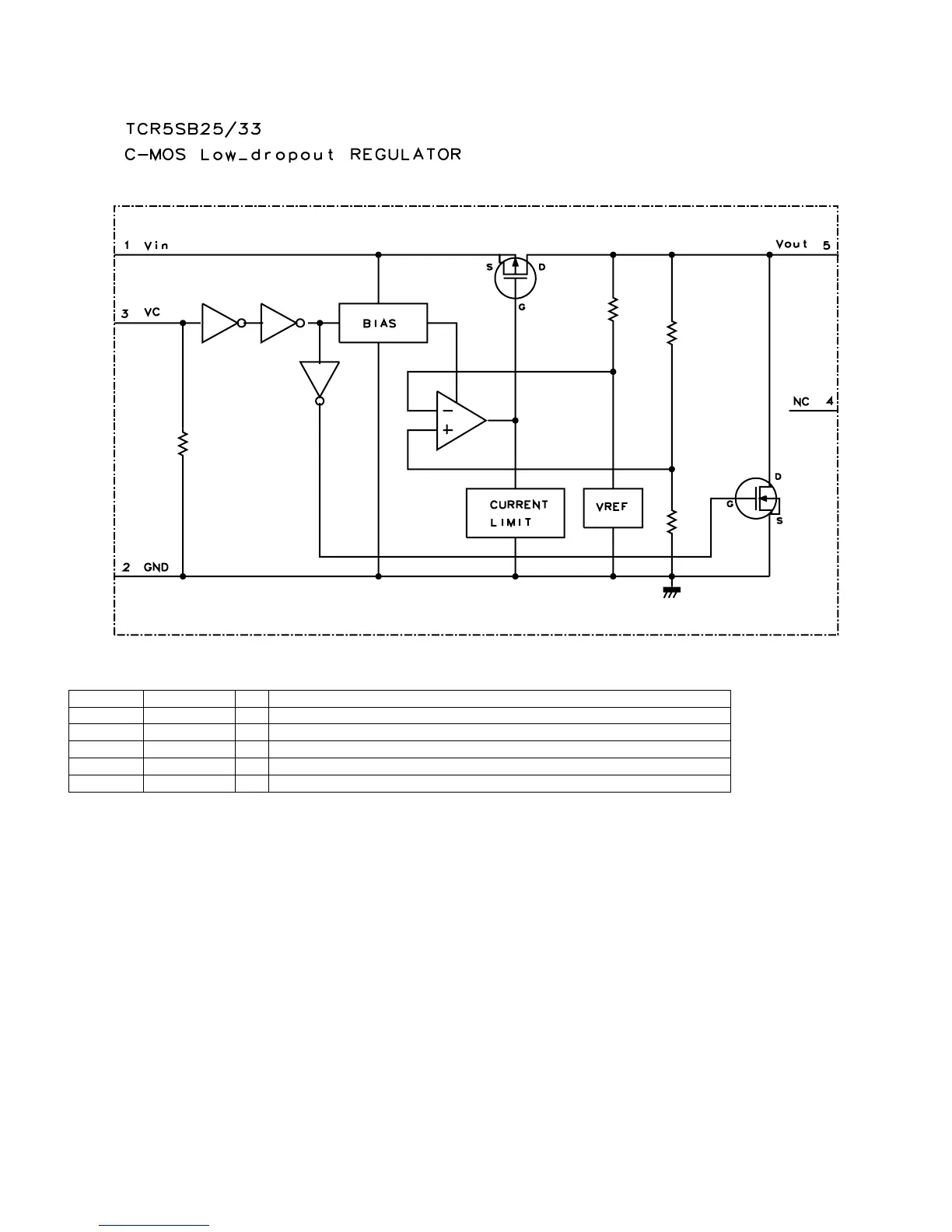

2.20.1 Block Diagram
2.20.2 Pin Connections and short description
Pin No. Pin Name I/O Pin Function
1 VIN - Voltage supply pin.
2 Ground - Ground pin
3 Control I Control signal pin
4 NC - No connection
5 Vout O Output pin
