Sharp LC-46LE925E User Manual

LC-46/60LE925E
4 – 3

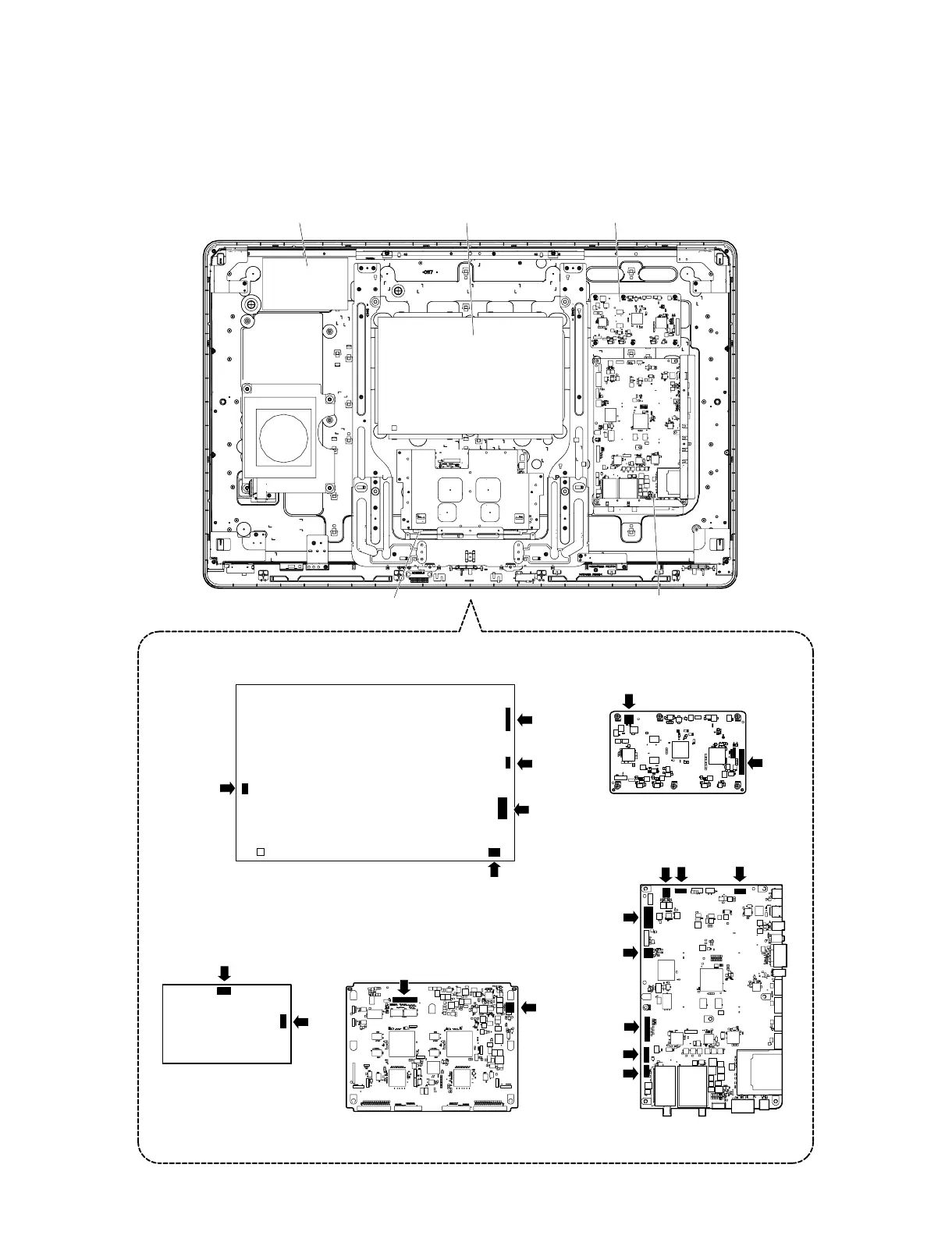

3. Removing of Connectors
1. Disconnect the following connectors from the MAIN Unit. (SB, LB, PD, LW, RA, RL, IR, HN)
2. Disconnect the following connectors from the POWER Unit. (LA, PD, PL, AS, PN)
3. Disconnect the following connectors from the LCD CONTROL Unit. (LW, PL)
4. Disconnect the following connectors from the LED DRIVER Unit. (LA, LB)
5. Disconnect the following connectors from the HDMI CONVERTER Unit. (PN, HN)
[AS]
[PD]
[LW]
[RA]
[RL]
[LA]
[PN]
[PD]
[SB]
[LB]
[LA]
[LB]
[PL]
[HN]
[PN]
[HN]
[IR]
[PL]
[LW]
MAIN Unit
MAIN Unit
LCD CONTROL Unit
LCD CONTROL Unit
LED DRIVER Unit
LED DRIVER Unit
POWER Unit
POWER Unit
HDMI CONVERTER Unit
HDMI CONVERTER Unit

Sharp LC-46LE925E Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	46 \
Display brightness	- cd/m²
Native aspect ratio	16:9
Native refresh rate	100 Hz
LED backlighting type	Edge-LED
Viewing angle, horizontal	176 °
RMS rated power	20 W
Number of speakers	2
PC in (D-Sub)	-
HDMI ports quantity	4
DVI-D ports quantity	0
Common interface (CI)	No
USB 2.0 ports quantity	1
Common interface Plus (CI+)	Yes
Consumer Electronics Control (CEC)	Aquos Link
Product color	Black
Panel mounting interface	400 x 400 mm
Power consumption (standby)	0.2 W
Power consumption (typical)	95.1 W
Tuner type	Analog & digital
Analog signal format system	NTSC, PAL, SECAM
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T

Weight and Dimensions

Depth (with stand)	340 mm
Height (with stand)	785 mm
Weight (with stand)	45000 g
Depth (without stand)	39 mm
Width (without stand)	1127 mm
Height (without stand)	734 mm
