LC-46/60LE925E
4 – 8

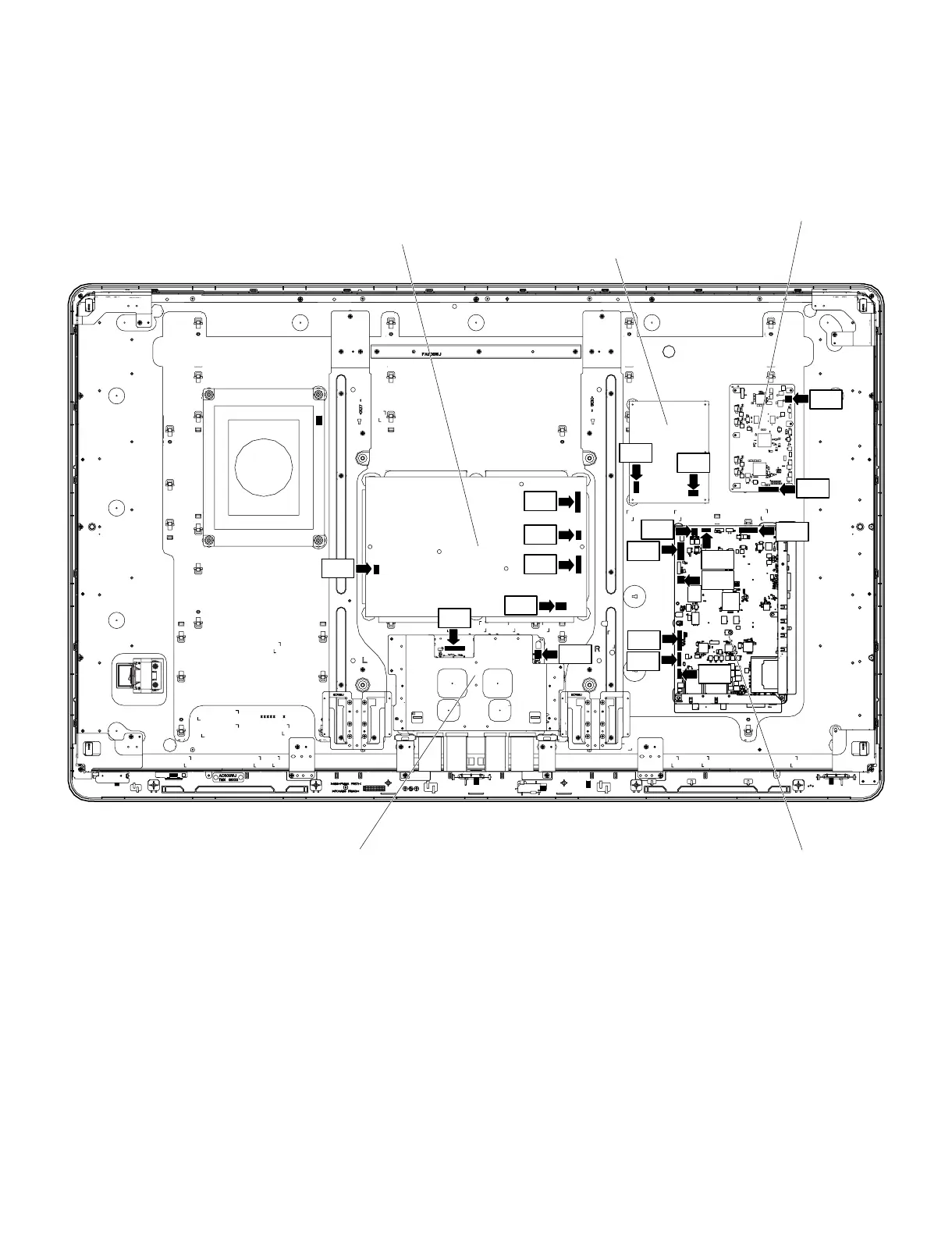

3. Removing of Connectors.
1. Disconnect the following connectors from MAIN Unit. (RL, IR, RA, HN, SB, PD, LB, LW)
2. Disconnect the following connectors from HDMI CONVERTER Unit. (HN, PN)
3. Disconnect the following connectors from POWER Unit. (PN, PD, LA, PL, AS)
4. Disconnect the following connectors from LCD CONTROL Unit. (LW, PL)
5. Disconnect the following connectors from LED DRIVER Unit. (LB, LA)
SB
LA
LA
PN
PD
PL
LW
PL
PD
LB
LB
HN
PN
IR
LW
RA
RL
AS
MAIN Unit
POWER Unit
HDMI CONVERTER Unit
LED DRIVER Unit
LCD CONTROL Unit
HN
To Next Page
