LC-46/60LE925E
4 – 9

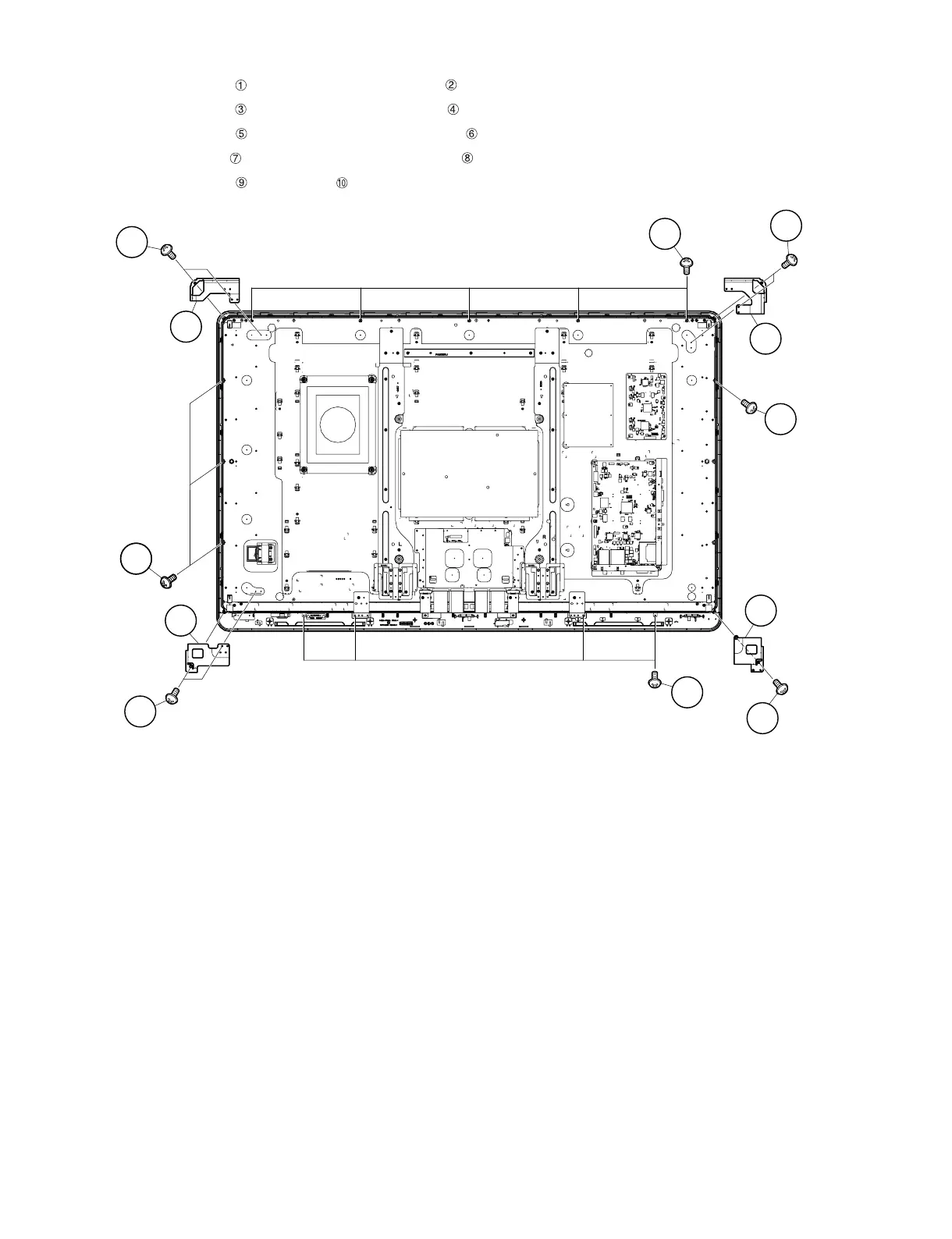

4. Removing of LCD Angle (Top-L/R) and LCD Angle (Bottom-L/R).
1. Remove the 2 lock screws and detach the LCD Angle (Top-L) .
2. Remove the 2 lock screws and detach the LCD Angle (Top-R) .
3. Remove the 2 lock screws and detach the LCD Angle (Bottom-L) .
4. Remove the 1 lock screw and detach the LCD Angle (Bottom-R) .
5. Remove the 9 lock screws , 4 lock screws .
3
4
10
1
2
6
5
8
7
9
LCD Angle
(Bottom-R)
LCD Angle
(Bottom-L)
LCD Angle
(Top-R)
LCD Angle
(Top-L)
9
10
