LC-46/60LE925E
4 – 12

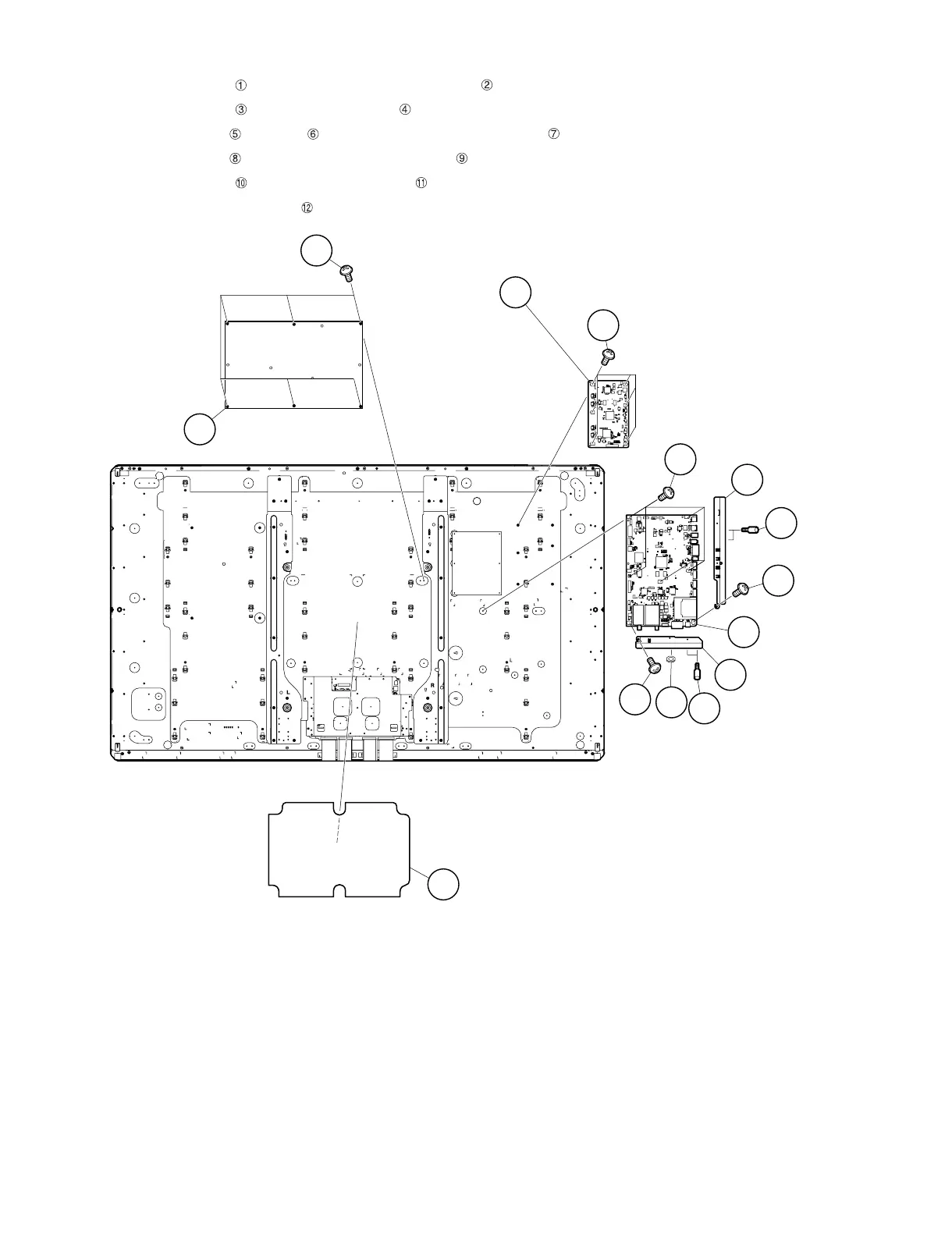

7. Removing of HDMI CONVERTER Unit, MAIN Unit and POWER Unit.
1. Remove the 6 lock screws and detach the HDMI CONVERTER Unit .
2. Remove the 7 lock screws and detach the MAIN Unit .
3. Remove the 2 lock shafts , 1 lock nut and detach the Terminal Angle (Bottom) .
4. Remove the 2 lock shafts and detach the Terminal Angle (Side) .
5. Remove the 6 lock screws and detach the POWER Unit .
6. Detach the Insulation Sheet (POWER) .
HDMI CONVERTER Unit
MAIN Unit
POWER Unit
12
3
8
10
11
1
2
3
7
5
6
3
4
9
Terminal Angle
(Side)
Terminal Angle
(Bottom)
Insulation Sheet (POWER)
