iv) Peel the protective sheet of the OCA.
Lift the ITO section, then peel the protective sheet by about half by means of the pull tap.
v) Contact the FPCB and joint end of the transparent electrode film with the glass.
* Grasp the opposite end. Note that the ITO is positioned by adhering.
vi) Adhere the transparent electrode completely.

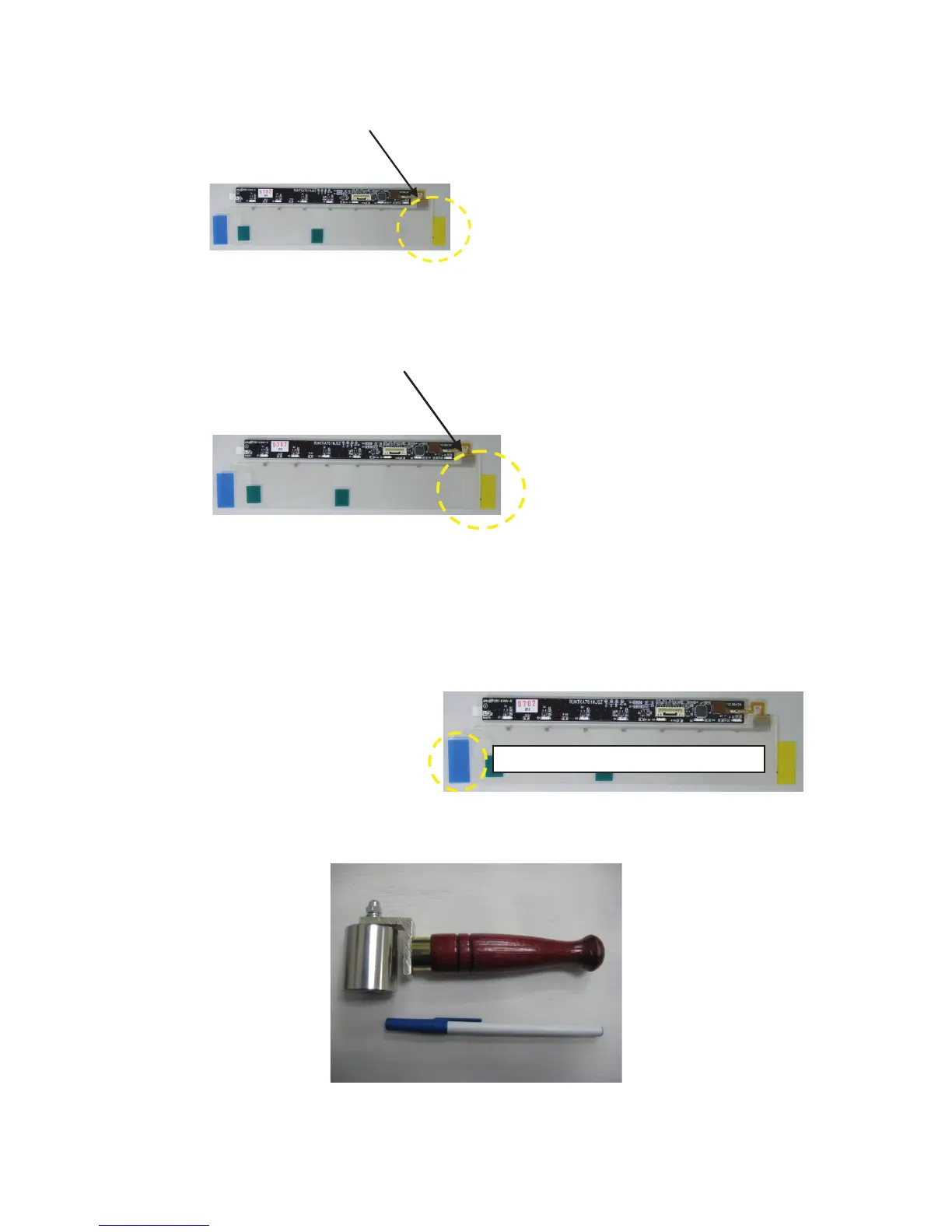

• Use a rubber roller since pressure exerted by it removes bubbles easily. See photo below.
• For the TOUCH SENSOR KEY Unit positioning figure, see page 5-1.
* Peeling it completely reduces workability.
Check the order due to workability.
*Note: Do not bend the PWB (FPCB section)
and sheet (ITO section).
Pull tap for peeling the front protective sheet
Peel the front protective sheet.
If bubbles are found, press those portions with glass
cleaning cloth, etc. to remove them as much as possible.

Sharp LC-60LE822E Specifications

General

Power supply type	AC
Power consumption (standby)	0.20 W
Power consumption (typical)	100 W
Child lock	No
Plug and Play	Yes
Audio formats supported	AAC
Video formats supported	H.264, MPEG4
Display diagonal	60 \
Display technology	LCD
Native aspect ratio	16:9
Native refresh rate	100 Hz
Viewing angle, horizontal	176 °
Internal memory	8000 MB
Audio (L/R) in	0
HDMI ports quantity	4
SCART ports quantity	1
Product color	Black
LED indicators	Stand-by
Panel mounting interface	400 x 400 mm
Remote control type	GA841WJSA
RMS rated power	20 W
Number of speakers	2
Tuner type	Analog & digital
Analog signal format system	NTSC, PAL, SECAM

Weight and Dimensions

Depth (with stand)	368 mm
Width (with stand)	1439 mm
Height (with stand)	975 mm
Weight (with stand)	51000 g
Depth (without stand)	40 mm
Height (without stand)	913 mm
