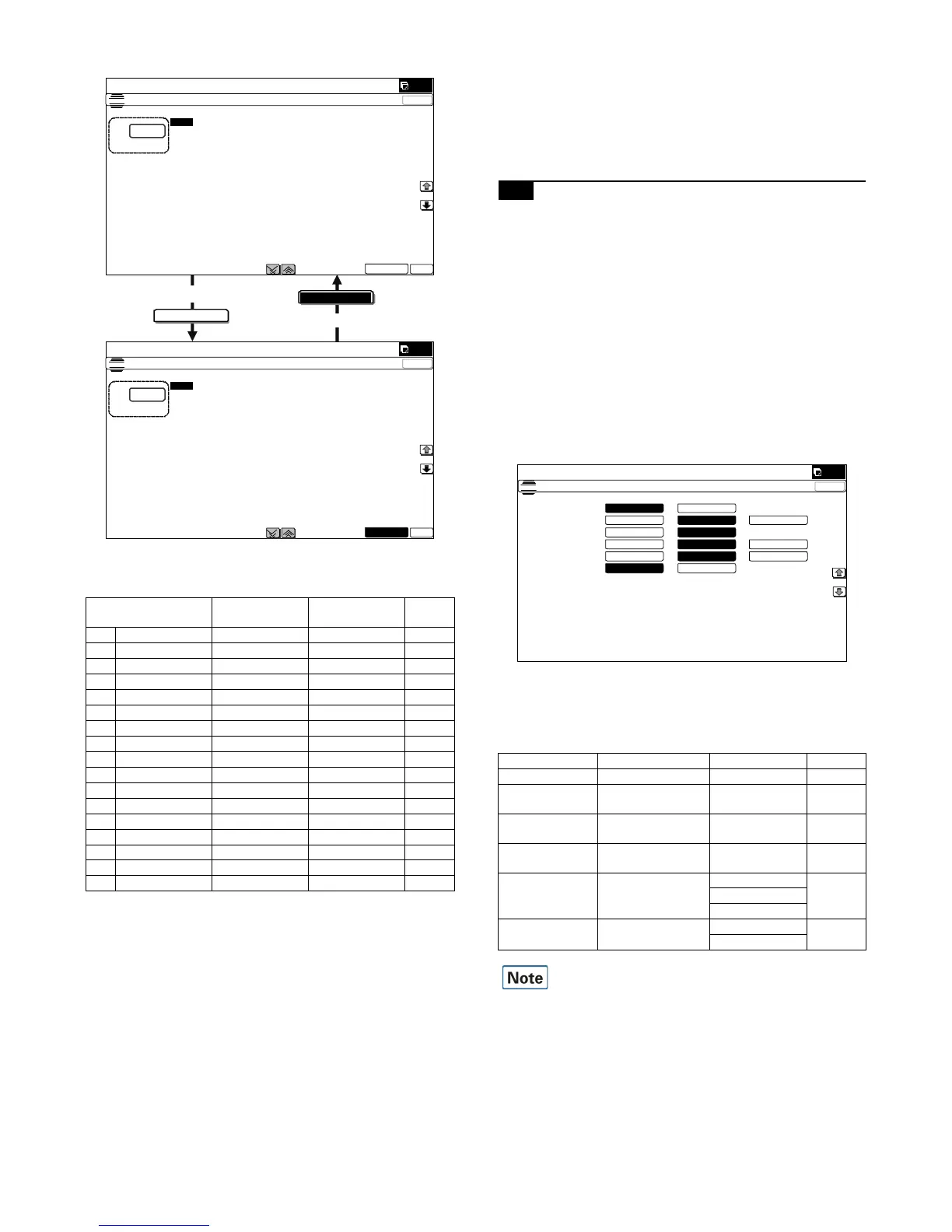

MX-3610N ADJUSTMENTS AND SETTINGS 4 – 53
1) Enter the SIM 46-16 mode.
2) Select the density level (point) to be adjusted with the scroll
key.
3) Enter the adjustment value with 10-key and press [OK] key.
When the adjustment value is increased, the density is
increased. When the adjustment value is decreased, the den-
sity is decreased.
When the arrow key is pressed, the densities are collectively
adjusted.
That is, all the density levels (points) from the low density point
to the high density point can be adjusted collectively.
When [EXECUTE] key is pressed, the adjustment pattern is
printed out.
The density at each density level (point) can be checked by
referring to this printed adjustment pattern. However, it is more
practical to make a copy and check it.
This adjustment pattern can be used to check the color bal-
ance and the density for each density level (point).
4) Make a copy and check the adjustment result.
Switch the adjustment simulation mode and the normal copy
mode alternately, and adjust and check the adjustment result.
Repeat switching the adjustment simulation mode and the normal
copy mode and changing the adjustment value and checking the
copy until a satisfactory result is obtained.
10-D (5)
Automatic monochrome (Copy/Scan/FAX)
mode document density scanning
operation (exposure operation) conditions
setting (Normally no need to set)
Use for setting the condition of read operation (Exposure) for docu-
ment density in monochrome auto copy mode.
When a copy with correct density is not obtained by type of docu-
ment, change the setting.
This setting is required in the following cases.
* When a proper density copy is not obtained in the monochrome
automatic copy mode.
* When a document with images near its lead edge is copied.
* When a document with colored background is copied.
1) Enter the SIM 46-19 mode.
2) Set REALTIME, STOP or PRE-SCAN to adjustment item AE
STOP COPY. For contents of each setting item, refer to below.
Change the setting value of "AE WIDTH" item to "FULL" or
"PART", in some cases.
MODE1: High gamma (Improves the image contrast)
MODE2: Normal gamma
STOP:
Reads the density of 3 - 7 mm area from leading edge of document,
decides the output image density according to the density of that
part. (The output image density is constant at whole area.)
REALTIME:
Reads the density of width of the document one by one, decides
the output image density according to the density of each part of
the document. (The output image density may be not constant at
whole area.)
Item/Display
Density level
(Point)
Adjustment
value range
Default
A POINT1 Point 1 1 - 999 500
B POINT2 Point 2 1 - 999 500
C POINT3 Point 3 1 - 999 500
D POINT4 Point 4 1 - 999 500
E POINT5 Point 5 1 - 999 500
F POINT6 Point 6 1 - 999 500
G POINT7 Point 7 1 - 999 500
H POINT8 Point 8 1 - 999 500
I POINT9 Point 9 1 - 999 500
J POINT10 Point 10 1 - 999 500
K POINT11 Point 11 1 - 999 500
L POINT12 Point 12 1 - 999 500
M POINT13 Point 13 1 - 999 500
N POINT14 Point 14 1 - 999 500
O POINT15 Point 15 1 - 999 500
P POINT16 Point 16 1 - 999 500
Q POINT17 Point 17 1 - 999 500
To Next Page
