MX-3610N EXTERNAL VIEW AND INTERNAL STRUCTURE 3 – 5

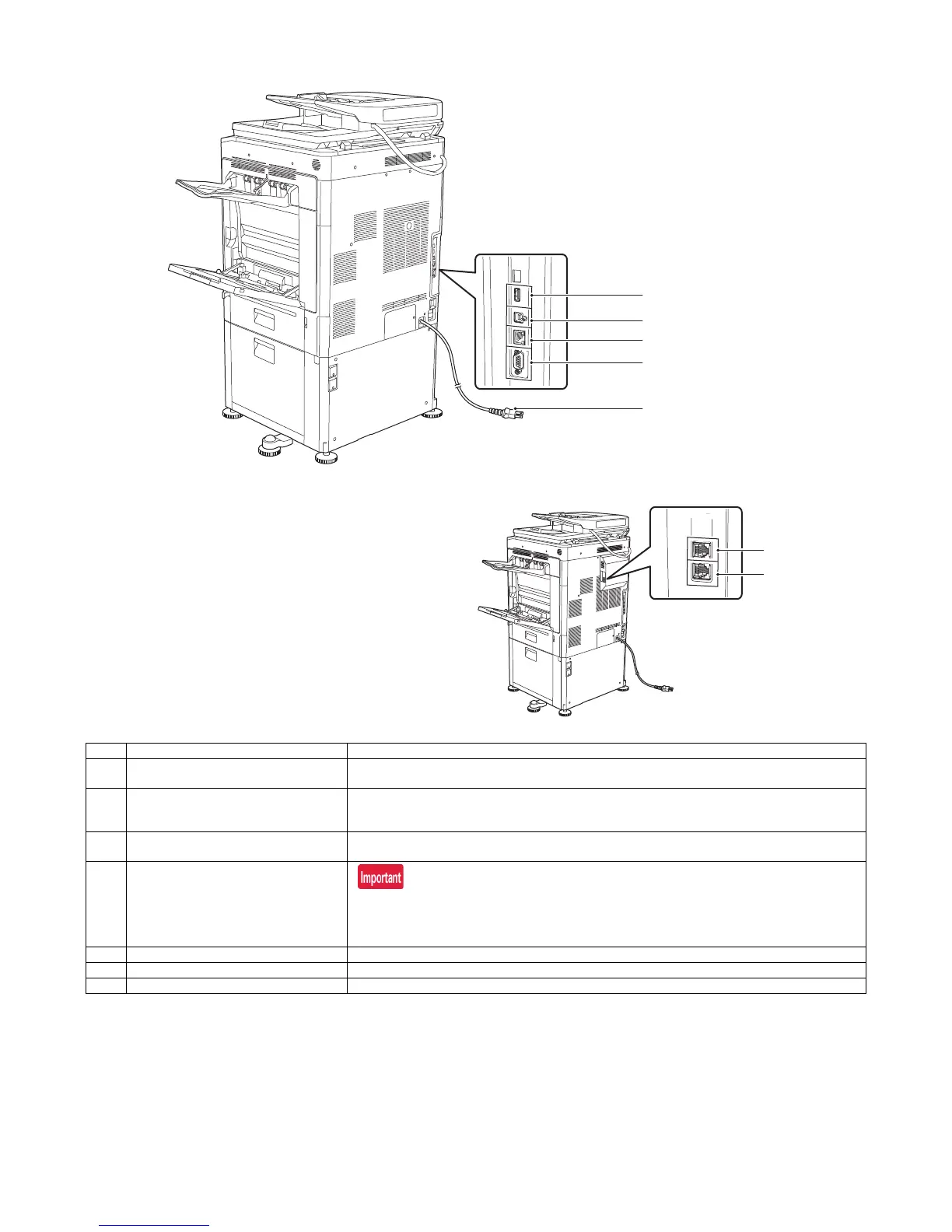

3. I/F connectors
No. Name Function/Operation
1 USB connector (A type) Supports USB 2.0 (Hi-Speed).
This is used to connect a USB device such as USB memory to the machine.
2 USB connector (B type) Supports USB 2.0 (Hi-Speed).
A computer can be connected to this connector to use the machine as a printer.
For the USB cable, use a shielded cable.
3 LAN connector Connect the LAN cable to this connector when the machine is used on a network.
For the LAN cable, use a shielded type cable.
4 Service-only connector
This connector is for use only by service technicians.
Connecting a cable to this connector may cause the machine to malfunction.
Important note for service technicians:
The cable connected to the service connector must be less than 3 m (118") in length.
5 Power plug
6 Extension phone socket When the fax function of the machine is used, an extension phone can be connected to this socket.
7 Telephone line socket When the fax function of the machine is used, the telephone line is connected to this socket.
To Next Page
