MX-3610N EXTERNAL VIEW AND INTERNAL STRUCTURE 3 – 4

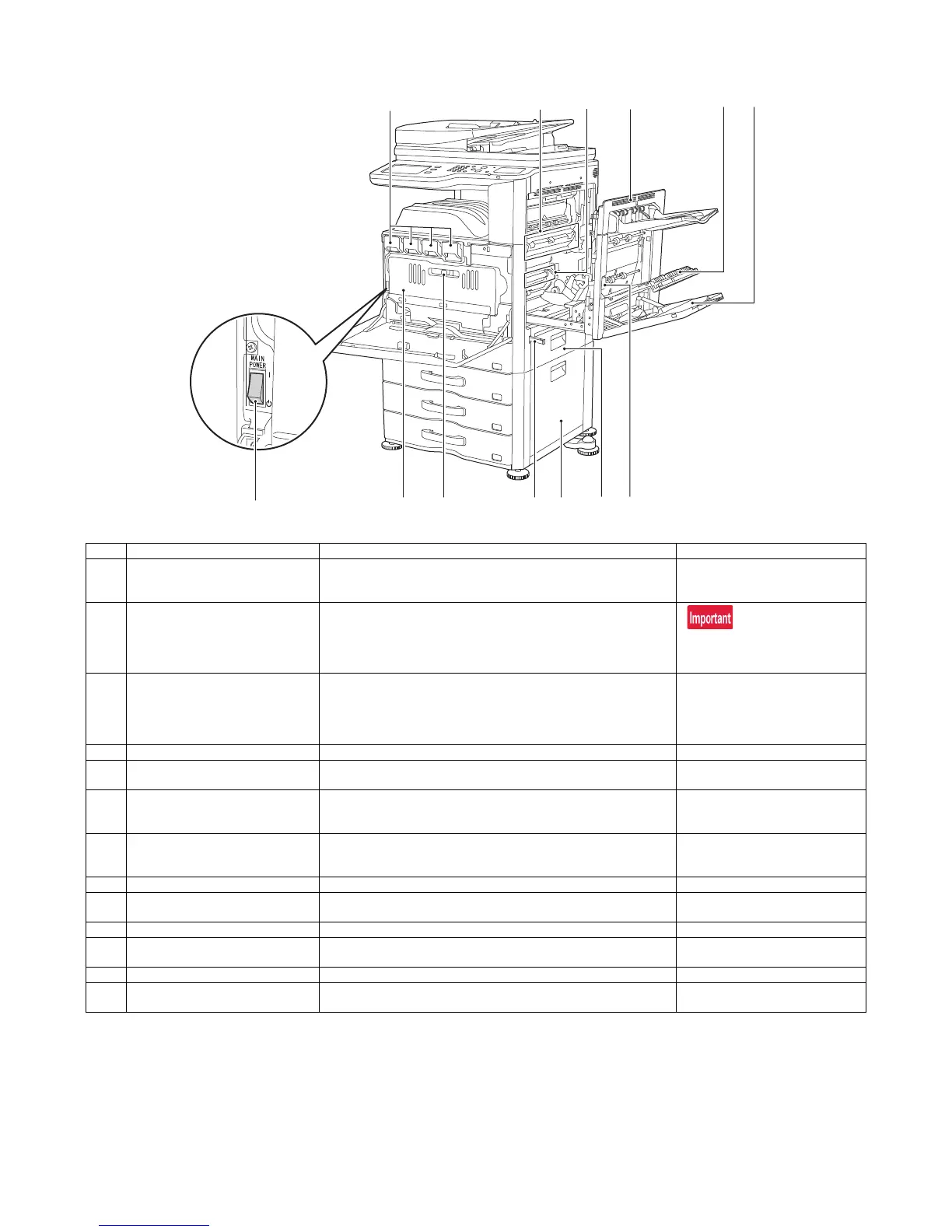

2. Internal structure
No. Name Function/Operation Note
1 Toner cartridges These contain toner for printing.
When the toner runs out in a cartridge, the cartridge of the color that ran
out must be replaced.
2 Fusing unit Heat is applied here to fuse the transferred image onto the paper.
The fusing unit is hot. Take care not
to burn yourself when removing a
paper misfeed.
3 Transfer belt During full color printing, the toner images of each of the four colors on
each of the photoconductive drums are combined together on the
transfer belt.
During black and white printing, only the black toner image is transferred
onto the transfer belt.
Do not touch or damage the transfer
belt. This may cause a defective
image.
4 Right side cover Open this cover to remove a misfeed.
5 Paper reversing section cover This is used when 2-sided printing is performed. Open this cover to
remove a paper misfeed.
6 Bypass tray Use this tray to feed paper manually.
When loading a large sheet of paper, be sure to pull out the bypass tray
extension.
7 Main power switch This is used to power on the machine.
When using the fax or Internet fax functions, keep this switch in the "on"
position.
8 Waste toner box This collects excess toner that remains after printing.
9 Waste toner box release lever Move this lever when you need to release the waste toner box lock to
replace the waste toner box or clean the laser unit.
10 Handle Pull this out and grasp it when moving the machine.
11 Right cover of paper drawer
(when a paper drawer is installed)
Open this to remove a paper misfeed in tray 2, tray 3 or tray 4.
12 Paper tray right side cover Open this to remove a paper misfeed in tray 1.
13 Right side cover release lever To remove a paper misfeed, pull and hold this lever up to
open the right side cover.
