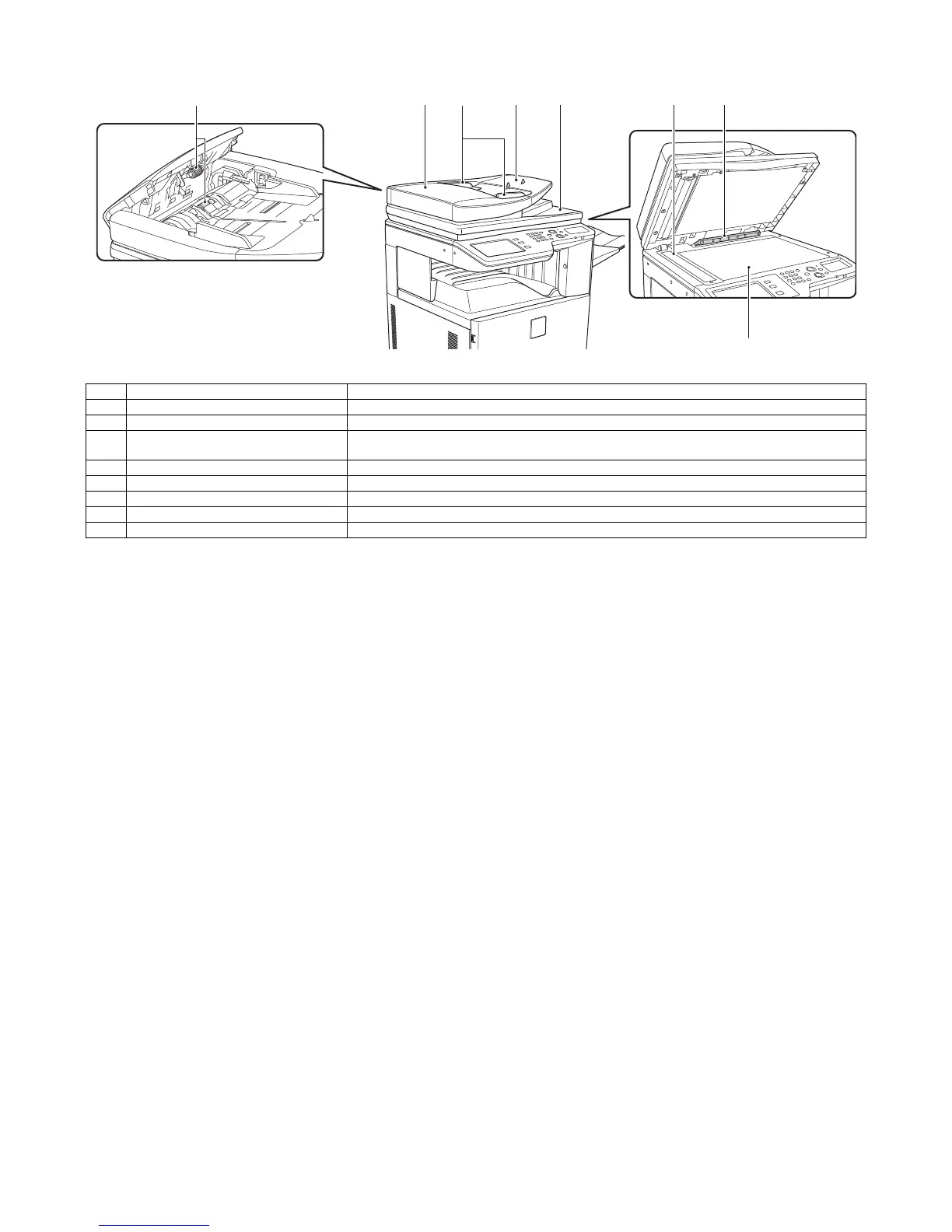

MX-3610N EXTERNAL VIEW AND INTERNAL STRUCTURE 3 – 3
C. Automatic document feeder and document glass
No. Name Function/Operation
1 Paper feed roller This roller rotates to automatically feed the original.
2 Document feeding area cover Open this cover to remove an original misfeed or clean the paper feed roller.
3 Original guides These help ensure that the original is scanned correctly.
Adjust the guides to the width of the original.
4 Document feeder tray Place originals in this tray. 1-sided originals must be placed face up.
5 Original exit tray Originals are delivered to this tray after scanning.
6 Scanning area Originals placed in the document feeder tray are scanned here.
7 Original size detector This detects the size of an original placed on the document glass.
8 Document glass Use this to scan a book or other thick original that cannot be fed through the automatic document feeder.
(1)
(2) (3) (5)
(7)
(4)
(6)
(8)
