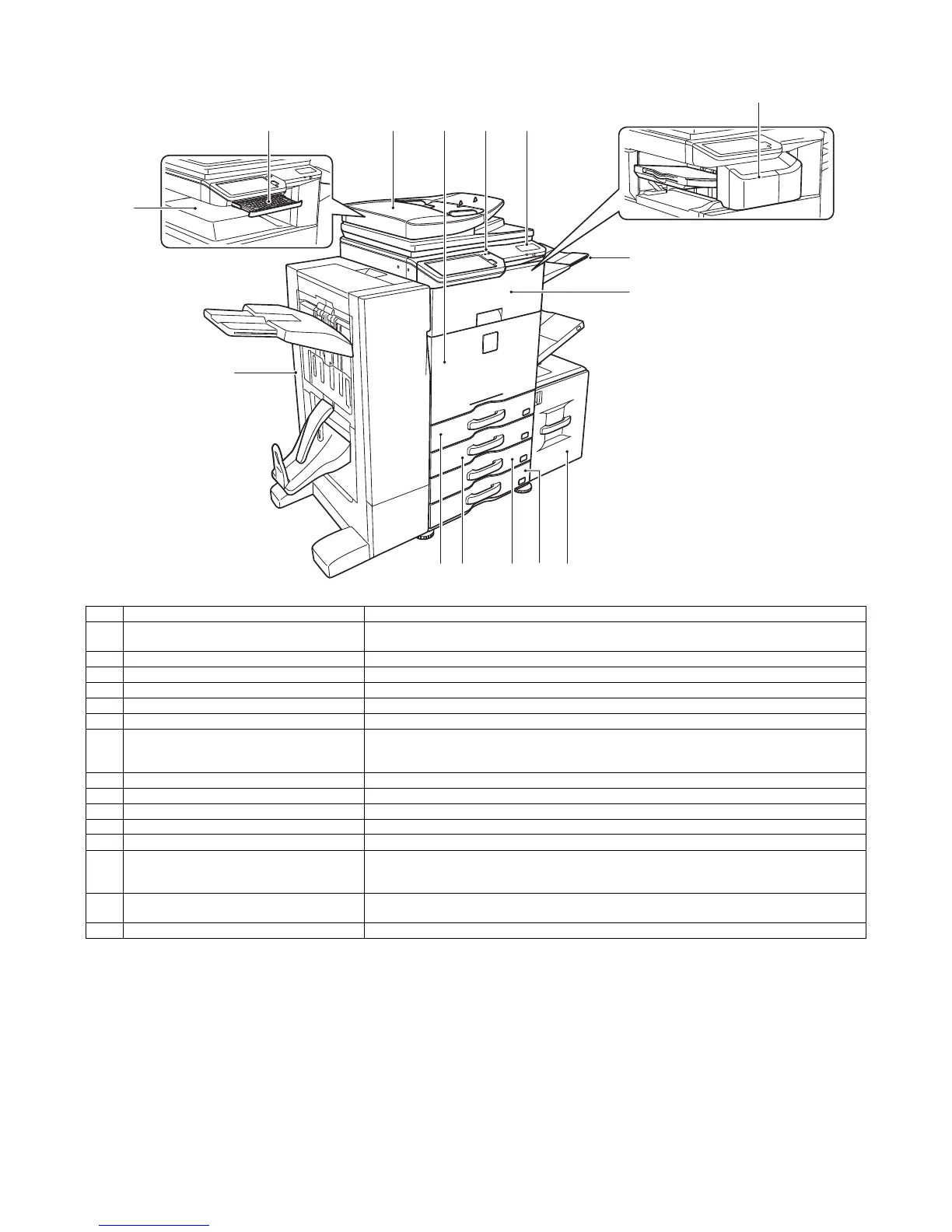

MX-3610N EXTERNAL VIEW AND INTERNAL STRUCTURE 3 – 2
B. 26cpm/36cpm/31cpm(A) machine
* Peripheral device.
No. Name Function/Operation
1 Reversing single pass feeder This automatically feeds and scans multiple originals.
Both sides of 2-sided originals can be automatically scanned.
2 Front cover Open this cover to switch the main power switch to "On" or "Off" or to replace a toner cartridge.
3 Output tray (center tray) Output is delivered to this tray.
4 Operation panel This is used to select functions and enter the number of copies.
5 Exit tray unit (right exit tray)* When installed, output can be delivered to this tray.
6 Finisher* This can be used to staple output. A punch module can also be installed to punch holes in output.
7 USB connector (A type) Supports USB 2.0 (Hi-Speed).
This is used to connect a USB device such as USB memory to the machine.
For the USB cable, use a shielded cable.
8 Tray 1 This holds paper.
9 Tray 2 (when a paper drawer is installed)* This holds paper.
10 Tray 3 (when a paper drawer is installed)* This holds paper.
11 Tray 4 (when a paper drawer is installed)* This holds paper.
12 Tray 5 (when a large capacity tray is installed)* This holds paper.
13 Saddle stitch finisher* This can be used to staple output. The saddle stitch function for folding and stapling output and the fold
function for folding output in half are also available.
A punch module can also be installed to punch holes in output.
14 Keyboard* This is a keyboard that is incorporated into the machine. When not used, it can be stored under the
operation panel.
15 Paper pass unit* Transports paper to the finisher.
