MX-3610N EXTERNAL VIEW AND INTERNAL STRUCTURE 3 – 17

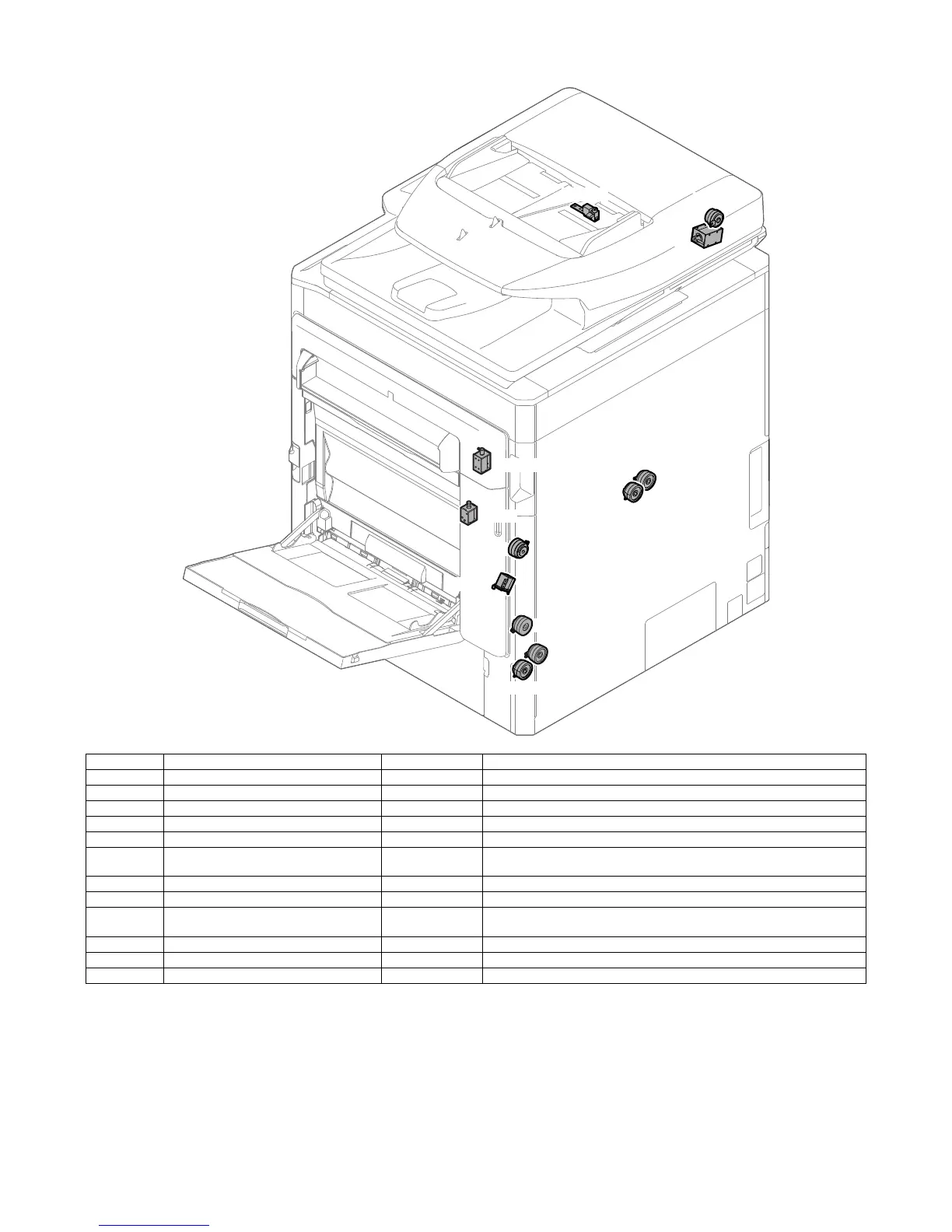

B. 36cpm machine
Signal name Name Type Function/Operation
1TURC_1 Primary transfer separation clutch 1 Magnetic clutch Controls separation of the primary transfer unit.
1TURC_2 Primary transfer separation clutch 2 Magnetic clutch Controls separation of the primary transfer unit.
2TURC Secondary transfer separation clutch Magnetic clutch Controls separation of the secondary transfer unit.
ADUGS ADU gate solenoid Magnetic solenoid Controls the paper exit gate.
CPFC1 Tray vertical transport clutch 1 Magnetic clutch Controls the transport roller of the paper feed tray 1 section.
CPUC1 Paper feed clutch (Paper feed tray 1) Magnetic clutch Controls ON/OFF of the paper feed roller in the paper feed tray 1 section.
(Paper feed tray 1)
MPFS Paper feed solenoid (Manual paper feed) Magnetic solenoid Controls the paper feed roller. (Manual paper feed)
PFC_HPFC Transport roller clutch Magnetic clutch Controls the transport roller 4.
SPRS Paper exit roller pressure control solenoid
(RSPF)
Magnetic solenoid Controls ON/OFF of the transport power of the paper exit roller. (Releases the
paper exit roller pressure when reversing paper.)
SRRC Registration roller clutch (RSPF) Magnetic clutch Controls the registration roller. (Controls the timing of document transport.)
STMPS Stamp solenoid Magnetic solenoid Drives the finish stamp.
WEBS Web drive solenoid Magnetic solenoid Drives the web.
