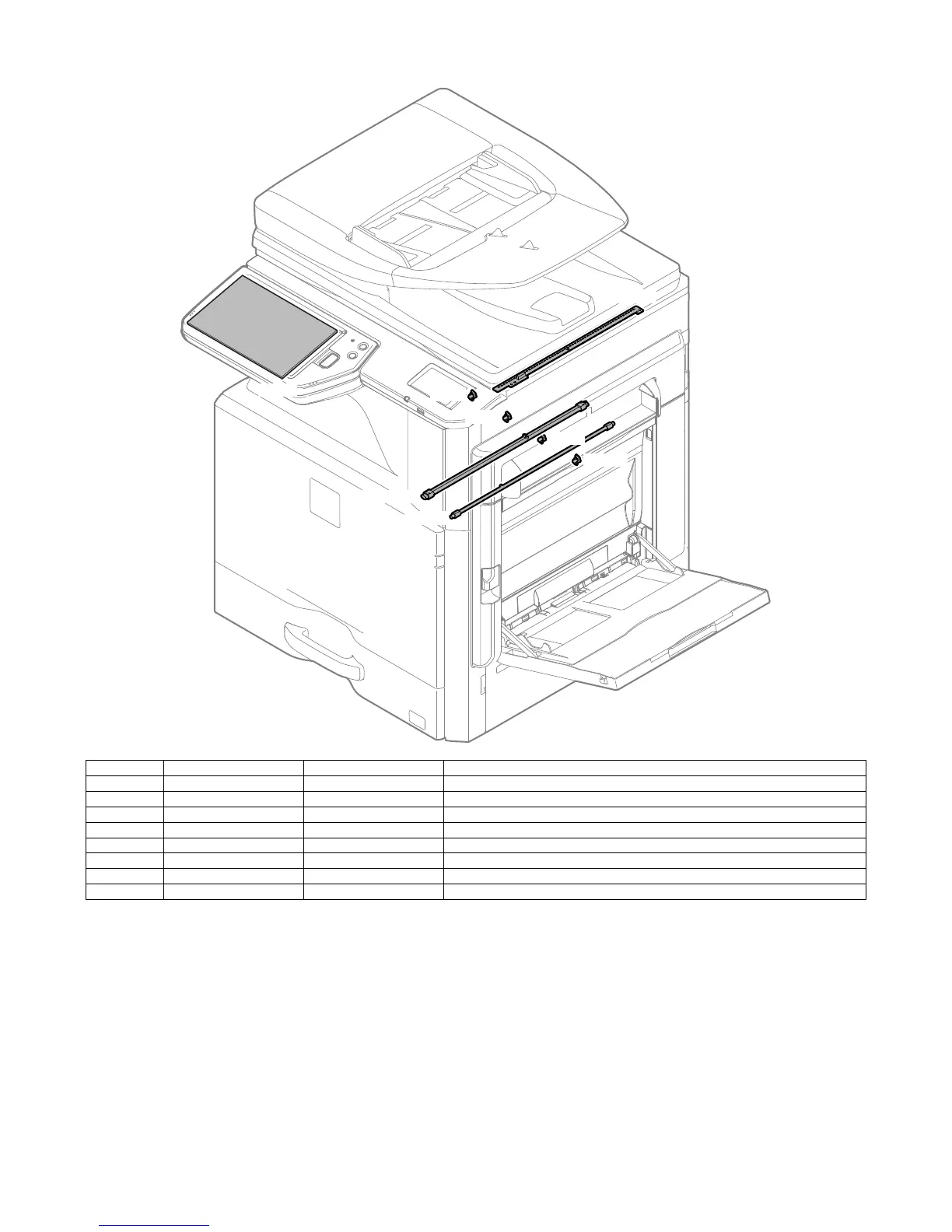

MX-3610N EXTERNAL VIEW AND INTERNAL STRUCTURE 3 – 28
B. 26cpm/36cpm/31cpm(A) machine
Signal name Name Type Function/Operation
CCFT LCD backlight LED LCD backlight
CL_ON Scanner lamp LED Radiates light onto a document for the CCD to scan the document image.
DL_BK Discharge lamp (K) LED Discharges electric charges on the OPC drum (K).
DL_C Discharge lamp (C) LED Discharges electric charges on the OPC drum (C).
DL_M Discharge lamp (M) LED Discharges electric charges on the OPC drum (M).
DL_Y Discharge lamp (Y) LED Discharges electric charges on the OPC drum (Y).
HL_LM Heater lamp (HL_LM) Halogen lamp Heats the fusing roller (B).
HL_UM/US Heater lamp (HL_UM/US) Halogen lamp Heats the fusing roller (F1) and the fusing belt.
CL_ON
CCFT
DL_Y
DL_C
HL_LM
HL_UM/US
DL_M
DL_BK
