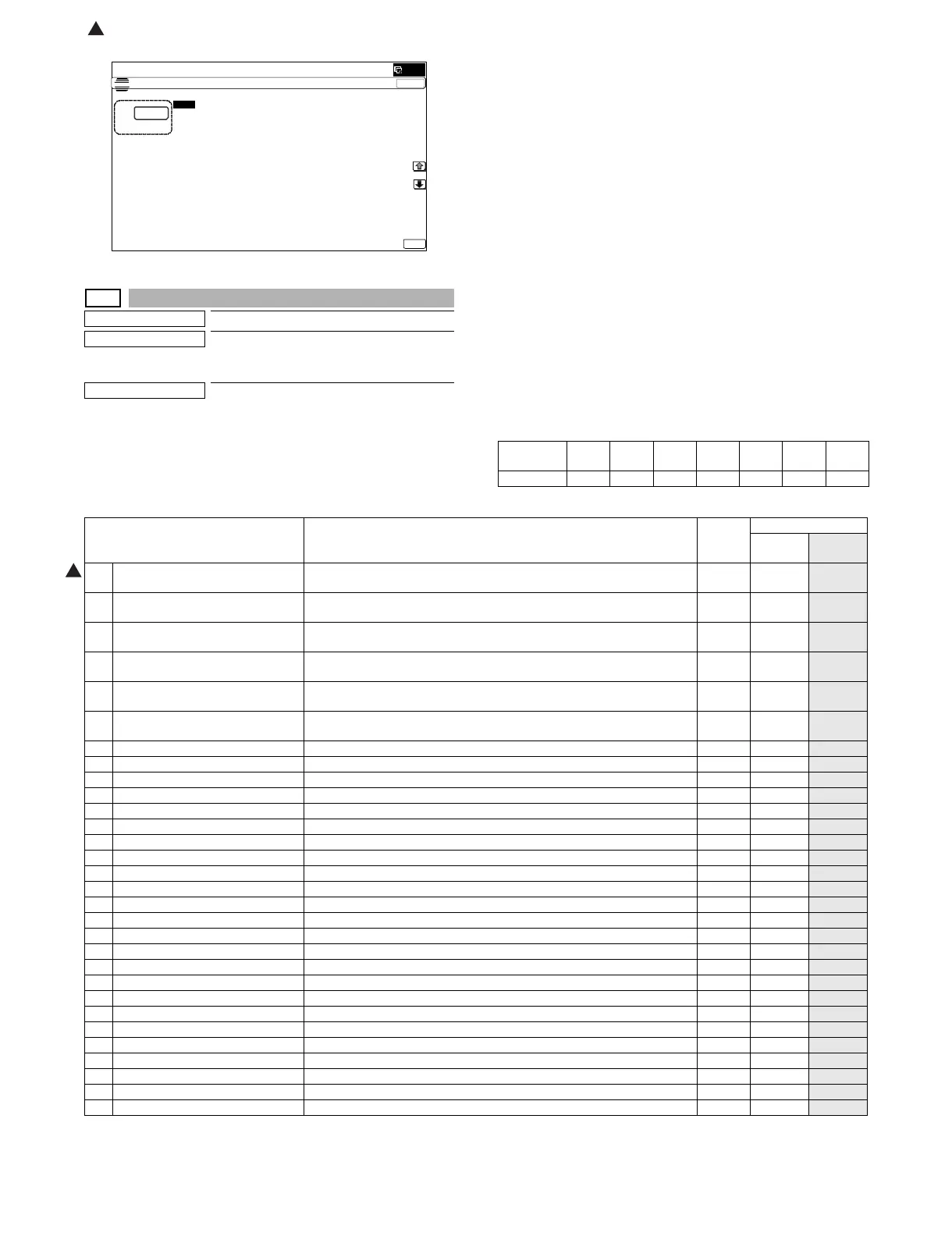

MX-5001N SIMULATION 6 – 61
43-24
Purpose
Adjustment/Setup
Function (Purpose)
Used to set the correction of the tempera-
ture adjustment value of SIM 43-1 and 43-
4.
Section
Operation/Procedure
1) Select an item to be set with [↑] [↓] keys.
2) Enter the set value with 10-key.
3) Press [OK] key.
The set value in step 2 is saved.
Correction value: -49 - +49, 1 Count = 1°C Change
* Each temperature correction value: 1 count for 1°C change in temperature control
* Each paper exit count: 1 count = 1 sheet change
* Each cool down time: 1 count = 1sec change
ǂǂǂ6,08/$7,21ǂǂ12
&/26(
7(67
)86(57(03$'-8670(17++'83



$˖
˷˹
˖+/B803/$,1%:'83++
$˖
˖+/B/03/$,1%:'83++
%˖
˖+/B(3/$,1%:'83++
&˖
˖3/$,1%:'83$33&17++
'˖
˖+/B/03/$,1&/'83++
)˖
˖+/B803/$,1&/'83++
(˖
˖+/B(3/$,1&/'83++
*˖
˖3/$,1&/'83$33&17++
+˖
˖+/B80+($9<%:'83++
,˖
˖+/B/0+($9<%:'83++
-˖
˖+/B(+($9<%:'83++
.˖
˖+($9<%:'83$33ǂ&17++
/˖
2.
Correction
value
-49 -25 -5 0 5 25 49
Input value 1 25 45 50 55 75 99
1
Item/Display Content
Setting
range
Default value
41-sheet
machine
50-sheet
machine
A NN_120_FUS_DUP_HL_UM&HL_E Fusing temperature correction value NN environment power rising at less than
120°C common to item HL_UM and item HL_E
1 - 99 50
50
B NN_120_FUS_DUP_HL_LM Fusing temperature correction value NN environment power rising at less than
120°C item HL_LM
1 - 99 50
50
C LL_120_FUS_DUP_HL_UM&HL_E Fusing temperature correction value LL environment power rising at less than
120°C common to item HL_UM and item HL_E
1 - 99 50
50
D LL_120_FUS_DUP_HL_LM Fusing temperature correction value LL environment power rising at less than
120°C item HL_LM
1 - 99 50
50
E HH_120_FUS_DUP_HL_UM&HL_E Fusing temperature correction value HH environment power rising at less than
120°C common to item HL_UM and item HL_E
1 - 99 50
50
F HH_120_FUS_DUP_HL_LM Fusing temperature correction value HH environment power rising at less than
120°C item HL_LM
1 - 99 50
50
G NN_120_FUS_DUP_CNT Fusing duplex paper exit count under NN environment 1 - 60 5
5
H LL_120_FUS_DUP_CNT Fusing duplex paper exit count under LL environment 1 - 60 10
10
I HH_120_FUS_DUP_CNT Fusing duplex paper exit count under HH environment 1 - 60 5
5
J COOL_DOWN_HEAVY Cool down time heavy paper 1 - 60 15
15
K COOL_DOWN_OHP Cool down time OHP 1 - 60 30
30
L COOL_DOWN_DEVELOP Cool down time envelope 1 - 60 40
40
M FUS MOTOR Fusing web motor operating interval 1 - 20 6
6
N NN_120_WUP_COMP_TH_E Correction value for SIM43-4-C, G at 120°C or below in N/N WarmUp 1 - 99 50
50
O LL_120_WUP_COMP_TH_E Correction value for SIM43-22-C, G at 120°C or below in L/L WarmUp 1 - 99 50
50
P HH_120_WUP_COMP_TH_E Correction value for SIM43-23-C, G at 120°C or below in H/H WarmUp 1 - 99 50
50
Q HL UM THIN PAPER BW Thin paper BW-TH_UM 70 - 230 165
165
R HL LM THIN PAPER BW Thin paper BW-TH_LM 30 - 200 120
120
S HL E THIN PAPER BW Thin paper BW-TH_E 70 - 230 195
195
T HL UM THIN PAPER CL Thin paper COL-TH_UM 70 - 230 165
165
U HL LM THIN PAPER CL Thin paper COL-TH_LM 30 - 200 120
120
V HL E THIN PAPER CL Thin paper COL-TH_E 70 - 230 195
195
W HL UM THIN PAPER READY Thin paper Ready-TH_UM 70 - 230 170
170
X HL UM REC PAPER BW Recycled paper BW-TH_UM 70 - 230 185
185
Y HL LM REC PAPER BW Recycled paper BW-TH_LM 30 - 200 125
125
Z HL E REC PAPER BW Recycled paper BW-TH_E 70 - 230 220
220
AA HL UM REC PAPER CL Recycled paper COL-TH_UM 70 - 230 185
185
AB HL LM REC PAPER CL Recycled paper COL-TH_LM 30 - 200 130
130
AC HL E REC PAPER CL Recycled paper COL-TH_E 70 - 230 220
220
AD HL UM REC PAPER READY Recycled paper Ready-TH_UM 70 - 230 180
180
