MX-5001N DRIVE SECTION O – 1
MX-5001N
Service Manual
[O] DRIVE SECTION
1. Disassembly and assembly

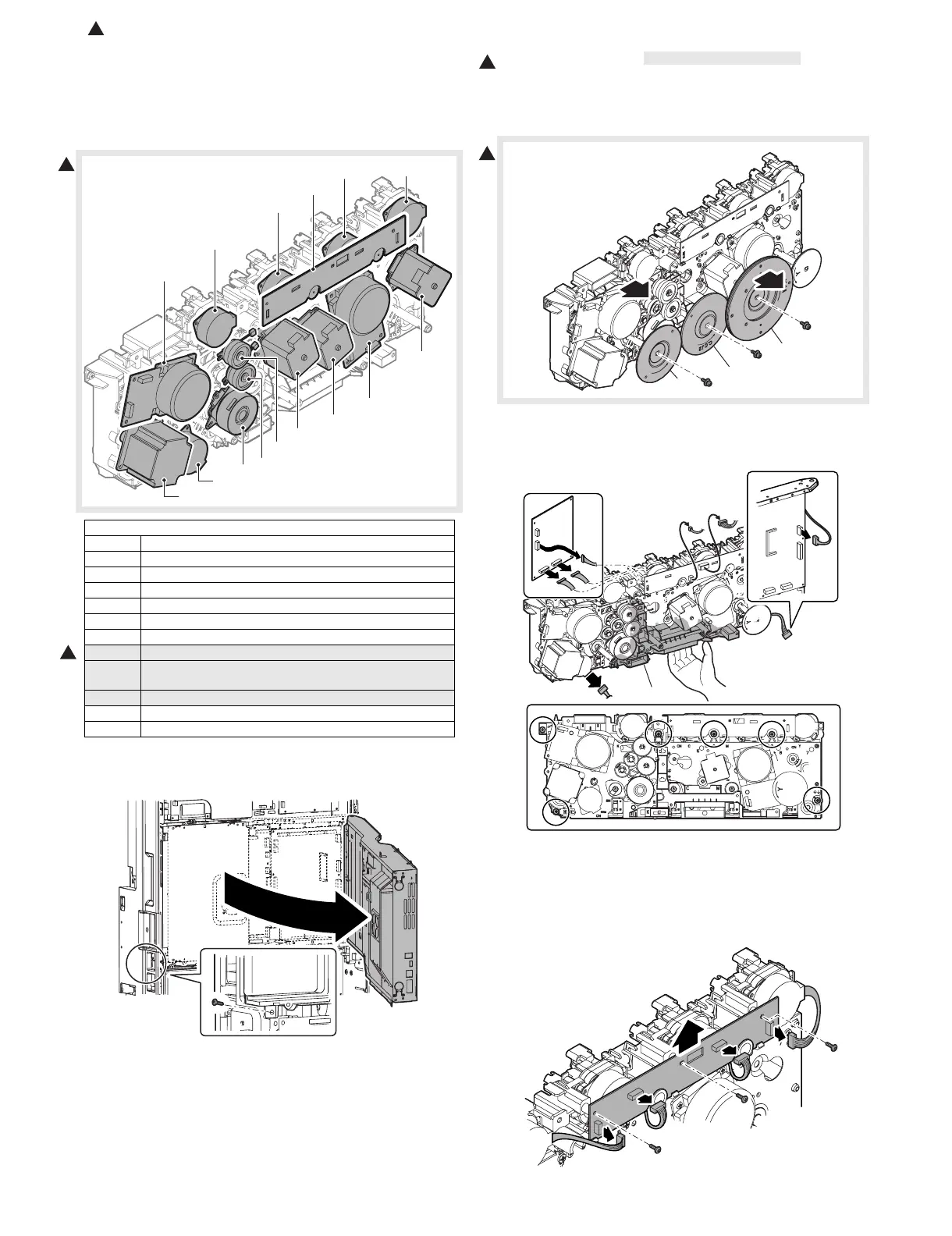

A. Main drive unit
1) Remove the rear cabinet.
2) Remove the screw, and open the control box.
3) Remove the flywheel. (BK: 50-sheet machine only)
* Installing sequence: (1)C (2) KM
(Engraved mark for each color)
* After installing, check to confirm that it is not in contact with
the harness.
4) Disconnect the connector and remove the screw, and remove
the main drive unit.
* Hold section A and remove.
(1) TM drive PWB/Toner motor
1) Remove the rear cabinet.
2) Open the control box.
3) Disconnect the connector and remove the screw, and remove
the TM dive PWB.
Parts
aTM drive PWB
b Toner motor
c Developing drive motor (K)
d Developing drive motor (CL)
e Resist motor
f Transfer belt motor
g BK drum motor
h C drum motor (50-sheet machine)
i CL drum motor (40-sheet machine) /
M drum motor (50-sheet machine)
j Y drum motor (50-sheet machine)
k Primary transfer separation clutch
l Primary transfer separation reverse rotation clutch
1
a
b
b
b
b
c
e
f
g
k
l
d
j
i
h
1
1
1
C
BK
KM
A
