Sharp MX-5001N - EXTERNAL VIEW AND INTERNAL STRUCTURE; 1. Identification of each section and functions; A. External view

MX-5001N EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 1
MX-5001N
Service Manual
[4] EXTERNAL VIEW AND INTERNAL STRUCTURE
1. Identification of each section and functions

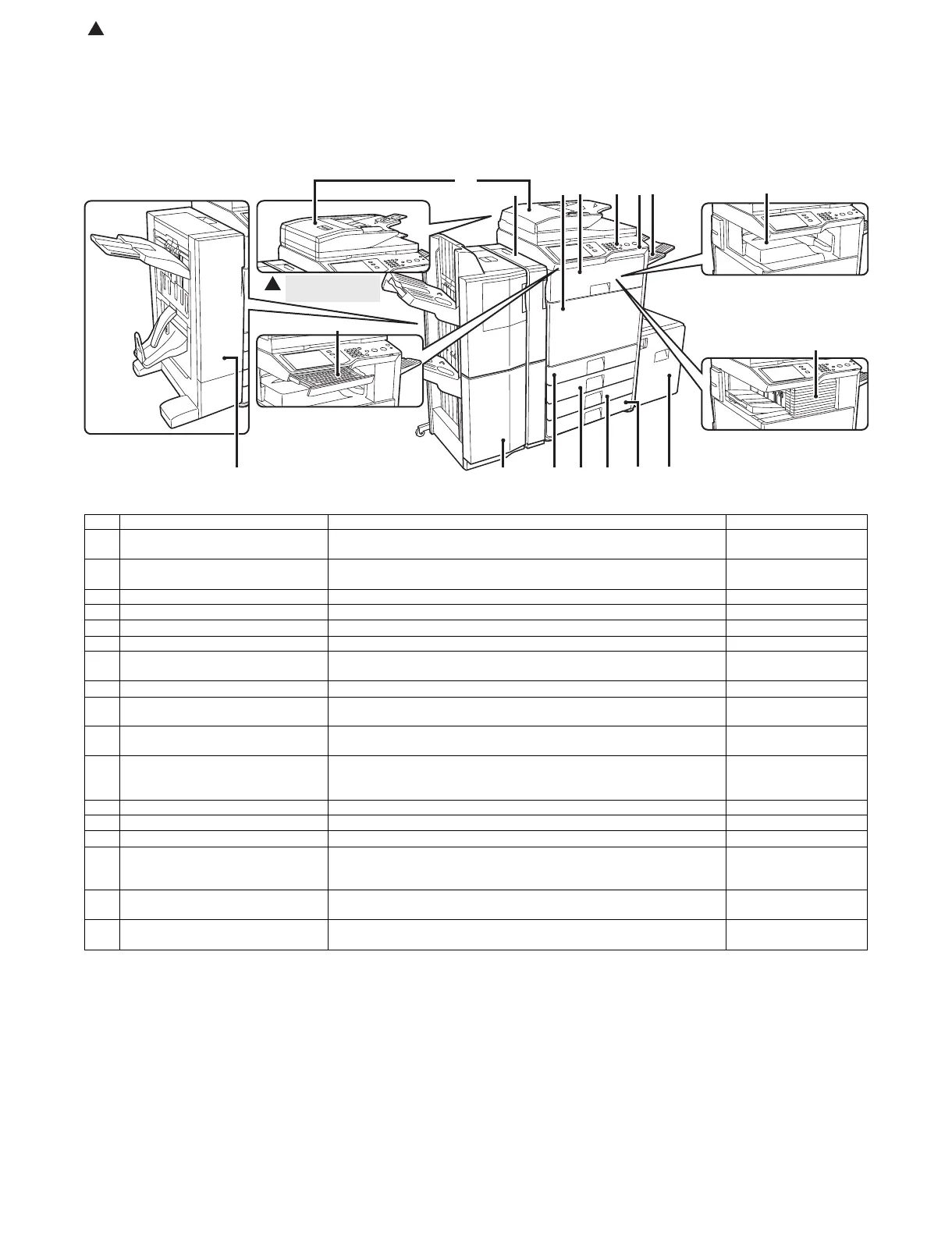

A. External view
*: Peripheral device.
No. Name Function/Operation NOTE
1 Automatic document feeder This automatically feeds and scans multiple originals. Both sides of 2-sided
originals can be automatically scanned.
2 Front cover Open this cover to switch the main power switch to "On" or "Off" or to replace a
toner cartridge.
3 Paper pass unit* This transfers output to the finisher (large capacity) or the saddle stitch finisher.
4 Operation panel This is used to select functions and enter the number of copies.
5 Right tray* When installed, output can be delivered to this tray.
6 Output tray (center tray) Output is delivered to this tray.
7 Finisher* This can be used to staple output. A punch module can also be installed to
punch holes in output.
8 Punch module This is used to punch holes in output. Requires the finisher (large capacity).
9 USB connector (A type) Supports USB 2.0 (Hi-Speed). This is used to connect a USB device such as
USB memory to the machine. For the USB cable, use a shielded cable.
10 Keyboard* This is a keyboard that is incorporated into the machine. When not used, it can
be stored under the operation panel.
11 Saddle stitch finisher* This can be used to staple output. The saddle stitch function for folding and
stapling output and the fold function for folding output in half are also available.
A punch module can also be installed to punch holes in output.
12 Finisher (large capacity)* This can be used to staple output.
13 Tray 1 This holds paper.
14 Tray 2 This holds paper.
15 Tray 3 (when a stand/1 x 500 sheet
paper drawer or a stand/2 x 500 sheet
paper drawer is installed)*
This holds paper.
16 Tray 4 (when a stand/2 x 500 sheet
paper drawer is installed)*
This holds paper.
17 Tray 5 (when a large capacity tray is
installed)*
This holds paper.
(1)
(2) (3)
(6)
(7)
(5)(4)
When a finisher / saddle
stitch finisher is not installed.
When a finisher is installed.
(9)(8)
(10)
When a keyboard
is installed.
When a Saddle stitch finisher
is installed.
(12) (14)(13) (17)(15) (16)(11)
When using the
MX-4101N/5001N.
1
: Oct. 24 2008
