MX-5001N PAPER FEED SECTION F – 9
C. Others

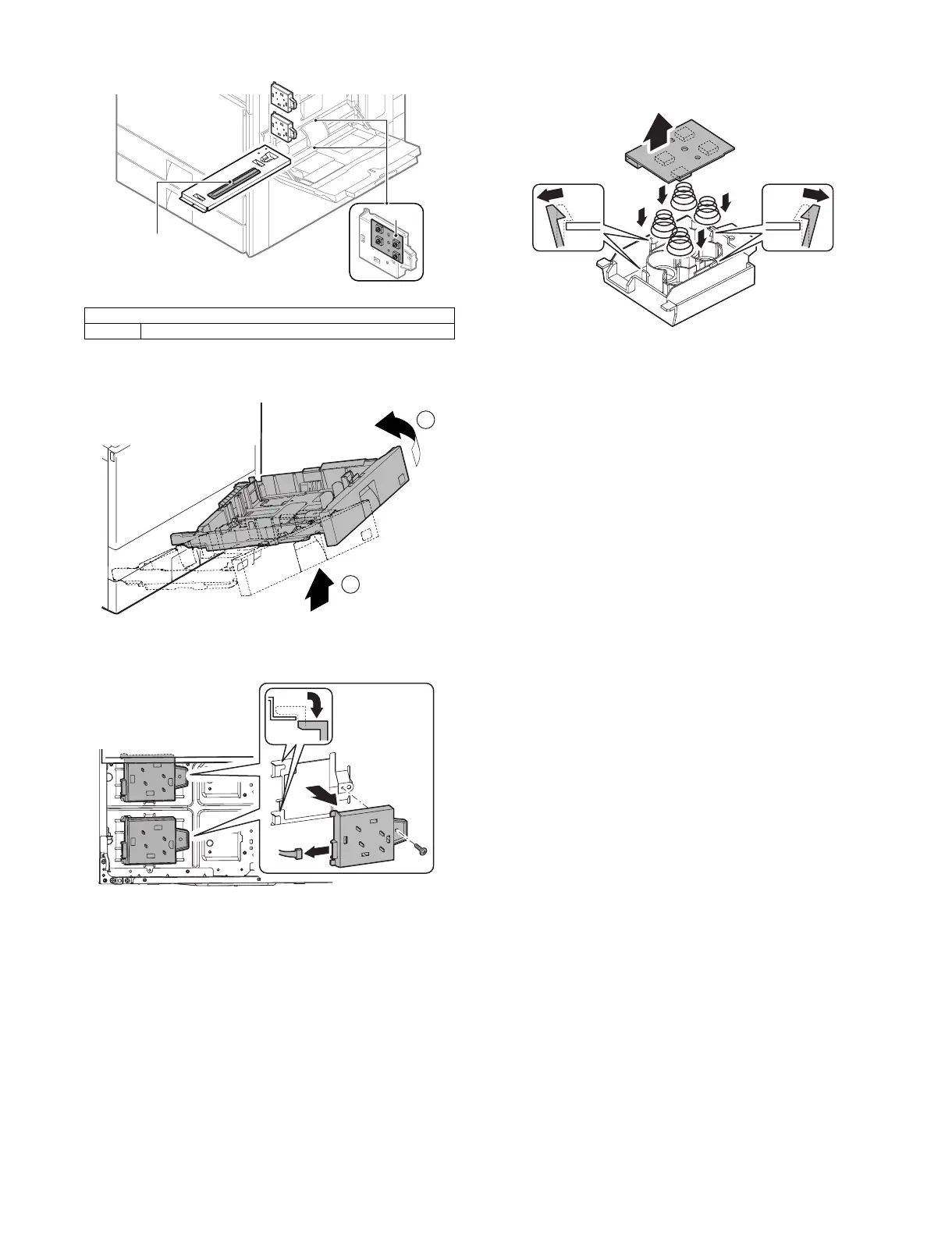

(1) Tray 1, 2 installation detection
1) Remove the tray 1 and 2.
2) Disconnect the connector and remove the screw. Remove the
tray 1, 2 installation detection unit.
3) Disengage the pawl, and remove the tray 1, 2 installation
detection.
Remove the spring from the tray 1, 2 installation detection.
Parts
a Tray 1, 2 installation detection
b
a
1
2
