MX-5001N EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 12

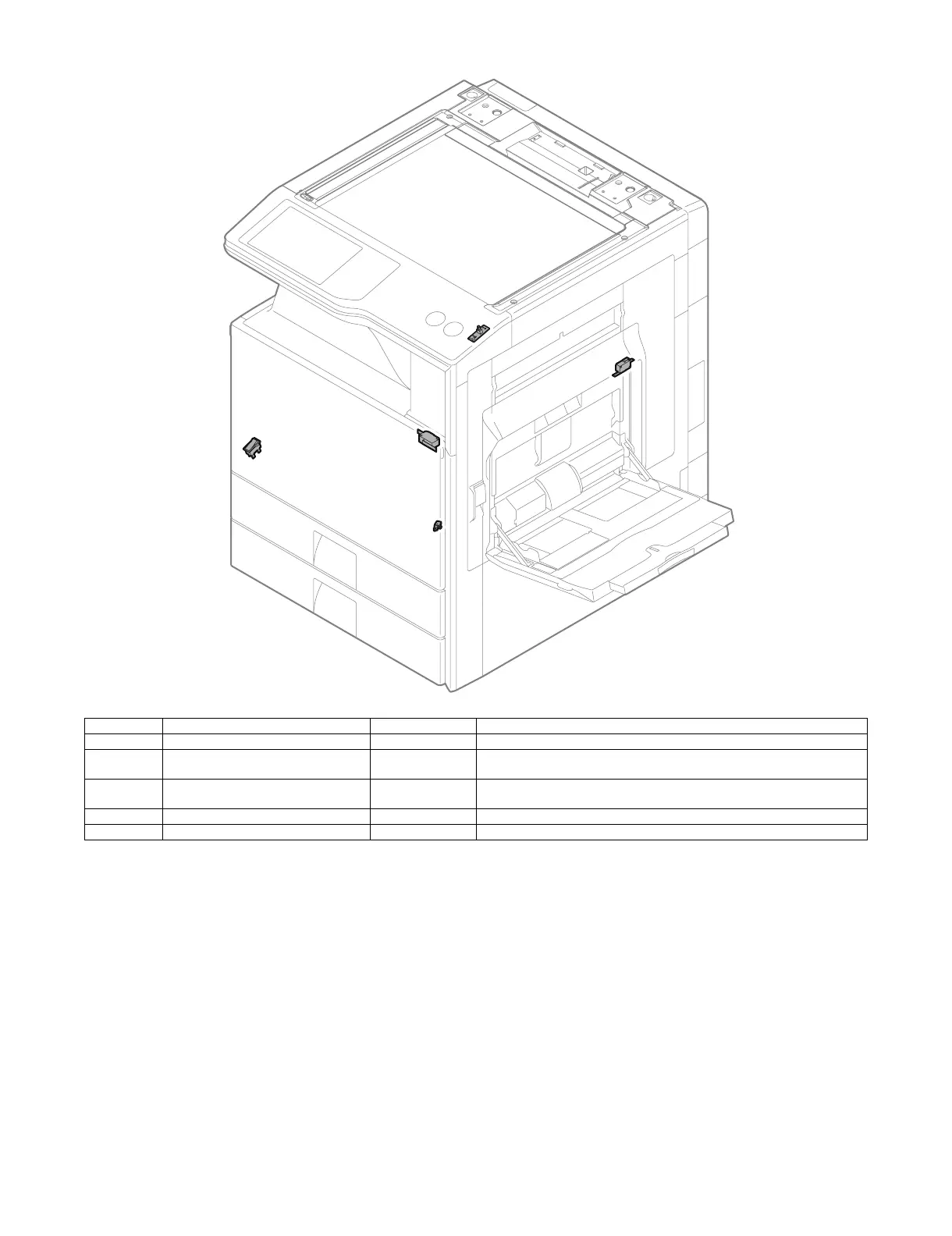

J. Switch
Signal name Name Type Function/Operation
1TNFD Waste toner full detection switch Mechanical switch Detects the waste toner full.
DSW-F Front door open/close switch Micro switch Detects open/close of the front door, and turns ON/OFF the power line of the
fusing, motor and the LSU laser.
DSW-R Right door open/close switch Micro switch Detects open/close of the right door, and turns ON/OFF the power line of the
fusing, motor and the LSU laser.
MSW Main switch Seesaw switch Turns ON/OFF the main DC power source.
PWRSW Operaton panel power supply switch Push switch Outputs the ON/OF control signal of the DC power source.
DSW-R
PWRSW
DSW-F
1TNFD
MSW
