MX-5001N MAINTENANCE 8 – 32
NOTE: When installing the fusing upper cover RAS, be careful not
to pinch the wires.

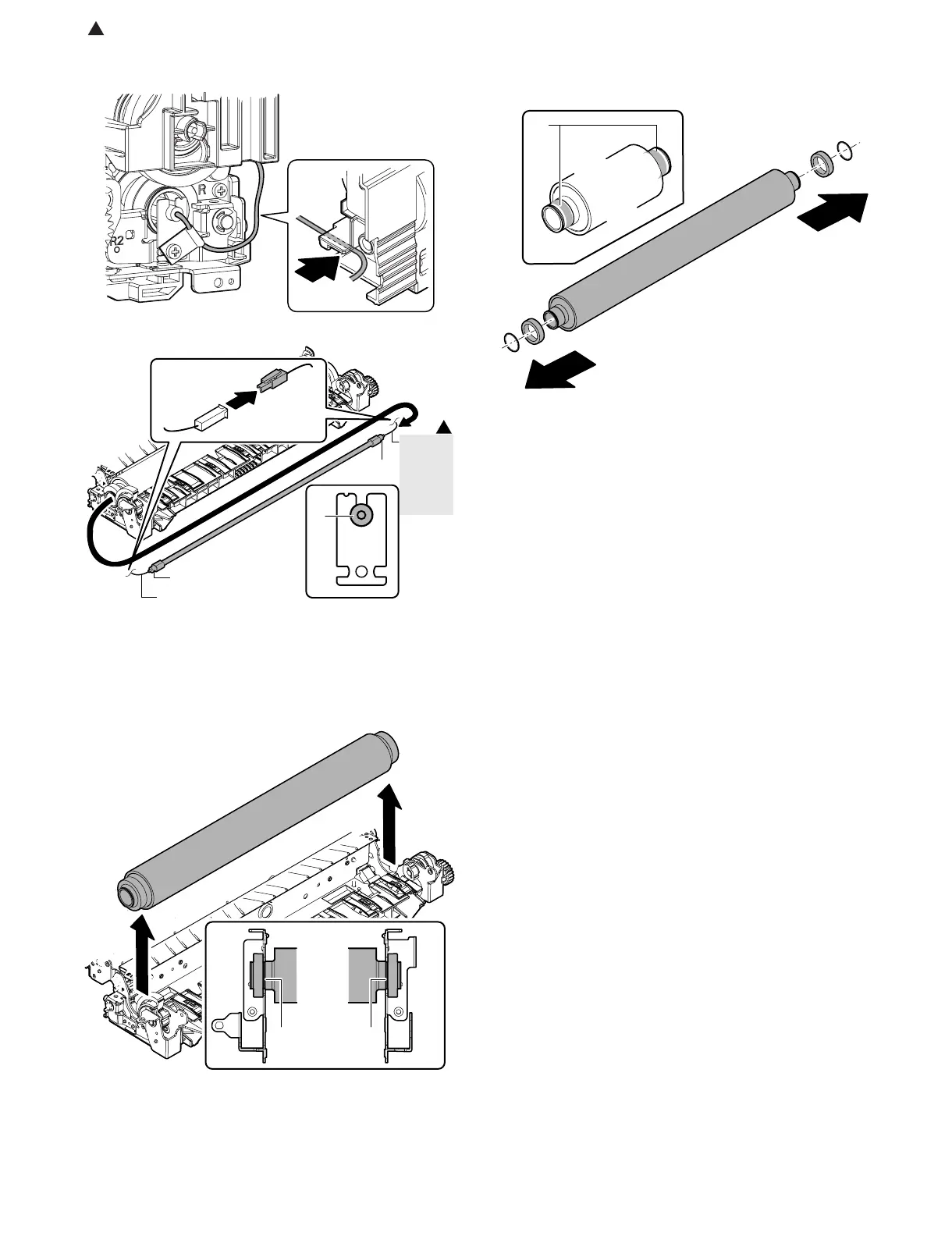

11) Remove the lower heater lamp.
NOTE: When installing, check to confirm that the harness color on
the rear side is red or black.
NOTE: When installing, check to confirm that the section (A) of the
lower heater lamp is securely engaged with the lamp
holder.
12) Remove the lower heat roller assembly.
NOTE: When installing, check to confirm that the groove section
(A) of the lower heat roller is engaged with the frame.
13) Remove the C-ring, and remove the lower heat roller bearing
and the lower heat roller.
Maintenance: Replace at every 300K.
NOTE: Apply BARRIERTA grease (JFE552) to the section (A) of
the lower heat roller.
WHITE
A
A
A
1
RED
(41-sheet
machine)
BLACK
(50-sheet
machine)
AA
A
: Oct. 24 2008
