MX-5001N MAINTENANCE 8 – 38

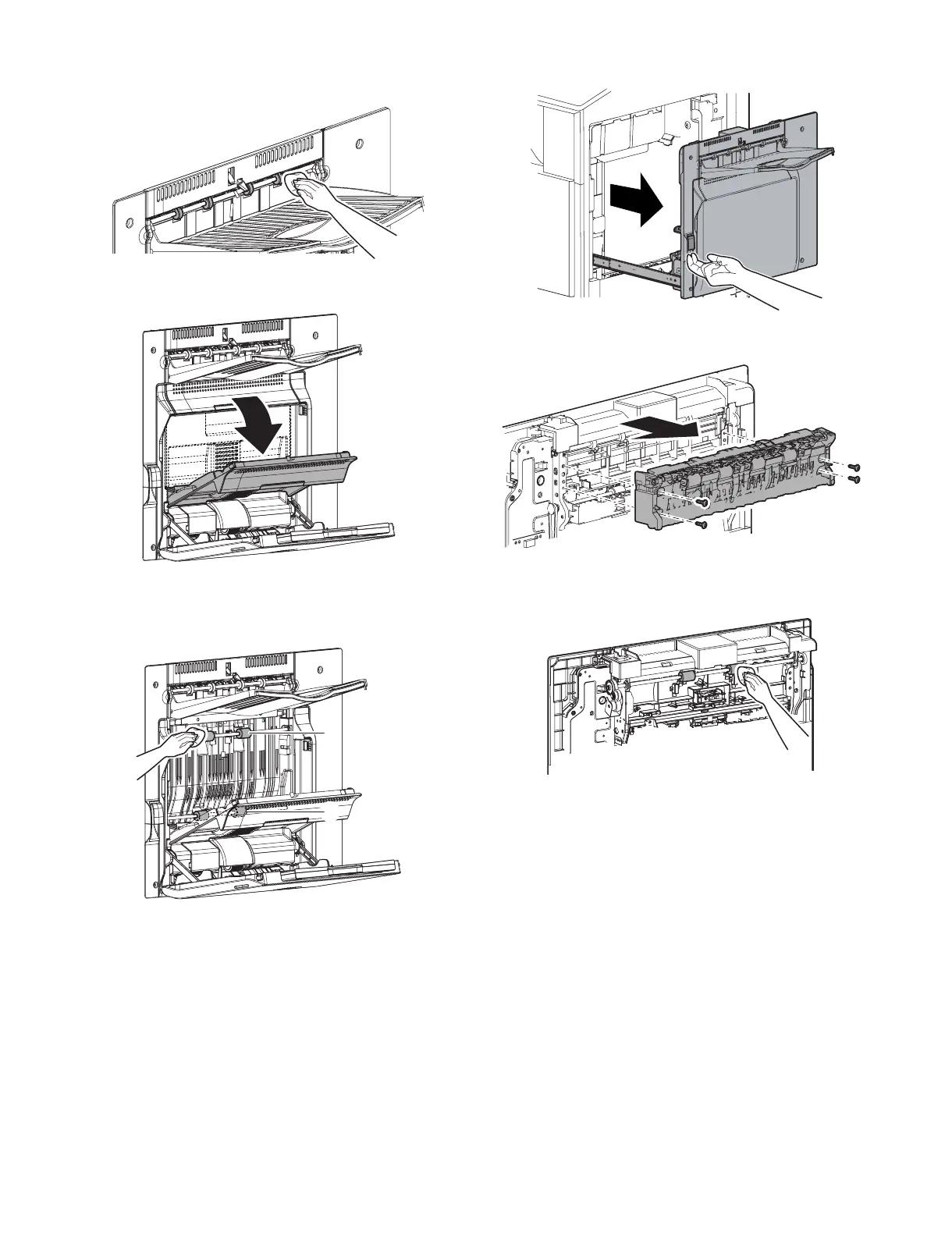

1) Clean the paper exit roller 2 (Drive).
Maintenance: Clean at every 150K.
2) Open the ADU open/close door.
3) Clean the transport roller 10 (Drive) (A), and the transport
roller 11 (Drive) (B).
Maintenance: Clean at every 150K.
4) Open the right door.
5) Remove the reverse PG unit.
6) Clean the transport roller 13 (Drive).
Maintenance: Clean at every 150K.
A
B
To Next Page
