MX-5001N ADJUSTMENTS 5 – 40
a. Adjustment procedures

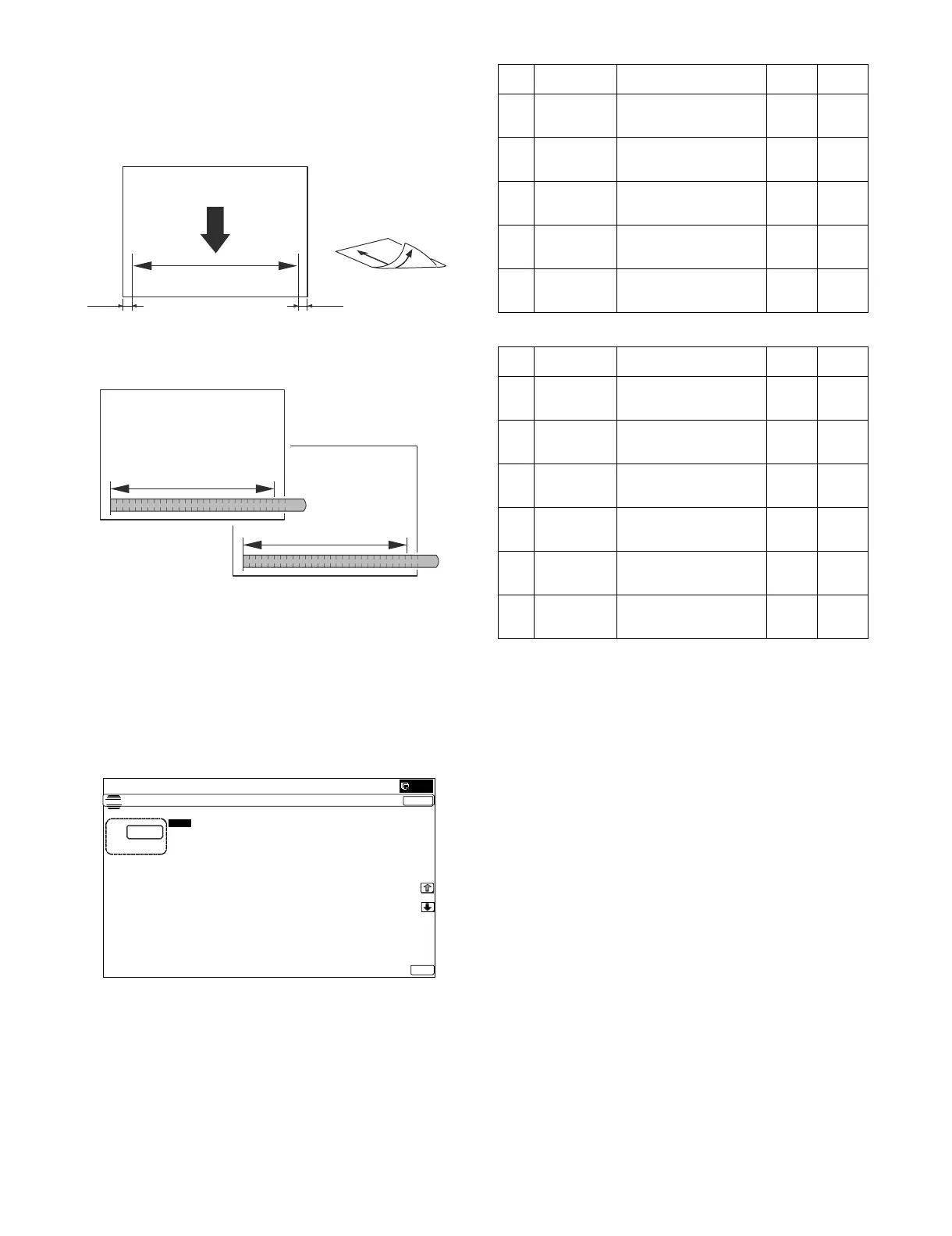

1) Place the duplex adjustment chart shown below on the docu-
ment tray of the RSPF/DSPF.
The adjustment chart is prepared by the following procedures.
Use A4 (11" x 8.5") paper, and put marks on both sides and
both surfaces of the paper at 10mm from each edge.
2) Make a duplex copy at the normal ratio on A4 paper.
3) Measure the images on the copy paper and the original
images.
4) Obtain the image magnification ratio according to the following
formula:
Image magnification ratio = Original size / Original size x 100
(%)
Image magnification ratio = 99 / 100 x 100 = 99 (%)
If the image magnification ratio is within the specified range
(100 ± 0.8%), there is no need to perform the adjustment.
If it is not within the specified range, perform the following pro-
cedures.
5) Enter the SIM48-1 mode.
(DSPF)
(RSPF)
* Items A, C, E: When the set value is increased by 1, the
magnification ratio is increased by 0.02%.
* Items B, D, F: When the set value is increased by 1, the
magnification ratio is increased by 0.1%.
* It affects scanning (PC scanning, etc.) as well as copying.
6) Select an adjustment item of SPF (MAIN)/SPFB (MAIN) with
the scroll key.
7) Enter an adjustment value with 10-key, and press [OK] key.
When the adjustment value is increased, the image magnifica-
tion ratio is increased.
When the adjustment value is changed by 1, the image magni-
fication ratio is changed by 0.02%.
Repeat the procedures of 1) - 7) until a satisfactory result is
obtained.
NOTE: When [CLOSE] key is pressed in this simulation mode, the
machine goes into the normal operation mode. Under this
state, copy check can be normally performed. When the
system key is pressed, the machine returns to the simula-
tion mode.
A4 size
(Both the front surface
and the back surface)
10mm10mm
Paper pass direction
original
10
50
100 150
200
250
copy
10
50
100 150
200
250
ǂǂǂ6,08/$7,21
ǂǂ12
&/26(
7(67
0$*1,),&$7,21$'-8670(17



$˖
˷
˹
˖&&'
0$,1
$˖

˖&&'
68%
%˖

˖63)
0$,1
&˖

˖63)
68%
'˖

˖63)%
0$,1
(˖

2.
Item Display Content
Setting
range
Default
value
A CCD (MAIN) SCAN main scanning
magnification ratio
adjustment (CCD)
1 - 99 50
B CCD (SUB) SCAN sub scanning
magnification ratio
adjustment (CCD)
1 - 99 50
C SPF (MAIN) DSPF document front
surface magnification ratio
adjustment (Main scan)
1 - 99 50
D SPF (SUB) DSPF document front
surface magnification ratio
adjustment (Sub scan)
1 - 99 50
E SPFB (MAIN) DSPF document back
surface magnification ratio
adjustment (Main scan)
1 - 99 50
Item Display Content
Setting
range
Default
value
A CCD (MAIN) SCAN main scanning
magnification ratio
adjustment (CCD)
1 - 99 50
B CCD (SUB) SCAN sub scanning
magnification ratio
adjustment (CCD)
1 - 99 50
C SPF (MAIN) RSPF document front
surface magnification ratio
adjustment (Main scan)
1 - 99 50
D SPF (SUB) RSPF document front
surface magnification ratio
adjustment (Sub scan)
1 - 99 50
E SPFB (MAIN) RSPF document back
surface magnification ratio
adjustment (Main scan)
1 - 99 50
F SPFB (SUB) RSPF document back
surface magnification ratio
adjustment (Sub scan)
1 - 99 50
SPF (MAIN) Main scanning direction image magnification ratio
(Front surface)
SPFB (MAIN) Main scanning direction image magnification ratio
(Back surface)
