MX-M182 SIMULATIONS 7-14
22 07 System setting code display
Used to display the system setting code.
09 Paper feed counter display
Used to display the paper feed quantity of each paper feed tray. This simulation shows the use frequency of
each paper feed section.
[CA] key: Exits the simulation mode.
[INTERRUPT] key: Shifts to the sub code input window.
key, key: Switches to another page.
* TRAY2-TRAY4 are displayed only when they are installed.
11 FAX-related counter display.
Used to display the current FAX send/receive counter value.
13 CRUM destination display
Used to display the CRUM chip destination code saved in the EEPROM. If the display does not match the
destination code saved in the CRUM chip, it is judged as an error.
* This simulation is valid only for the model with the CRUM chip.
14 P-ROM version display
The version of the option board which is not installed is not displayed.
Main
code
Sub
code
Contents Remark

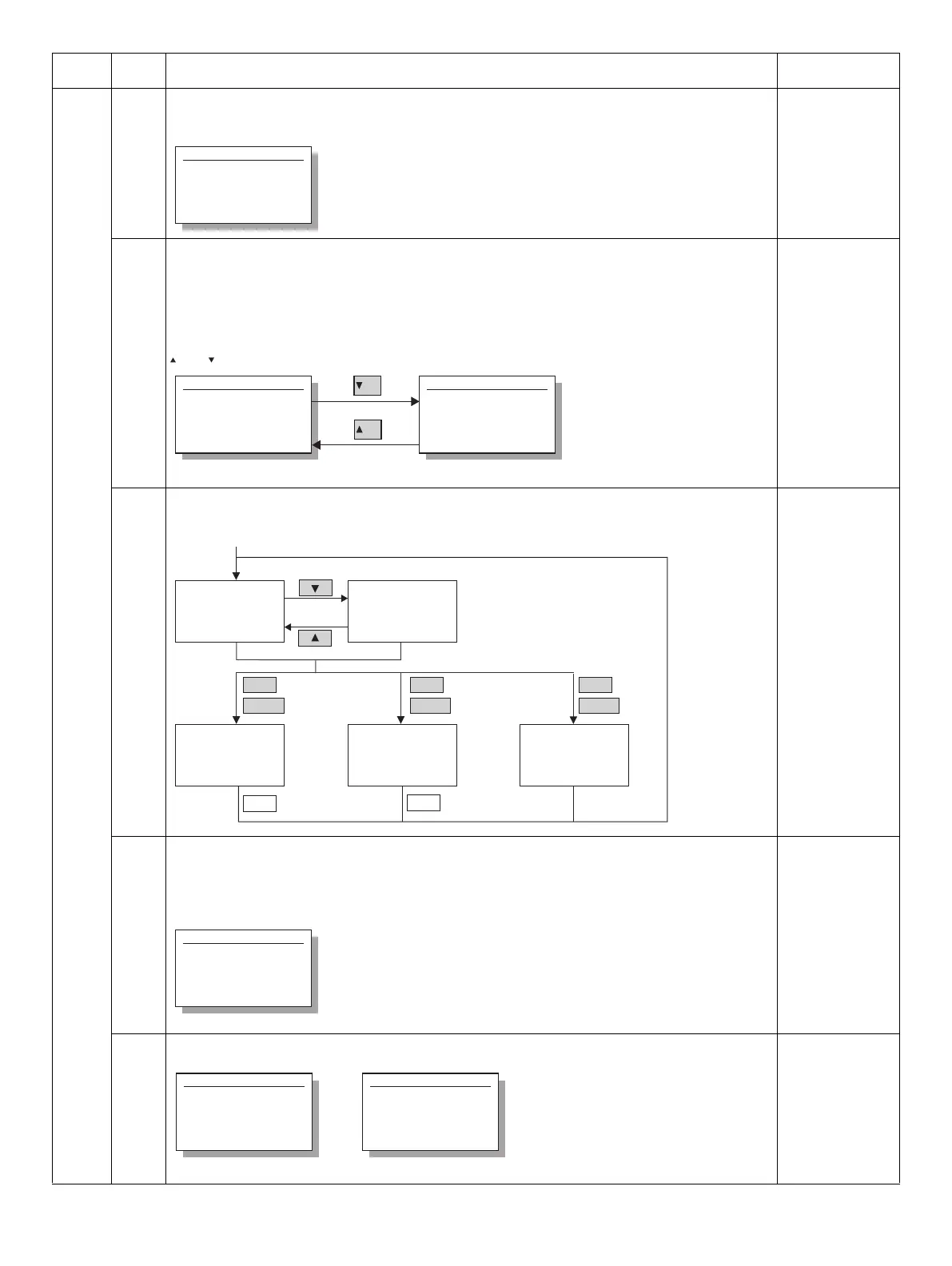

Sim22-7 SYSTEM
SYS CODE: nnnnn
Sim22-9 COUNTER 1/2
BYPASS : nnnnnnn
TRAY1 : nnnnnnn
TRAY2 : nnnnnnn
TRAY3 : nnnnnnn
Sim22-9 COUNTER 2/2
TRAY4 : nnnnnnn
key
key
Sim22-11 FAX COUN.
COMM. PAGE
SND xx, xxx, xxx
RCV xx, xxx, xxx
Sim22-11 FAX COUN.
SELECT COUNTER
3:PRINT PAGE
(1 - 3)
Sim22-11 FAX COUN.
COMM. TIME
SND:hhhhhhhh:mm:ss
RCV:hhhhhhhh:mm:ss
Sim22-11 FAX COUN.
SELECT COUNTER
1:COMM. PAGE
2:COMM. TIME
(1 - 3)
Sim22-11 FAX COUN.
PRINT PAGE
xxxxxxxx
[1] key
[OK] key [OK] key [OK] key
[2] key [3] key
Return Return
[CA] key
: Simulation cancel
[INTERRUPT] key
: Sub code input window
Sim22-13 CRUM
CRUM TYPE nn
Number : Setting (Destination)
00 : Not set.
01 : Destination-A (North America)
02 : Destination-B (Europe)
03 : Destination-C (SMEF)
04 : CHN-A
05 : JPN-A
Number : Setting (Destination)
06 : Destination-X (Iran)
99 : Conversion
Sim22-14 ROM VER1/2
S/N : -----------
MCU : --.--
NNB : --.--
PNL : --.--
Sim22-14 ROM VER2/2
FAX : --.--
S/N :Production serial number
MCU :Main unit program version
NNB :NNB program version
PNL :Panel program version
FAX :FAX program version
