1-8
BEFORE USING THE MACHINEâ–ºBEFORE USING THE MACHINE

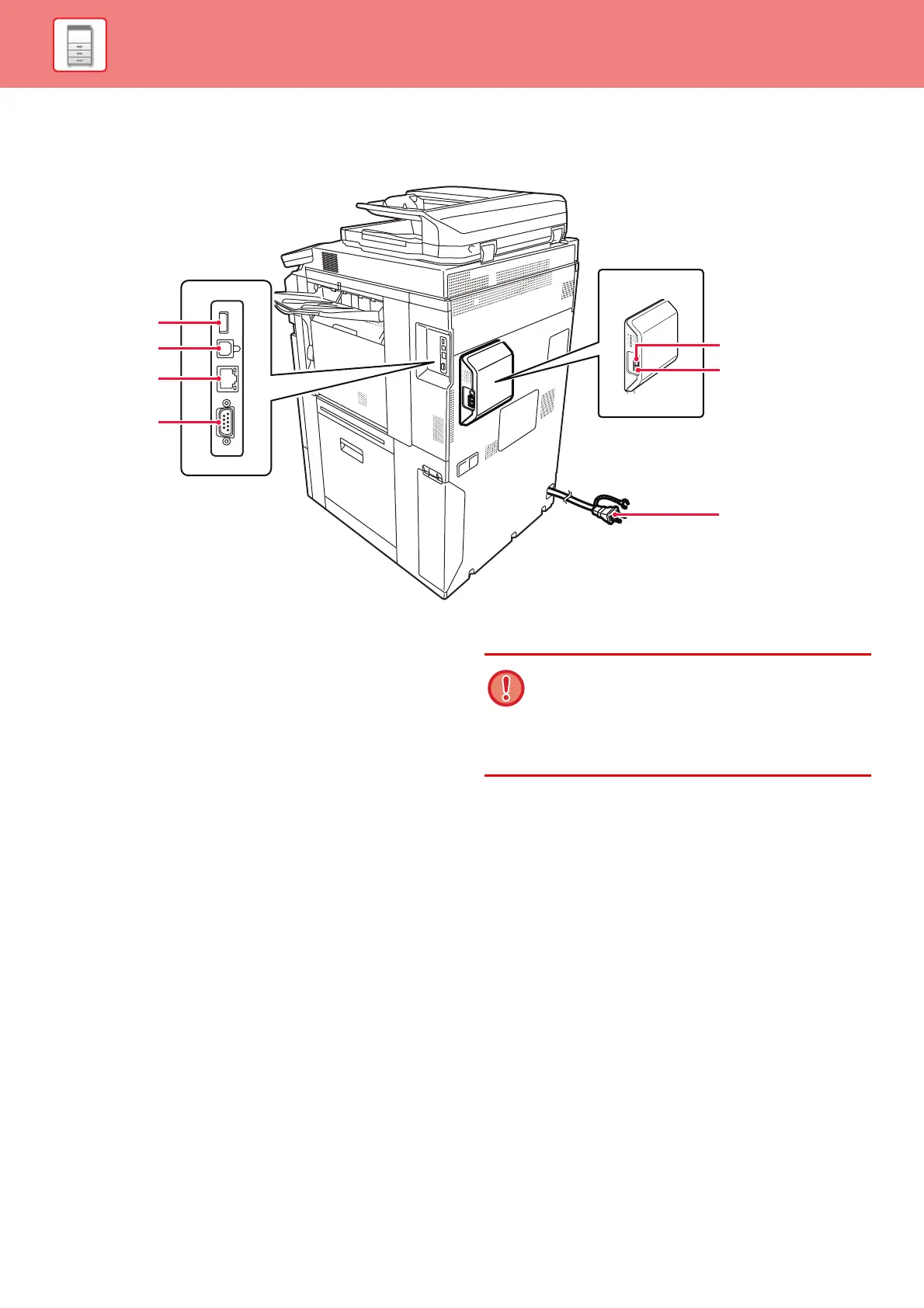

SIDE AND BACK
(1) USB connector (A type)
This is used to connect a USB device such as a USB
memory device to the machine.
Supports USB 2.0 (Hi-Speed).
(2) USB connector (B type)
This machine does not use this connector.
(3) LAN connector
Connect the LAN cable to this connector when the
machine is used on a network.
Use a shielded LAN cable.
(4) Service-only connector
(5) Extension phone jack (TEL)*
When the fax function of the machine is used, an
extension phone can be connected to this jack.
(6) Telephone line jack (LINE)*
When the fax function of the machine is used, the
telephone line is connected to this jack.
(7) Power plug
* Optional
(1)
(2)
(3)
(4)
(7)
(6)
(5)
This connector is for use only by service technicians.
Connecting a cable to this connector may cause the
machine to malfunction.
Important note for service technicians:
The cable connected to the service connector must be
less than 118" (3 m) in length.
