1-4
BEFORE USING THE MACHINEâ–ºBEFORE USING THE MACHINE

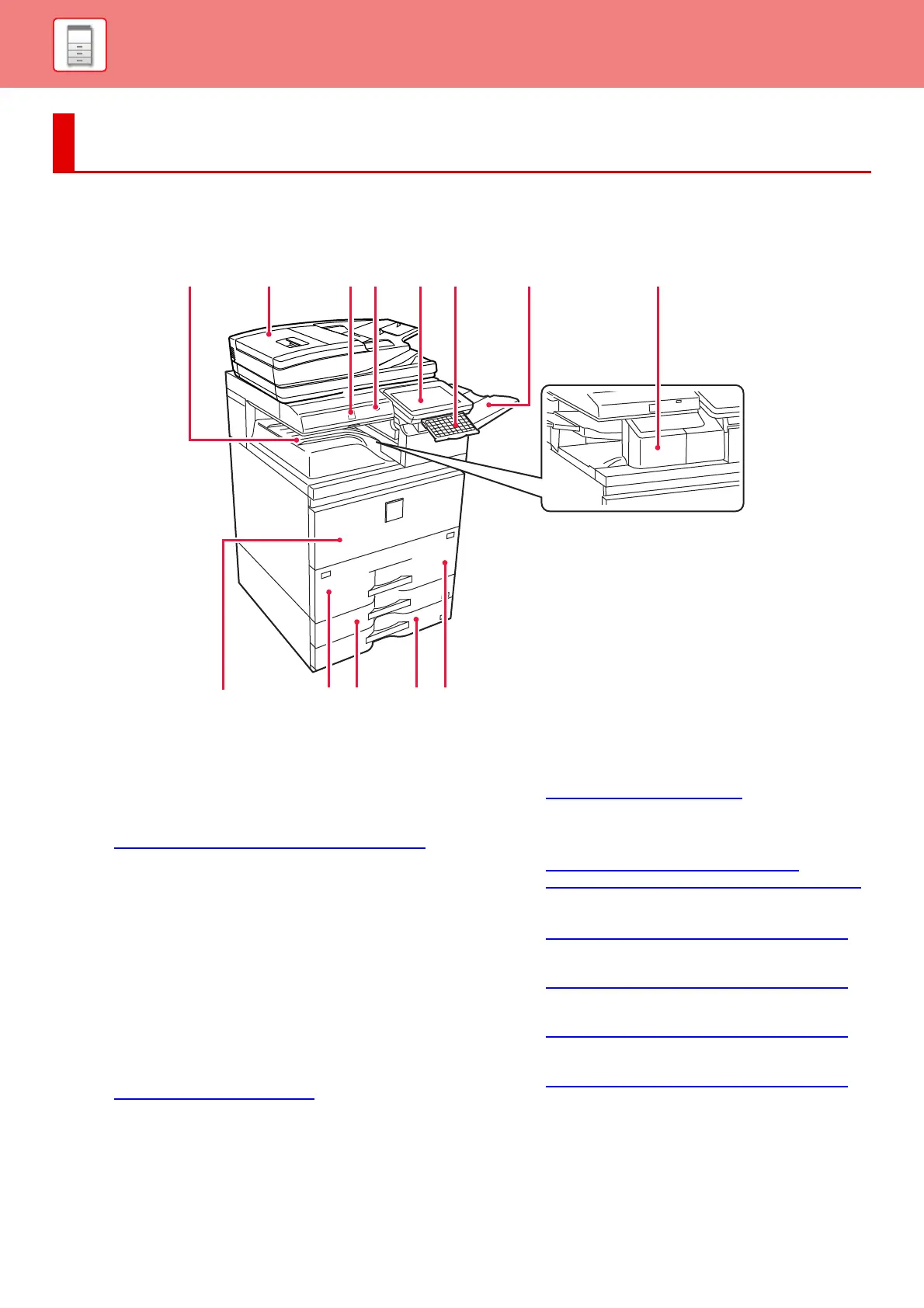

PART NAMES AND FUNCTION
EXTERIOR
(1) Output tray (exit tray cabinet)
*
Received faxes and printed papers are delivered to this
tray.
(2) Automatic document feeder
It automatically feeds and scans multiple originals. 2-sided
originals can be automatically scanned. Both sides of
2-sided originals can be automatically scanned at one time.
â–º AUTOMATIC DOCUMENT FEEDER (page 1-131)
(3) Motion sensor
This sensor detects the presence of a person that
approaches the machine, and automatically wakes the
machine from sleep mode (Motion Sensor Mode Only).
(4) USB port (A type)
This is used to connect a USB device such as a USB
memory device to the machine.
Supports USB 2.0 (Hi-Speed).
(5) Operation panel
This panel hosts the [Power] button, [Power Save]
button/indicator, error indicator, [Home Screen] button, main
power button, data notification indicator and touch panel.
Use the touch panel to operate each of these functions.
An NFC touch point area also appears.
â–º OPERATION PANEL
(page 1-9)
(6) Keyboard
Use this as a substitute for the soft keyboard displayed
on the touch panel. When not being used, it can be
stored under the operation panel.
(7) Exit tray unit (right tray)
*
Set this tray as the output tray if needed.
(8) Inner finisher
*
This staples paper.
â–º INNER FINISHER
(page 1-165)
(9) Front cover
Open this cover to switch the main power switch to "On"
or "Off" to replace a toner cartridge.
â–º TURNING ON THE POWER
(page 1-11)
â–º
REPLACEMENT OF TONER CARTRIDGE (page 1-209)
(10) Tray 1
Store paper in this tray.
â–º
LOADING PAPER IN THE TRAY 1/2 (page 1-109)
(11) Tray 3
Store paper in this tray.
â–º
LOADING PAPER IN THE TRAY 3/4 (page 1-112)
(12) Tray 4
Store paper in this tray.
â–º
LOADING PAPER IN THE TRAY 3/4 (page 1-112)
(13) Tray 2
Store paper in this tray.
â–º
LOADING PAPER IN THE TRAY 1/2 (page 1-109)
*Optional
BEFORE USING THE MACHINE
(2)
(5) (7)
(3)
(4)
(9) (10) (11) (12) (13)
(8)(6)
(1)
To Next Page
