(14) Saddle Stitch Finisher (large stacker)
*
This staples and folds paper. A punch module can also
be installed to punch holes in output paper.
►
SADDLE STITCH FINISHER (LARGE STACKER) (page 1-184)
(15) Inserter*
Covers and insertion sheets to be inserted into printed
sheets can be loaded.
Using the manual finishing function, you can directly feed
paper into the finisher (large stacker) or saddle stitch
finisher (large stacker) to staple, punch or fold the paper.
(16) Curl correction unit*
This unit corrects curls in printed paper.
(17) Paper pass unit
*
Relay between the machine and the finisher, finisher (large stacker),
saddle stitch finisher or saddle stitch finisher (large stacker).
(18) Tray 5 (MX-LC18)
*
Store paper in this tray.
►
Large capacity tray (MX-LC18) (page 1-116)
(19) Tray 5 (MX-LC19)*
Store paper in this tray.
►
Large capacity tray (MX-LC19) (page 1-117)
(20) Finisher (large stacker)
*
This staples paper. A punch module can also be installed
to punch holes in output paper.
► FINISHER (LARGE STACKER)
(page 1-172)
(21) Saddle Stitch Finisher
*
This staples and folds paper. A punch module can also
be installed to punch holes in output paper. You can also
perform stapling manually.
► SADDLE STITCH FINISHER
(page 1-177)
(22) Finisher
*
This staples paper. A punch module can also be installed
to punch holes in output paper. You can also perform
stapling manually.
► FINISHER
(page 1-168)
(23) Trimming module*
This trims the excess of saddle-stitched output.
(24) Punch module
*
This is used to punch holes in output. Requires a finisher,
finisher (large stacker), saddle stitch finisher or saddle
stitch finisher (large stacker).
(25) Folding unit*
This folds and outputs paper.
*Optional

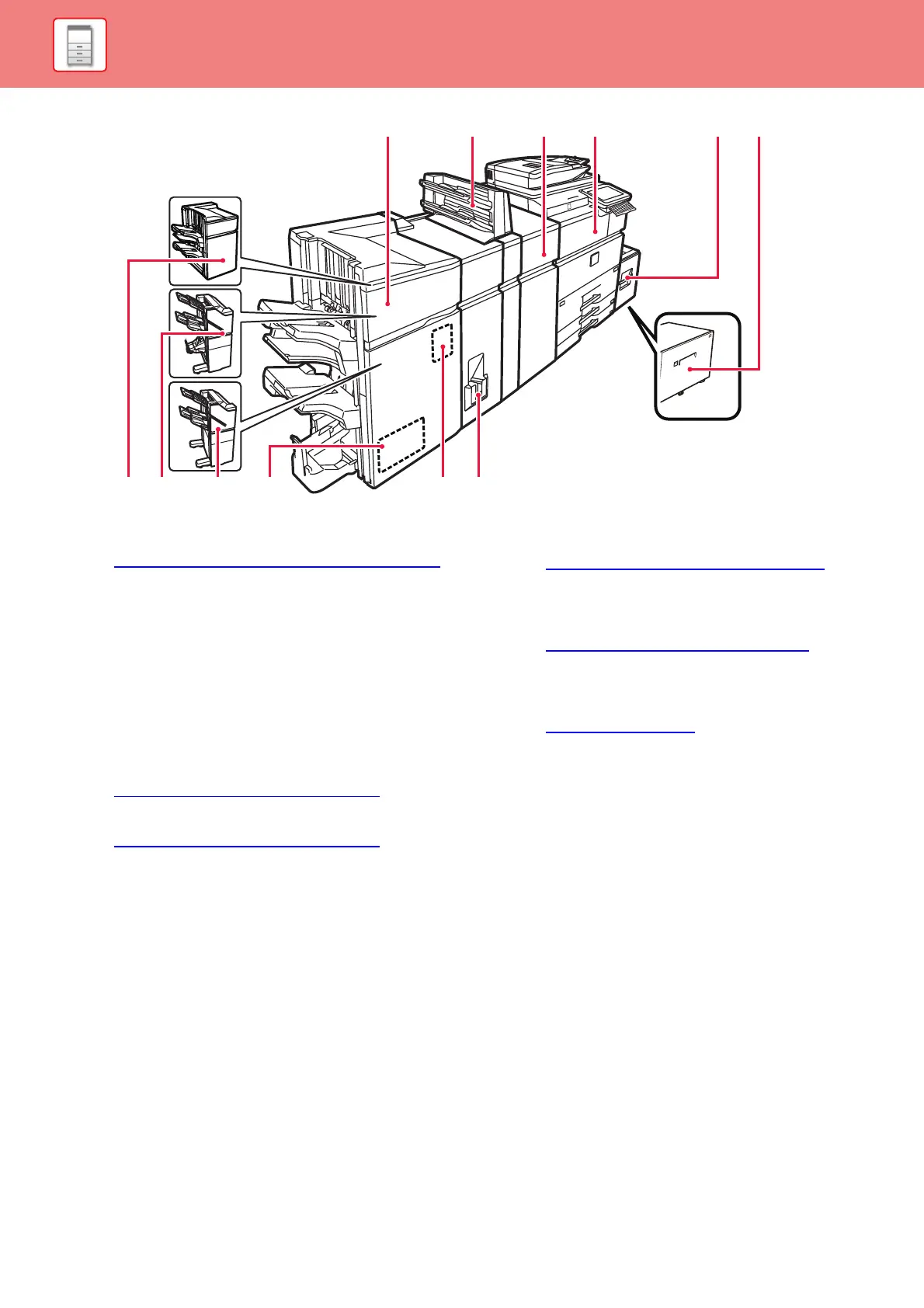

(21)(20) (22)
(23)
(24)
(25)
(15)(14)
(19)(18)
(16) (17)
