BEFORE USING THE MACHINEâ–ºPERIPHERAL DEVICES
INNER FINISHER
This device outputs sorted paper while staggering each set of paper. As needed, it staples each set.
PART NAMES

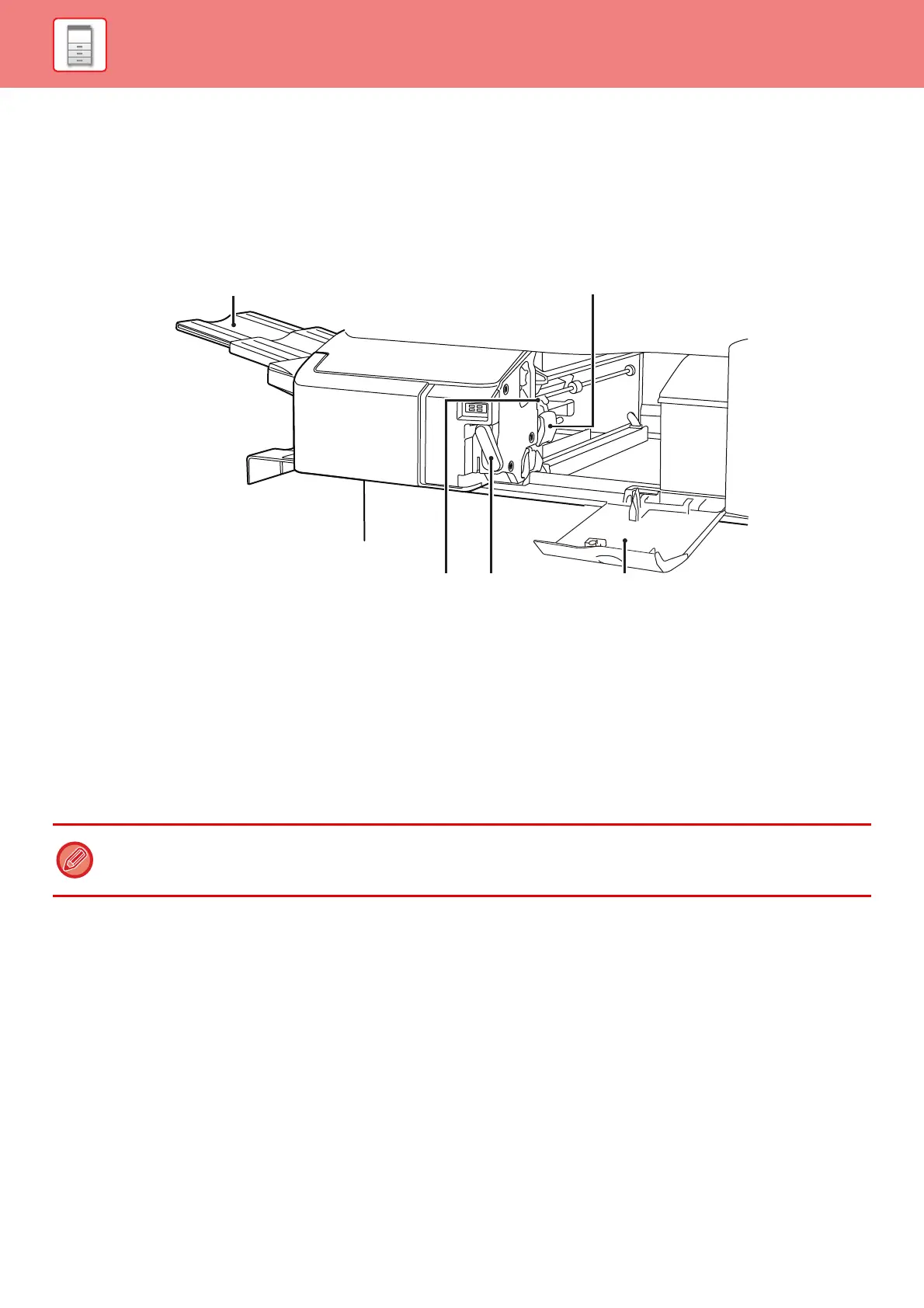

The following describes the parts that appear when the finisher is open.
(1) Output tray
Stapled and offset output is delivered to this tray.
The tray is slidable. To print on large paper such as A3
size, extend the tray.
(2) Staple case release lever
Use this lever to remove the staple case.
(3) Staple case
This holds the staple cartridge.
Pull the case out to replace the staple cartridge or
remove a staple jam.
(4) Lever
Use this lever to move the finisher in order to remove a
paper misfeed, or remove a staple jam.
(5) Front cover
Open this cover to remove a paper misfeed, replace
staples, or remove a staple jam.
(1)
(2)
(3) (5)(4)
• The inner finisher cannot be installed at the same time as the finisher, finisher (large stacker), saddle stitch finisher or
saddle stitch finisher (large stacker).
• Exercise caution when you turn on the power and when printing take place, as the output tray may move up and down.
