Sharp PN-L702B User Manual

10
E
n

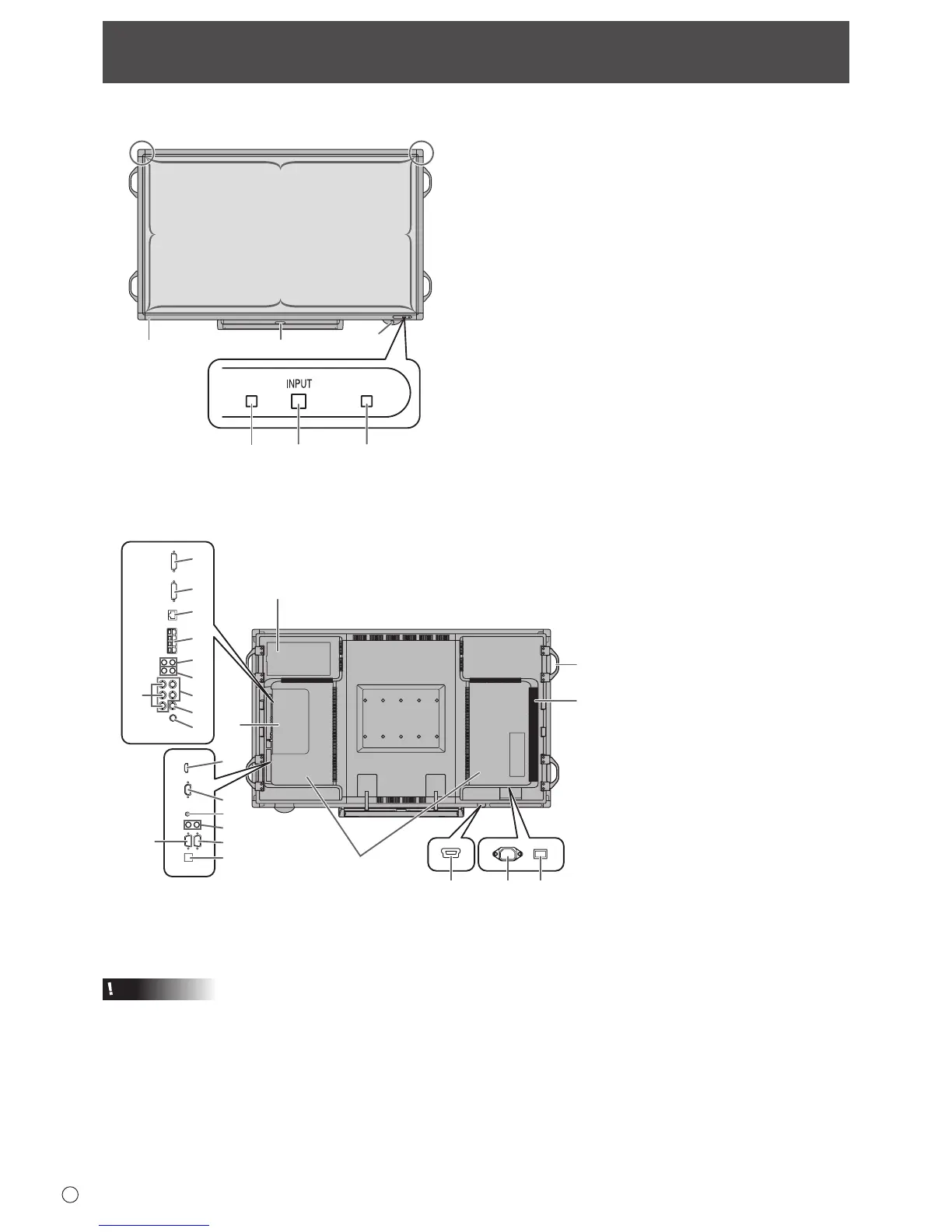

Front view
768
11
5
22
2
2
4
3
1. Touch pen ultrasonic sensor
2. Infrared transmitter/receiver
3. Power button (Seepage16.)
4. Tray
5. Touch panel power LED
6. Remote control sensor (Seepage15.)
7. Input switch (Seepage21.)
8. Power LED (Seepage16.)
Part Names
n
Rear view
18
17
16
19
22
21
20
24
23
2
1
4
1514
5
6
7
8
9
10
11
12
3
When the PN-ZB01
(optional) is attached
25
13
1. Optional attachment section
This section is used to connect optional
hardware for function expansion.
Offering this attachment location is
not a guarantee that future compatible
hardware attachments will be released.
2. Speakers
3. Handles (Seepage14.)
4. Vents
5. Expansion terminal cover
Additional input/output terminals are
availablebyattachingthePN-ZB01
interfaceexpansionboard(optional).
6. PC/AV HDMI input terminal (Seepage
12.)
7. PC D-sub input terminal (Seepage
12.)
8. Audio input terminal (Seepage12.)
9. Audio output terminals (Seepage12.)
10. RS-232C output terminal (Seepage
12.)
11. RS-232C input terminal (Seepage12.)
12. Optional terminal
This terminal is provided for possible
future(optional)functionexpansion.
Offering of this terminal is not a
guarantee that future expanded
functionality will be provided.
13. USB port
14. AC input terminal (Seepage14.)
15. Main power switch (Seepage16.)
Caution
• ConsultyourSHARPdealerforattachment/detachmentof
optional parts.
• Donotopentheexpansionterminalcoverbyyourself.
There are high voltage parts inside the cover which may
cause an electric shock.
When the PN-ZB01 (optional) is attached
16. PC/AV DVI-D input terminal (Seepage13.)
17. PC/AV DVI-D output terminal (Seepage13.)
18. LAN terminal (Seepage13.)
19. External speaker terminals (Seepage13.)
20. Audio 1 input terminals (Seepage13.)
21. Audio 2 input terminals (Seepage13.)
22. PC RGB input terminals (Seepage13.)
23. AV component input terminals (Seepage13.)
24. AV video input terminal (Seepage13.)
25. AV S-video input terminal (Seepage13.)

Sharp PN-L702B Specifications

General

Pixel pitch	0.802 x 0.802 mm
Aspect ratio	16:9
Screen shape	Flat
Response time	6 ms
Composite sync	Yes
Display diagonal	60 \
Display brightness	300 cd/m²
Display technology	LCD
Contrast ratio (typical)	3000:1
Display number of colors	1.073 billion colors
Viewing angle, horizontal	160 °
Certification	UL 60950, FCC
Product color	Black
Bezel width	41 mm
Placement supported	Horizontal
Ethernet LAN (RJ-45) ports	1
Display viewable area (HxV)	1538.2875 x 865.1875 mm
Number of products included	1 pc(s)
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	240 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Package weight	82100 g
Camera included	No
RMS rated power	14 W
Number of speakers	2

Weight and Dimensions

Depth (without stand)	115.8875 mm
Width (without stand)	1647.825 mm
Height (without stand)	982.6625 mm
Weight (without stand)	70000 g
