UX-P115U
2 – 1
FAXUX-P115UService ManualService ManualMarketE

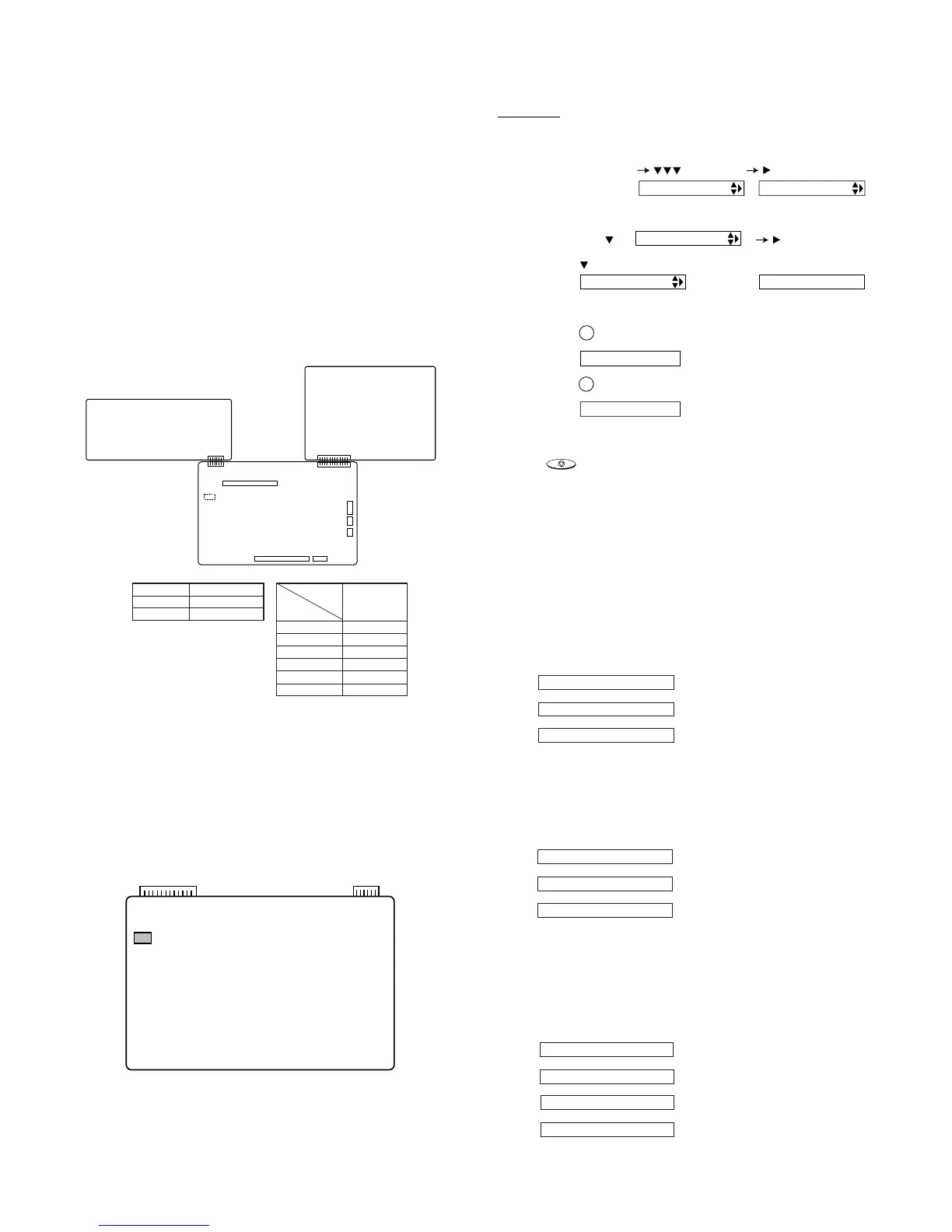

CHAPTER 2. ADJUSTMENTS
[1] Adjustments
1. General
Since the following adjustments and settings are provided for this
model, make adjustments and/or setup as necessary.
2. Adjustments of output voltage (FACTORY ONLY)
1. Install the power supply unit in the machine.
2. Set the recording paper and document.
3. When the document is loaded, power is supplied to the output
lines. Confirm that outputs are within the limits below.
2.1. Output voltage settings
3. IC protectors replacement
ICPs (IC Protectors) are installed to protect the motor driver circuit.
ICPs protect various ICs and electronic circuits from an overcurrent
condition.
The location of ICPs are shown below:
1) FU100 (KAB3202) is installed in order to protect IC's from an
overcurrent generated in the motor drive circuit. If FU100 is open,
replace it with a new one.
4. Settings
4.1. Dial mode selector
DIAL mode (Soft Switch No. SW-B4 DATA No. 3)
5. Volume adjustments
You can adjust the volume of the speaker, handset, and ringer using
the UP and DOWN keys.
5.1. Speaker
1. Press the SPEAKER key.
2. Press the UP or DOWN key until the display shows the desired vol-
ume level.
5.2. Handset
1. When talking through the handset, press UP or DOWN key until the
display shows the desired volume level.
5.3. Ringer
1. Press the UP or DOWN key. (Make sure SPEAKER key has not
been pressed, the handset is not lifted, and a document is not
loaded in the feeder.)
2. If you selected RINGER OFF: OK?, press START/ MEMORY key.
TEL/LIU PWB
POWER
SUPPLY
PWB
CONTROL
PWB
CNMT
CNLIUA
CNLIUA
CNPS
CNPW
CNPN
CNCIS
CNSP
CNCSW
CNTH
CNPRG
Output Voltage limits
Vreg(+5V) 4.25V ~ 5.75V
+24V 23.3V ~ 24.7V
1 +24V
2 +24V
3MG
4MG
5DG
6 Vreg(+5V)
Connector
No. CNPW
Pin No.
61
CONTROL PWB
(BOTTOM SIDE)
CNLIUA
FU100
CNPW
(step 1) Select "OPTION SETTING".
KEY : FUNCTION
DISPLAY: OPTION SETTING NUMBER OF RING
(step 2) Select "DIAL MODE".
KEY: Push until DIAL MODE is
indicated because the number of
's changes by the model.
DISPLAY: DIAL MODE 1=TONE, 2=PULSE
(step 3) Select, using "1" or "2".
KEY: 1
DISPLAY: TONE SELECTED
KEY: 2
DISPLAY: PULSE SELECTED
(step 4) End, using the "STOP" key.
KEY:
STOP
Display:
SPEAKER: HIGH
SPEAKER: MIDDLE
SPEAKER: LOW
Press SPEAKER key again to
turn off the speaker.
Display:
RECEIVER: HIGH
RECEIVER: MIDDLE
RECEIVER: LOW
•Note:The volume reverts to
MIDDLE each time you
replace the handset.
Display:
RINGER: HIGH
RINGER: MIDDLE
RINGER: LOW
RINGER OFF: OK?
The ringer will ring once at the
selected level, then the date
and time will reappear in the
display.
