UX-P115U
3 – 3
[2] Disassembly and assembly procedures
• This chapter mainly describes the disassembly procedures. For the assembly procedures, reverse the disassembly procedures.
• Easy and simple disassembly/assembly procedures of some parts and units are omitted. For disassembly and assembly of such parts and units,
refer to the Parts List.
• The numbers in the illustration, the parts list and the flowchart in a same section are common to each other.
• To assure reliability of the product, the disassembly and the assembly procedures should be performed carefully and deliberately.

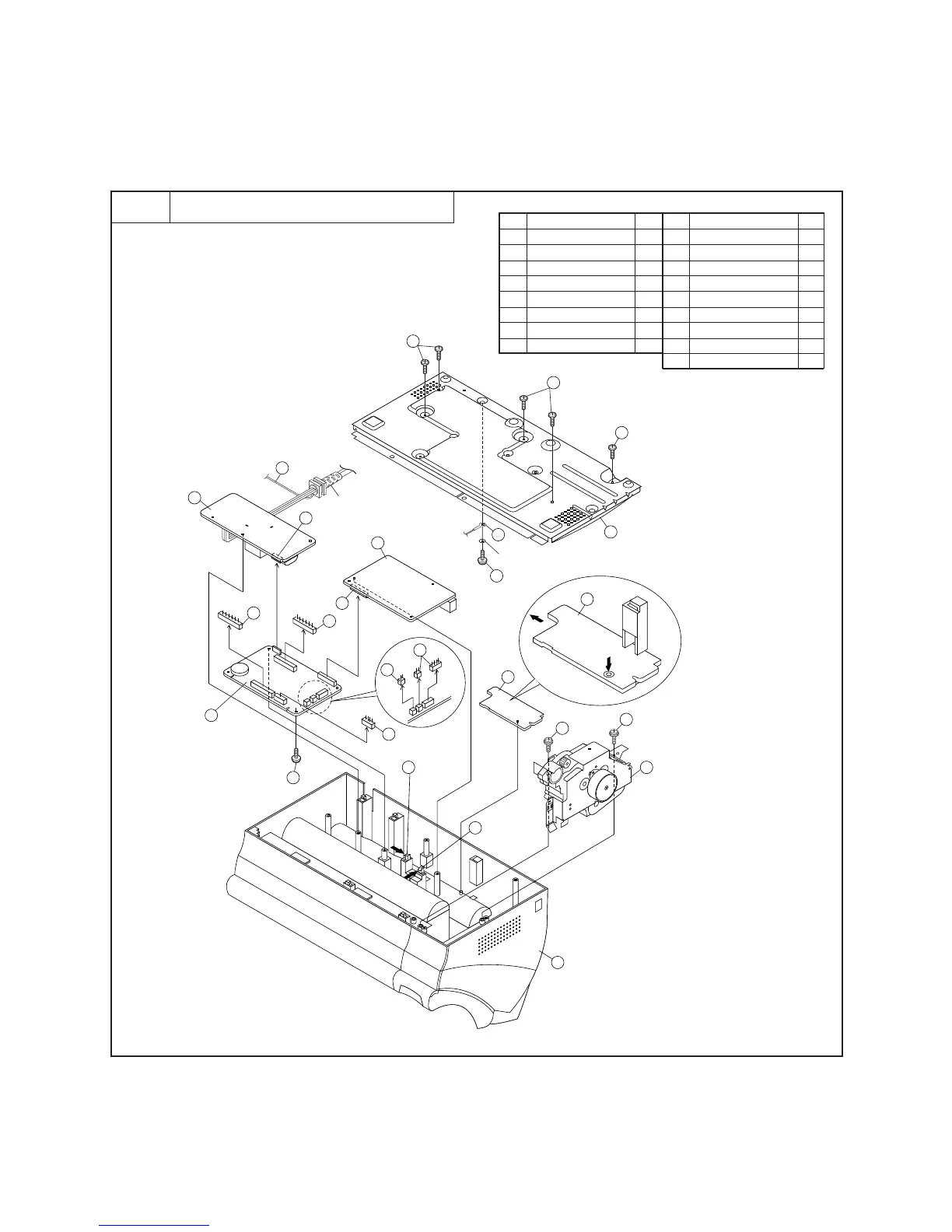

Fig. 1
Bottom plate, PWB's and drive unit
1
Parts list (Fig. 1)
9 Connector 1
10 TEL/LIU PWB unit 1
11 Connector 6
12 Screw (3x10) 1
13 Hook 1
14 Control PWB unit 1
15 Wire holder PWB 1
16 Screw (3x10) 2
17 Drive unit 1
No. Part name Qty No. Part name Qty
1 Mechanism uni 1
2 Screw (3x10) 5
3 Screw 1
4 AC cord earth cable 1
5 Bottom plate 1
6Hook 1
7 Connector 1
8
Power supply PWB unit
1
Push
2
2
2
5
3
15
15
16
16
17
1
13
6
AC cord
4
7
8
10
9
11
11
14
11
11
11
4
Washer
12
TEL/LIU PWB unit
Power supply PWB unit
Control PWB unit
Bottom plate
Drive unit
Mechanism unit
