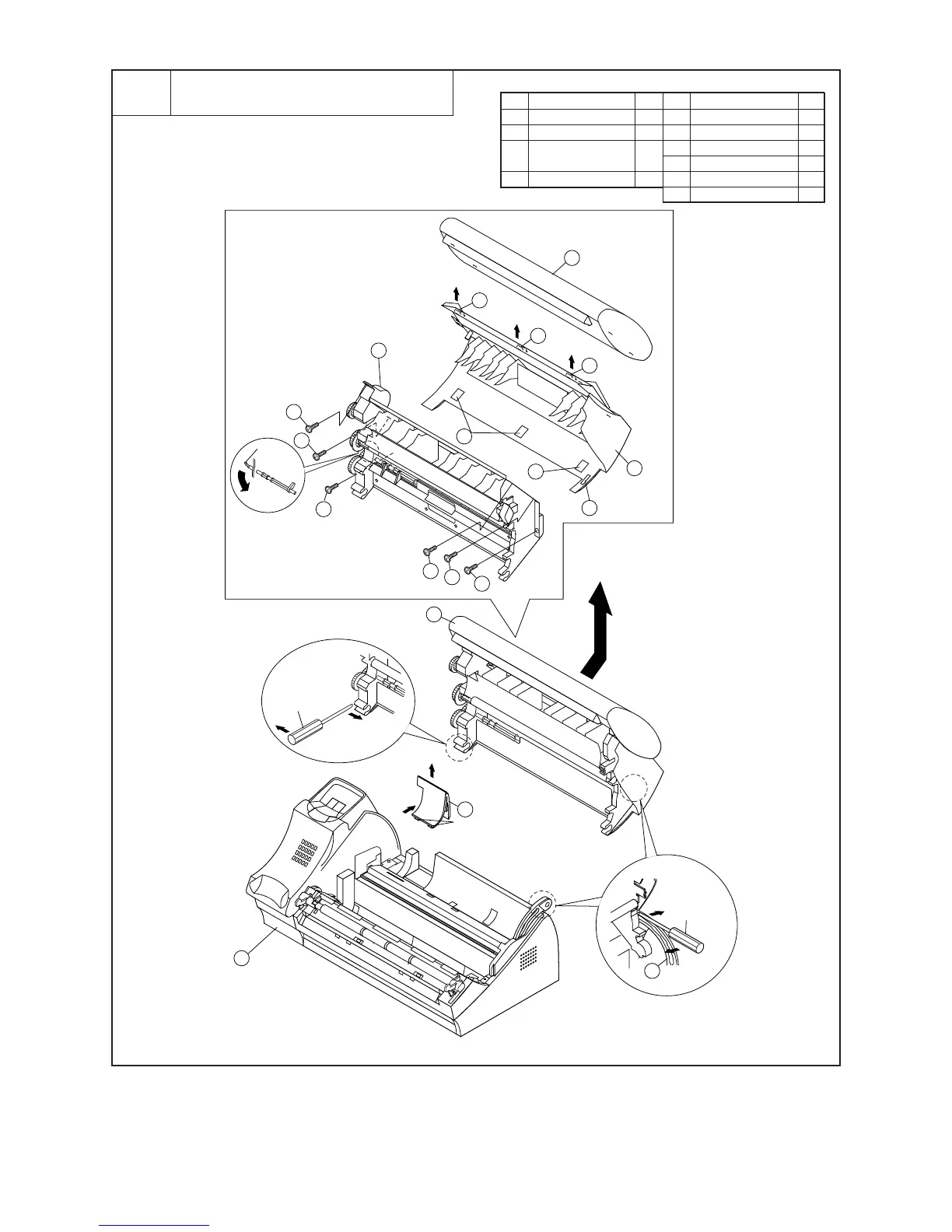

Fig. 2
Operation panel unit, top cover unit
and sub frame unit
2
Parts list (Fig. 2)
Hook
6
8
8
8
8
8
8
9
5
5
7
5
5
7
10
4
3
1
2
P-IN
lever
Screwdriver
Screwdriver
Operation
panel unit
Top cover
unit
Sub frame
unit
5 Screw (3x12) 4
6 Operation panel unit 1
7 Screw (3x10) 2
8Hook 7
9 Top cover unit 1
10 Sub frame unit 1
No. Part name Qty No. Part name Qty
1 Mechanism unit 1
2 Stopper plate 1
3 Operation panel unit/
top cover unit/ sub frame unit 1
4 Panel cable cover 1
NOTE: For disassembly of the inside of the unit,
refer to the exploded view in the parts
guide.
NOTE: When removing the operation
panel unit, detach the stopper
plate at first.
Mechanism unit
