Connecting the VCR
The connection method differs depending on the type of TV.
If you have cable TV (CATV), see Cable TV Connections.
RF Connection (for connection to a TV without AV terminals)
! Disconnect the TV antenna from the TV.
@ Connect the TV antenna cable to the ANTENNA IN terminal on the rear of the VCR.
# Connect the TV OUT terminal on the rear of the VCR with the antenna terminal on the TV using a coaxial
cable. Select the TV channel 3 or 4 corresponding to the 3 ↔ 4 output channel of the VCR. (See Setting
the 3 ↔ 4 Output Channel on page 11.)

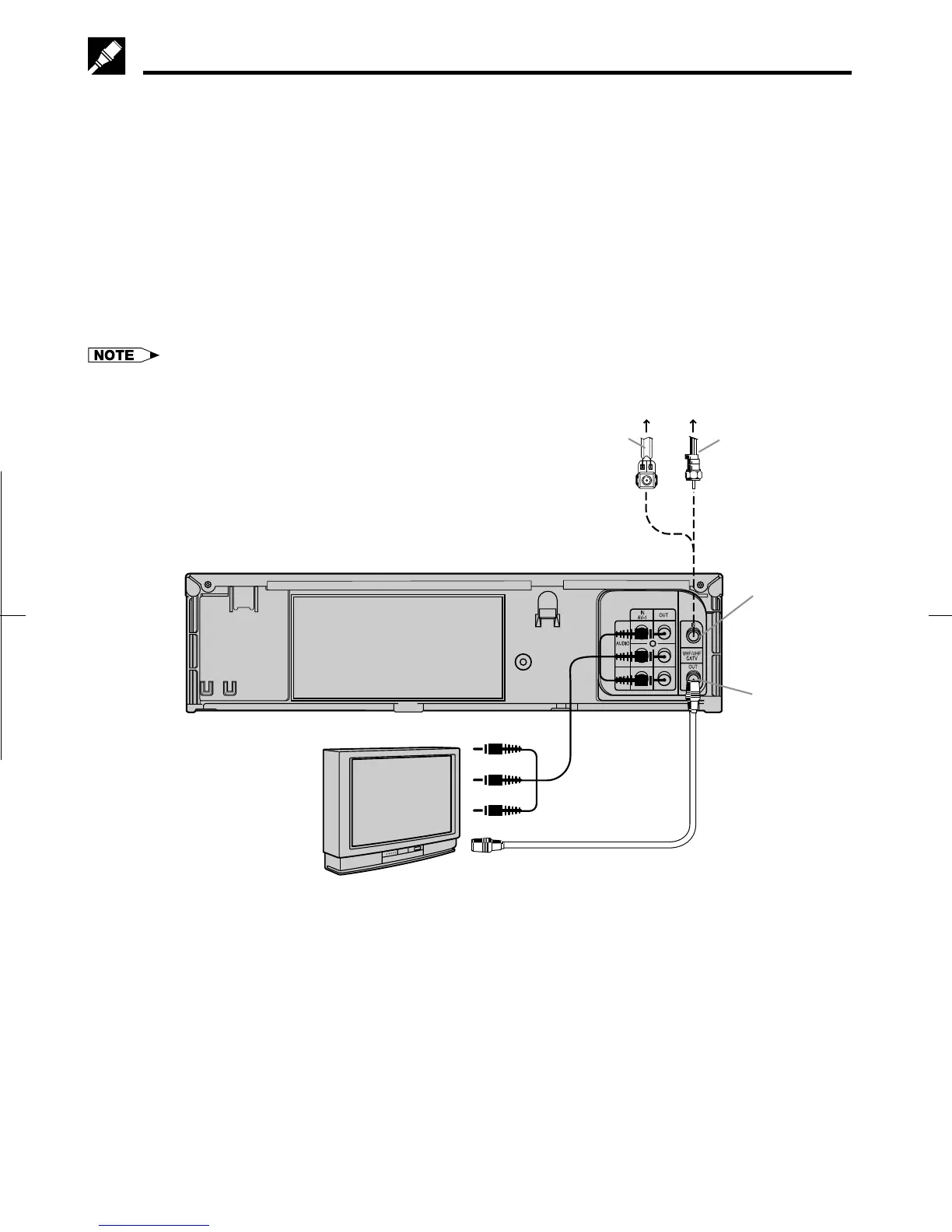

AV Connection (for connection to a TV with AV terminals)
! Disconnect the TV antenna from the TV.
@ Connect the antenna, VCR and TV using the Audio/Video cable and coaxial cable (supplied) as shown.
# Select the video input mode or A/V input mode on your TV. (See the TV operation manual for details.)
•If your VCR is a monaural model, connect the audio cable to “AUDIO OUT” on the VCR.
Coaxial cable
Antenna
TV OUT
Coaxial cable (supplied)
Audio/Video
cable (not
supplied)
VCR Rear
TV
After the Connection
Plug in the power cord of the TV. Then go to EZ Set Up.
Connect the flat twin lead cable
to a transformer
(300 ohm to 75 ohm, not
supplied)
ANTENNA IN
(antenna or
cable input)
(Hi-Fi model)
