Sharp XG-C330X Service Manual

XG-C330X/C430X
2 – 1
XG-C330X
Service Manual
CHAPTER 2. REMOVING OF MAJOR PARTS

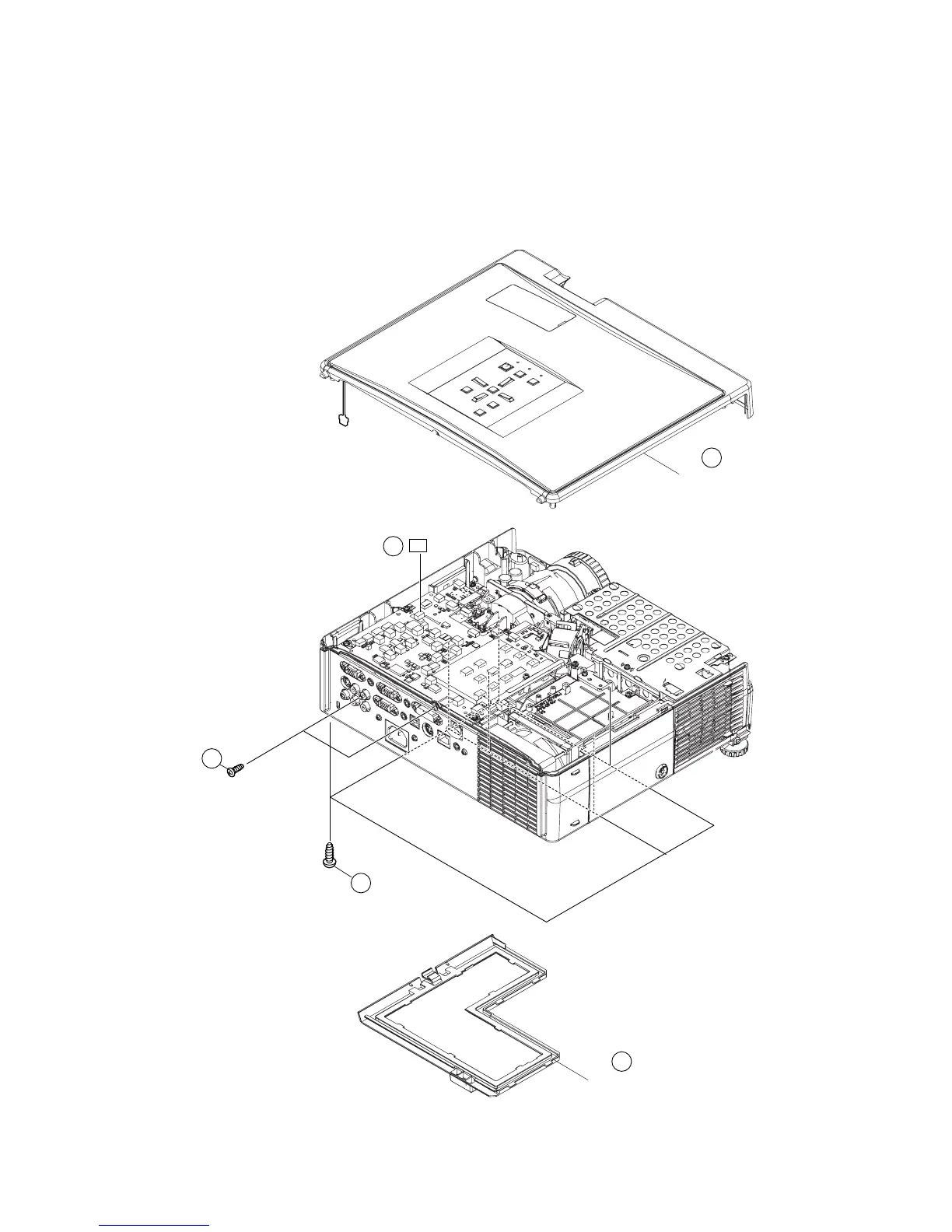

[1] Removing the Top Body and the Intake Cover.
1. Remove the 2 screws from the rear side.
2. Remove the 8 screws from the Top Body.
3. Lift and hold the Top Body . Remove [LF] connector.
4. Detact the Top Body.
5. Detach the Intake Cover.
LF
1-1
1-2
1-3
Top Body
1-4
Intake Cover
1-5
