XG-C330X/C430X
4 – 6
3. Rewriting of the model name
1. Rewriting of the Model name will be done with the Tera Term.
2. Send the following command.
“MF1_0000” for XG-C430X
“MF1_0001” for XG-C330X
3. Remove the AC cord
4. Confirmation of version.
1. Enter the “factory mode”,
With the menu not displayed, press the “ENTER”, “ENTER”, “VOL+”, “VOL-”, “ENTER”, “ENTER” and “MENU” keys on the projector

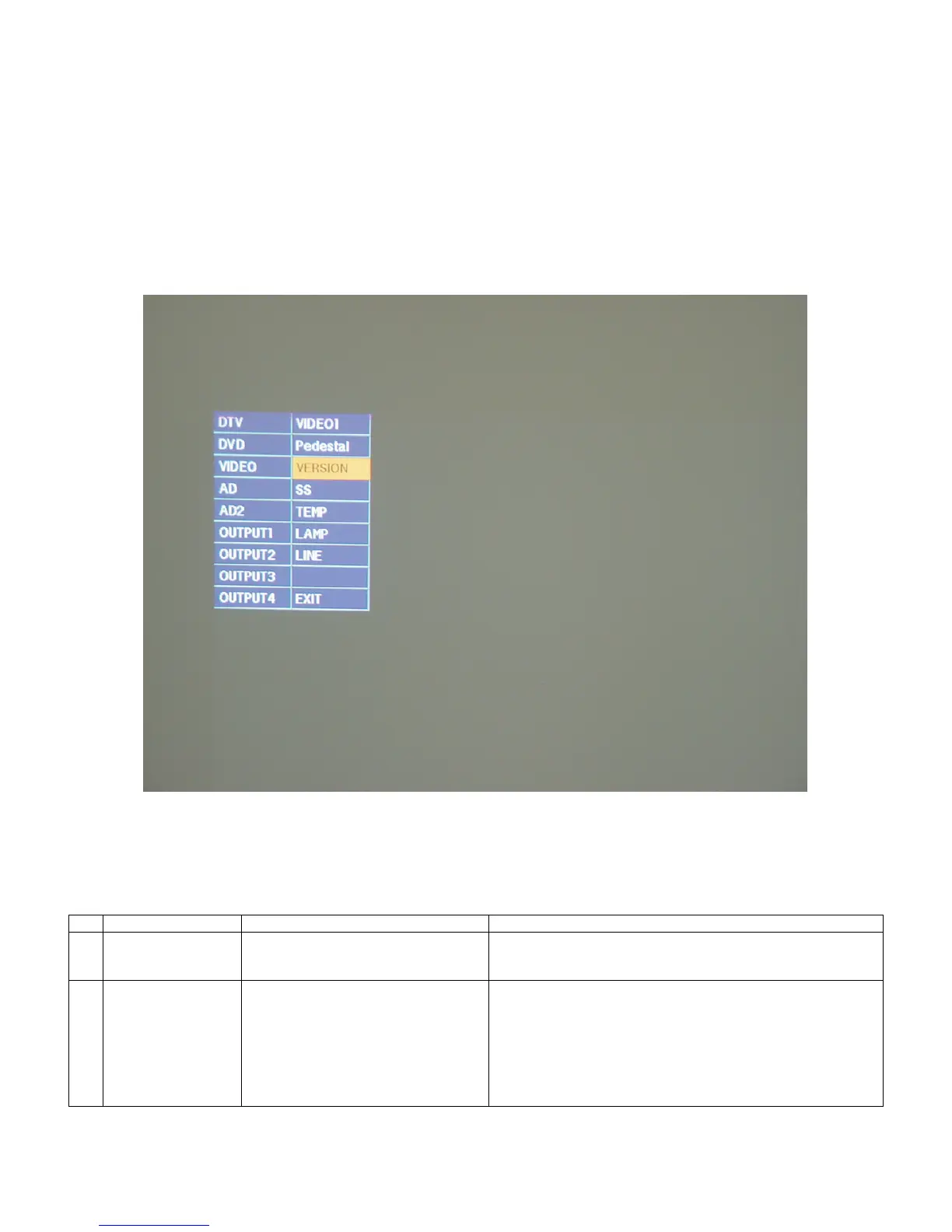

2. Below image is appeared and select “VERSION”.
Latest version will be appered.
[2] ELCTRICAL ADJUSTMENT
1. ELECTROCAL ADJUSTMENT (1)
No. Adjustment Item Adjustment Conditions Adjustment Procedures
1 EEPROM initialization 1) Turn on the power (the lamp turns on)
and perform aging for 15 minutes.
1) Perform the following setting.
Press S6501 to enter the process mode, and execute SS2 of the
SS menu.
2 R-bright check
Contrast adjustment
(manual or automatic)
1) Input the white/black wind pattern sig-
nal of amplitude level 96% (0.67 Vpp)/
0% of XGA60Hz to COMPUTER1.
2) Select the following.
Group: AD
Adjustment item: R-Bright
R-Contrast
(Process gamma linkage)
1) Check the fixed value.
R-Bright: 63
2) Observe the chromaticity of 96% white wind pattern portion using
CA100.
3) On the screen where bit dropouts occur, raise the R-Contrast
value. Adjust to the point where black to bright red bit dropouts
occur and the x value changes by 30/1000 or more.
To Next Page
