Sharp XG-C330X Service Manual

XG-C330X/C430X
2 – 2

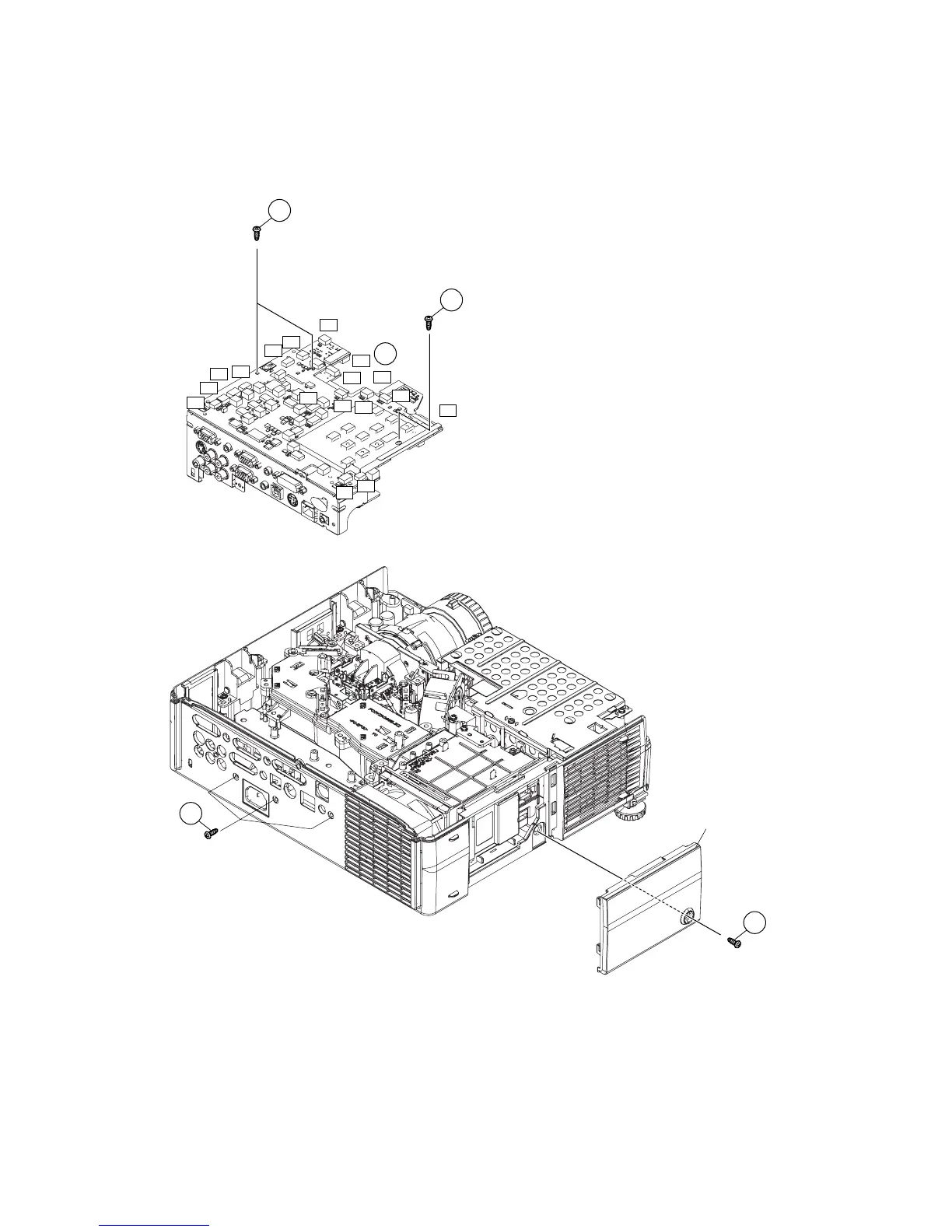

[2] Removing the Connecting Cables and Main PWB.
1. Remove the 3 screws from the rear side.
2. Detach all the Connecting Cables from PWBs.
3. Detach the FFCs (RP, GP, BP) from Main PWB.
4. Remove the 3 screws and detach the Main PWB.
5. Detach the 1 screw and detach the Lamp Door.
2-4
2-4
2-3
FA
T0
FC
FD
FE
LL
SO
CP
CP
EA
T1
FB
RP
GP
BP
FF
T2
2-5
Lamp Door
2-1
