Sharp XG-C330X Service Manual

XG-C330X/C430X
2 – 3

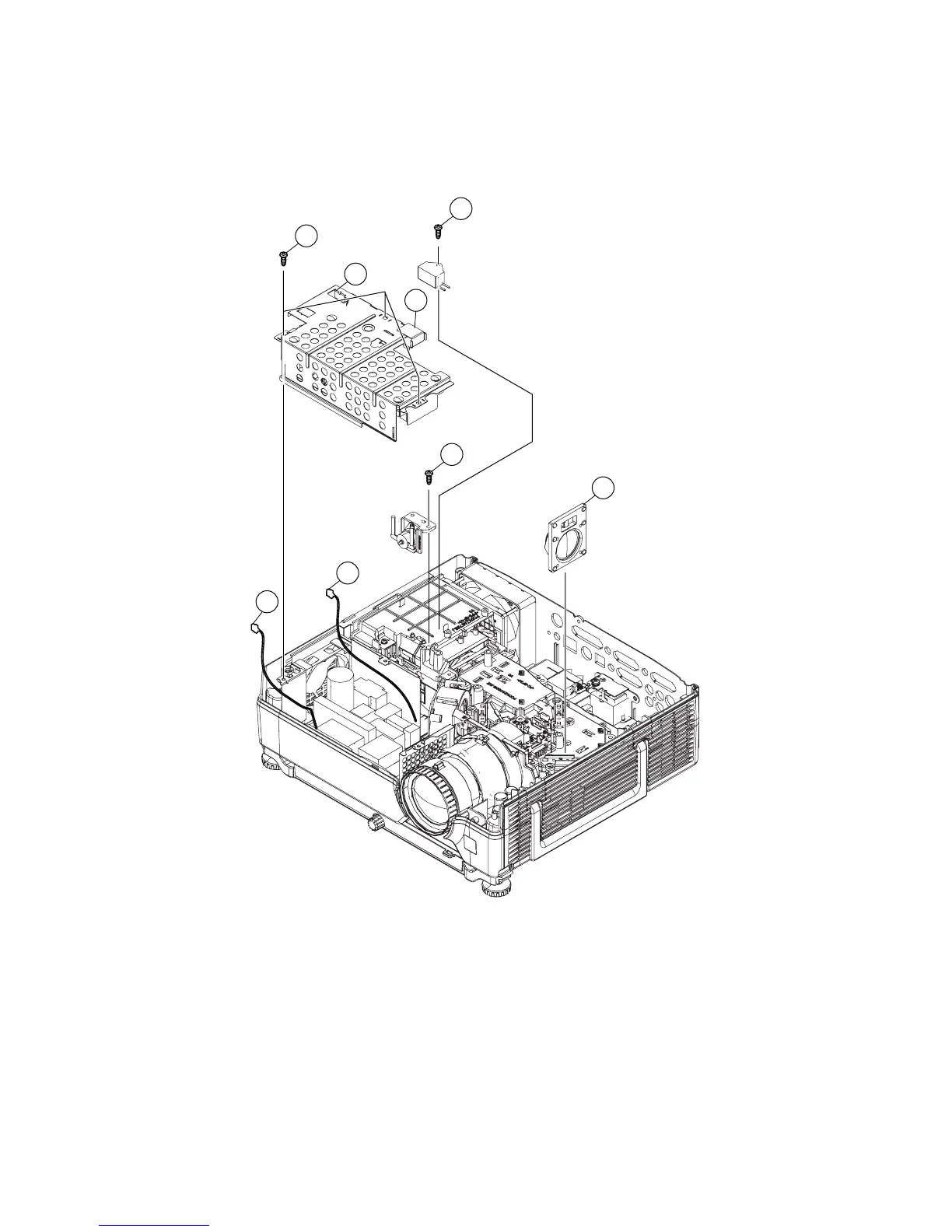

[3] Removing the Ballast Ass'y and the Speaker.
1. Remove the 1 screw and detach the Trigger Box.
2. Remove the 3 screws.
3. Remove the 2 cables and detach the Ballast Ass’y.
4. Detach the Speaker.
5. Remove the 1 screw and detach the Bimetal Holder.
3-1
3-5
3-3-2
3-2
Ballast Shield
Bimetal
Holder
Trigger
Box
3-4
3-3-2
3-3-1
3-2
