Sharp XG-C330X - Chapter 6. Block Diagram;Overall Wiring Diagram Block Diagram

XG-C330X/C430X
6 – 1
XG-C330X
Service Manual
CHAPTER 6. BLOCK DIAGRAM/OVERALL WIRING DIAGRAM
[1] BLOCK DIAGRAM


  
,
#
$
%
&
'
(
)
*
+

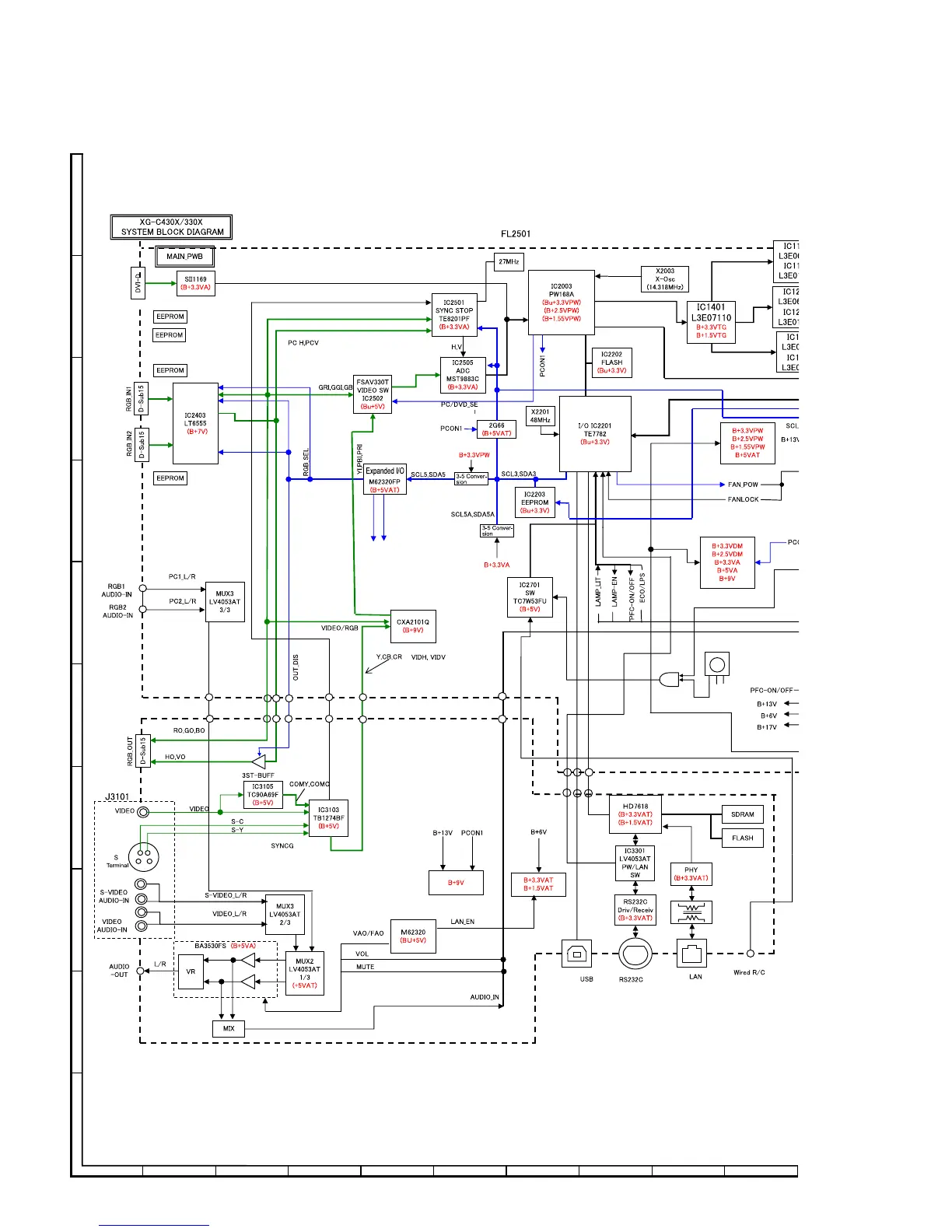

SYSTEM BLOCK DIAGRAM
