XG-C330X/C430X
2 – 4

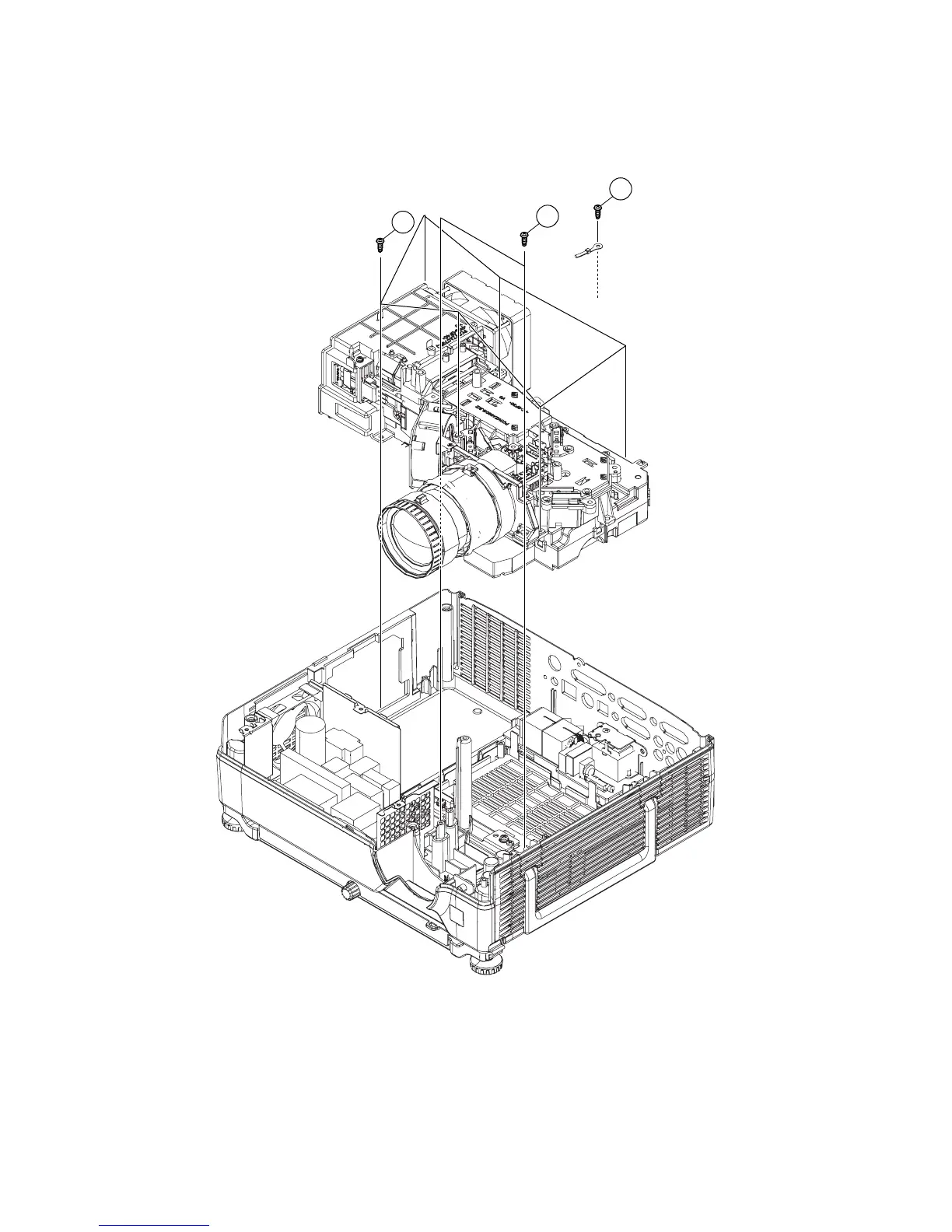

[4] Removing the Optical Mechanism Unit.
1. Remove the 6 screws.
2. Remove the 2 screws.
3. Remove 1 screw and detach the earth lead.
4. Detach the Optical Mechanism Unit.
4-1
4-3
Optical
Mechanism
unit
4-2
