XG-C330X/C430X
3 – 3
4. Replacing the prism holder unit

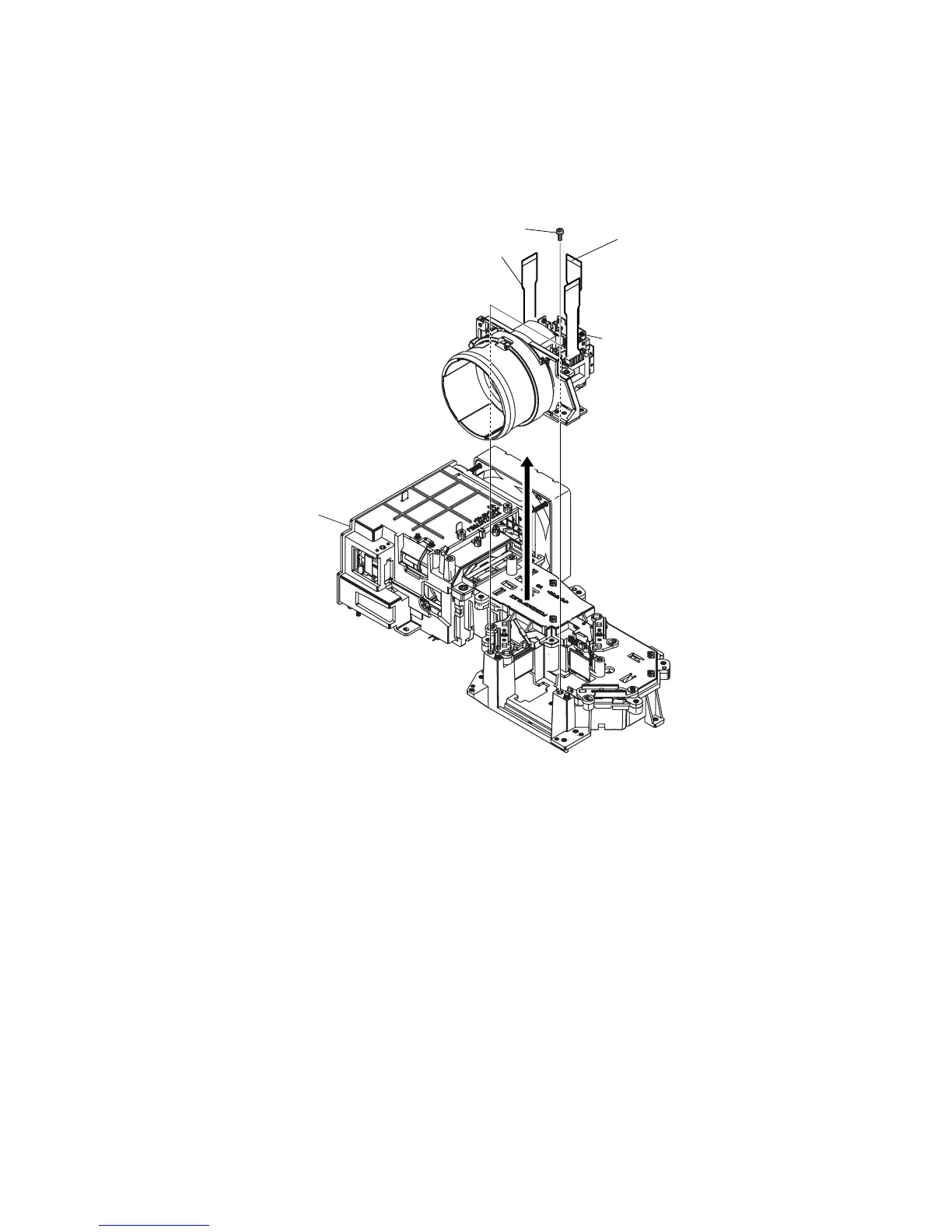

1. Remove the two lock screws, and take the prism holder unit out of the optical unit.
2. Replace the prism holder unit with new one. Take the above step 1 in reverse order.
NOTE: Even if just one of the LCD panels is defective, it is necessary to replace the entire prism unit. Do not replace
just the defective LCD panel only. Under the present circumstances, please do not touch the display part of
LCD.
G-LCD panel
Optical unit
R-LCD panel
Prism holder unit lock screws
B-LCD panel
