Shibaura SX21 - Mower Lift Linkage･･･････････････････････････････････････････････････････････････････････43

3 - INSTALLATION AND TRAIAL RUN
43

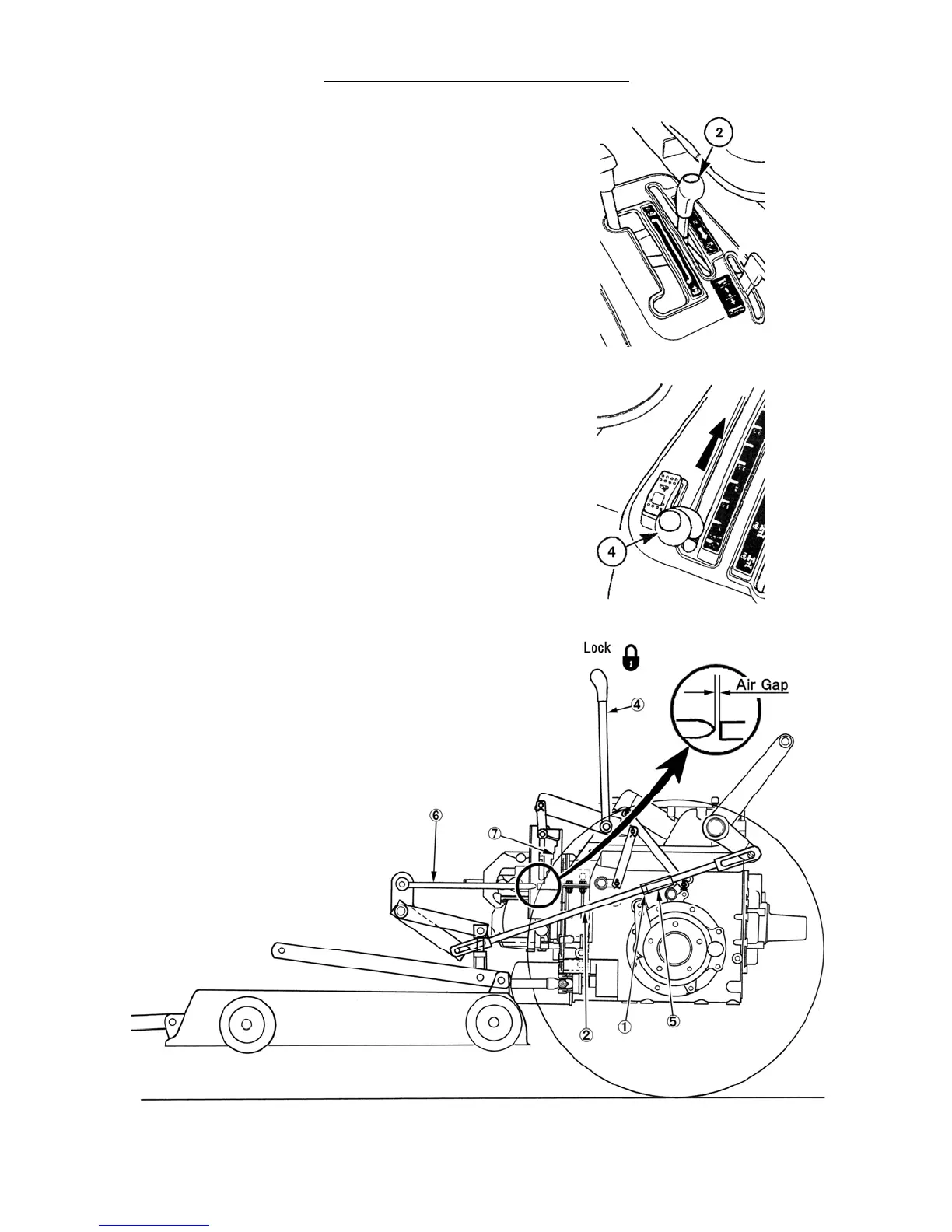

10) Mower lift linkage adjustment
① Loosen the lock nut, 1, on the mower lift rod.
② Start the engine and move the hydraulic control
lever to the “raise” position.
③ Stop the engine.
④ Move the cutting height control lever to the “lock”
(full rearward) position.
NOTE: If the height control lever cannot be moved to
“lock” position, shorten the mower lift linkage
(by rotating the turnbuckle) until the height
control lever can be placed in full “lock”.
⑤ Rotate the turnbuckle, 5, to extend the stop rod until
the tip of the rod, 6, touches the stop plate, 7.
⑥ Rotate the turnbuckle in the opposite direction ONE
turn, to create a gap between the end of the stop rod,
6, and the stop plate, 7.
⑦ Tighten the lock nut, 1, to secure the adjustment.
