2 - SEPARATING THE TRACTOR
32
13) Wirings

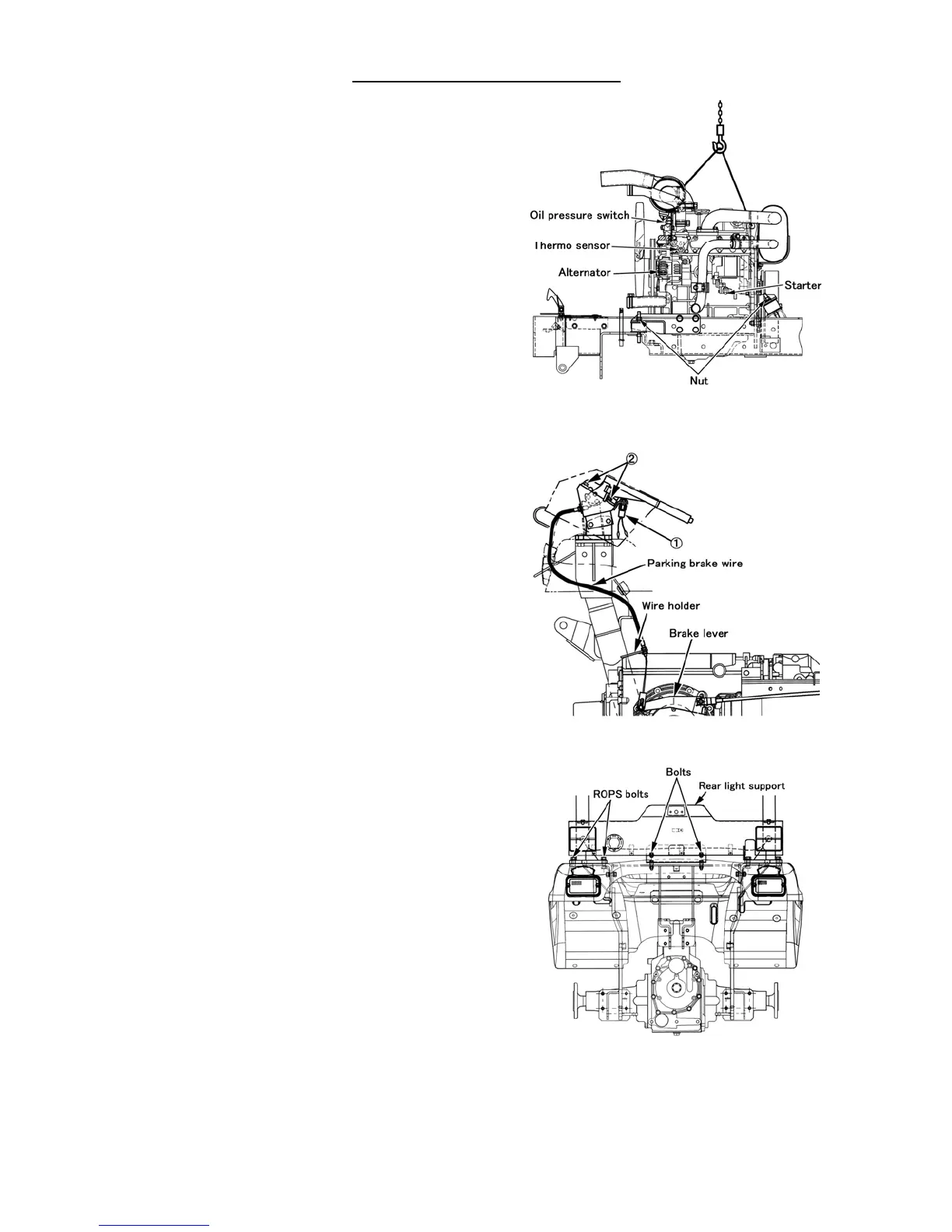

① Disconnect the wirings from starting motor,
alternator, cooling water temperature sensor, oil
pressure switch, glow plug and engine stop
solenoid, and move the harness out of the way.
.
14) Engine Removal
① Disconnect the fuel pipe and return pipe from the
engine.
② Using the suitable hoist, attach chains to the engine.
③ Remove the four engine attached nuts.
④ Carefully lift the engine and move to the other place.
2. TRANSMISSION REMOVAL
1) Parking brake
① Disconnect the connectors for the parking brake
switch.
② Remove the two bolts underneath the parking brake
and separate the parking brake.
③ If necessary remove the parking brake assembly as
follows:
a. Remove the split pin and pin and disconnect the
parking brake wire from the brake lever.
b. Untighten the locknut and remove the parking brake
wire from the wire holder.
c. Remove the parking brake assembly from the
tractor.
2) ROPS, Rear light support
① Disconnect the connector for the rear light connector
under the left fender.
② Remove the two bolts at the center for the rear lights
support.
③ Attach the hoist to the ROPS and remove the four
bolts at each side and remove the ROPS with rear
light support.
