ENGINE SYSTEMS
81

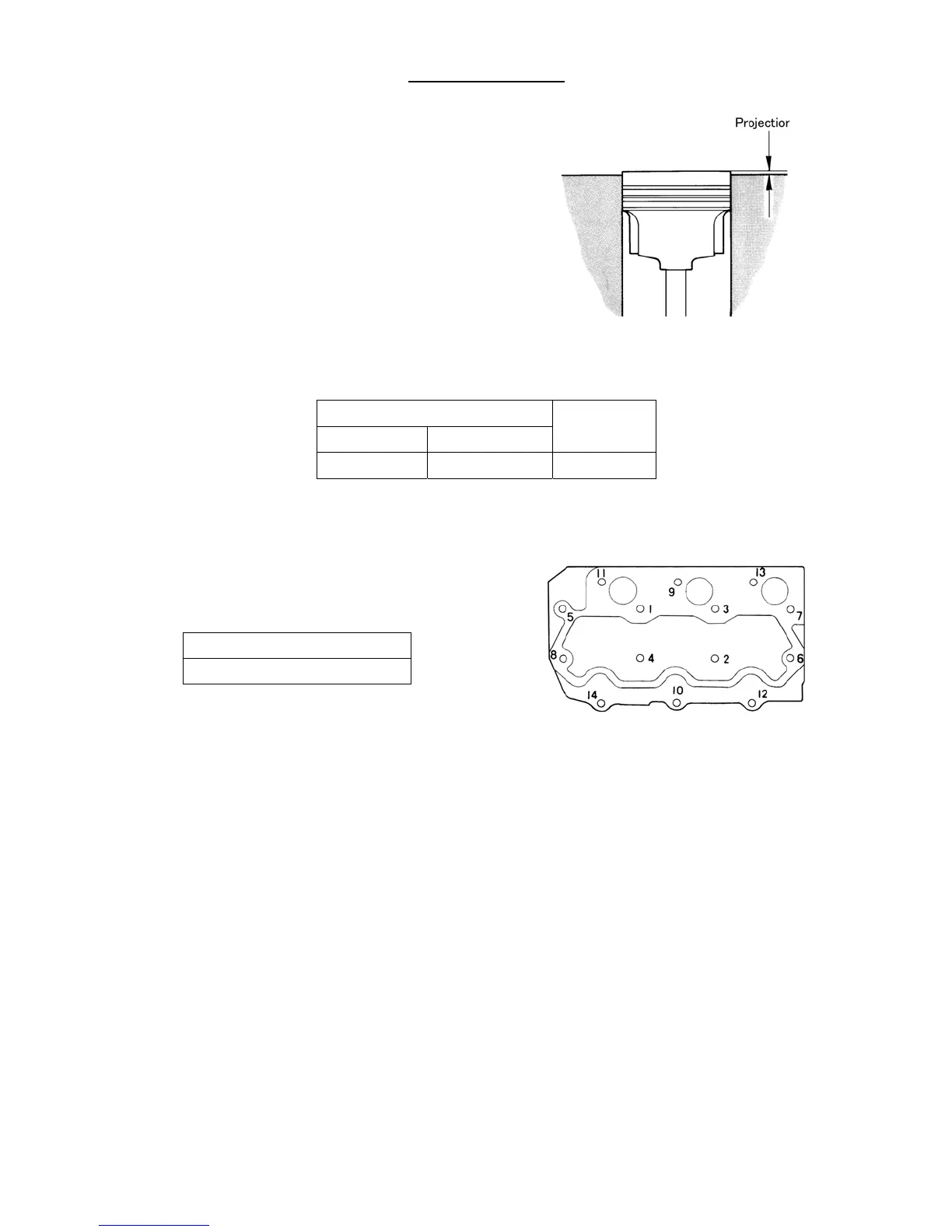

20) Cylinder head
➀ Position each of the pistons at top dead center and,
using a dial indicator, determine the distance each
piston projection above the face of the block.
NOTE: Measure each of the pistons while holding a
slight down pressure on the piston. Use the
dimension taken from the cylinder which
has the greatest projection and select a head
gasket as indicated in the following chart.
NOTE: The variation in the amount of protrusion
among all pistons must be within 0.1 mm.
68
Models S753 and S773
Head gasket part code No.
Tightened
Thickness
S753 S773
111147640 111147570 t = 1.3
NOTE: Lowest for digits of code numbers are stamped on the head gasket. Install head gasket with code numbers at
top.
➁ Tighten the cylinder head in several steps in the
order as shown in the right figure and tighten with
the specified torque finally.
Cylinder head tightening torque
49 ~ 52 N·m (5.0 ~ 5.3 kgf·m)
NOTE:
1. Take care to the spring pin which positions the
cylinder head ass’y.
2. Coat the thread with grease containing disulfide
molybdenum.
70
