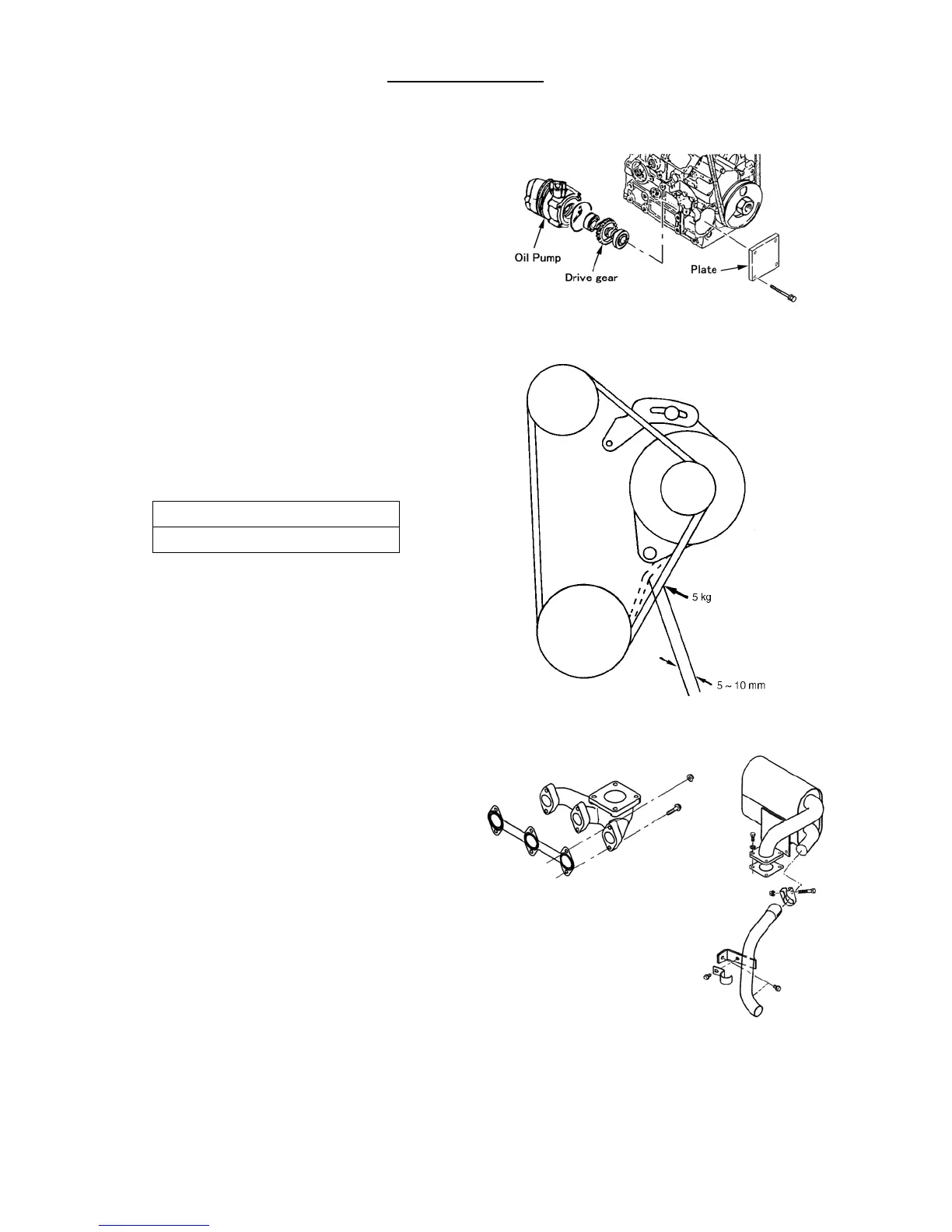

31) Drive gear assembly and Hydraulic oil
➀ Install the drive gear assembly to the hydraulic
pump and then install them with plate to the gear
case.
32) V belt · Fan pulley · Cooling fan
➀ Install the fan pulley and cooling fan and then V
belt.
➁ Adjust the belt tension with the alternator so that it
is deflected 5~10 mm at the middle point between
the crankshaft pulley and alternator pulley when
depressed by a finger (about 5 kgf) and tighten.
Cooling fan tightening torque
8.8 ~ 12.7 N·m (0.9 ~ 1.3 kgf·m)
33) Exhaust manifold and Muffler assembly
