2 - SEPARATING THE TRACTOR
33

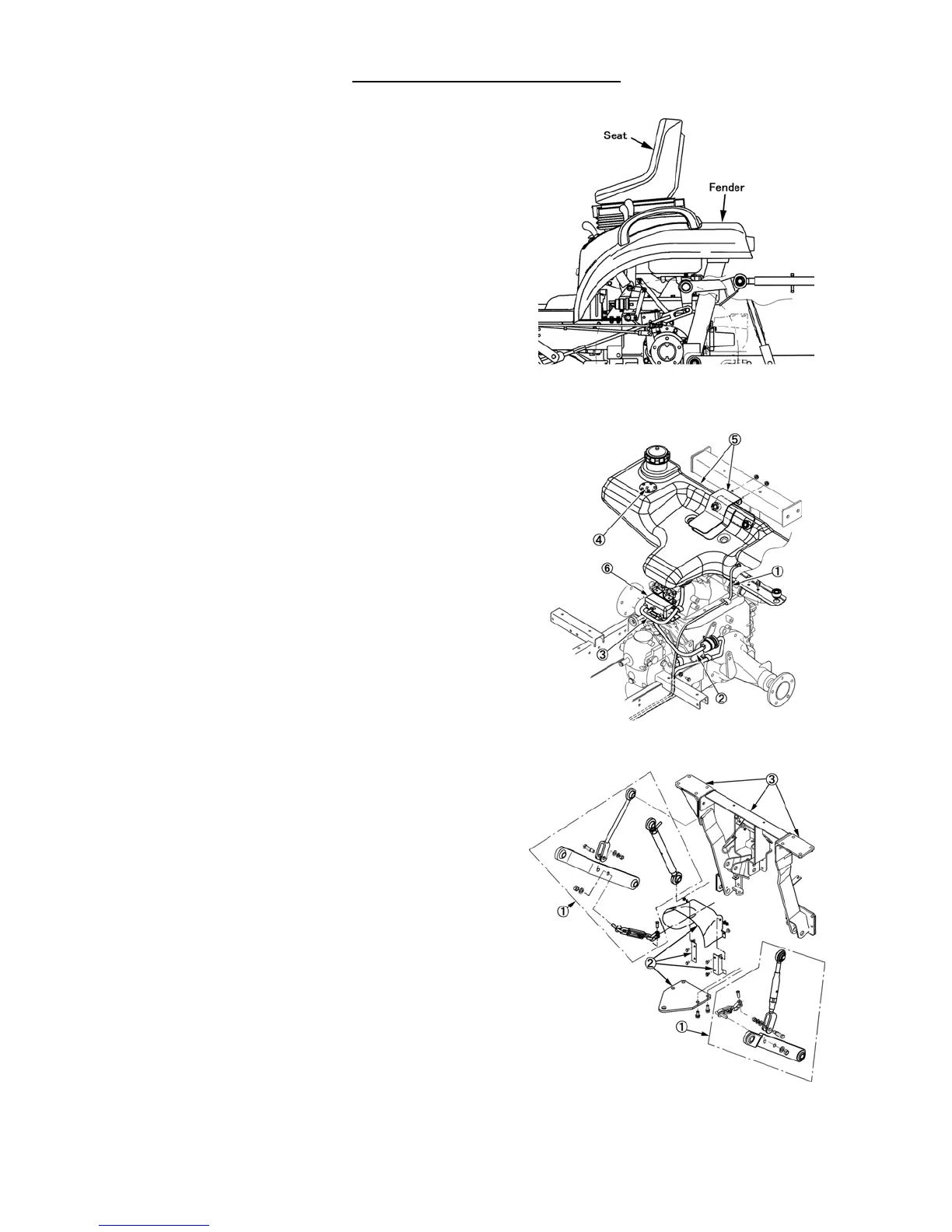

3) Seat
① Remove the bolts for attached seat assembly.
② Remove the seat assembly.
4) Fender
① Remove the grips from 4WD control lever, PTO
clutch lever, hydraulic power control lever, range
control lever, PTO select lever and mower height
adjustment lever.
② Remove the fender from the tractor.
5) Fuel tank
① Disconnect the fuel return hose from the left of the
fuel tank.
② Disconnect the fuel supply line from the fuel filter
and drain the fuel from the tank into a clean
container.
③ Disconnect the fuel pipe from the reserve tank.
④ Disconnect the electrical connectors from the fuel
level sender unit.
⑤ Remove the tank support and the fuel tank.
⑥ Remove the reserve tank.
6) Three point linkage･ROPS Frame (L.H., R.H.,
Center)
① Remove the three point linkage from the ROPS
frames, lift arms and stabilizer brackets.
② Remove the PTO guard and hitch from the
transmission housing.
③ Remove the ROPS frame (L.H., R.H., Center)
from the transmission.
35
37
38
