2 - SEPARATING THE TRACTOR
34
7) Transmission assembly
The hydraulic cylinder assembly, HST assembly and
rear wheel shaft assembly can be removed from the
transmission housing before remove the transmission
assembly from the main frame.

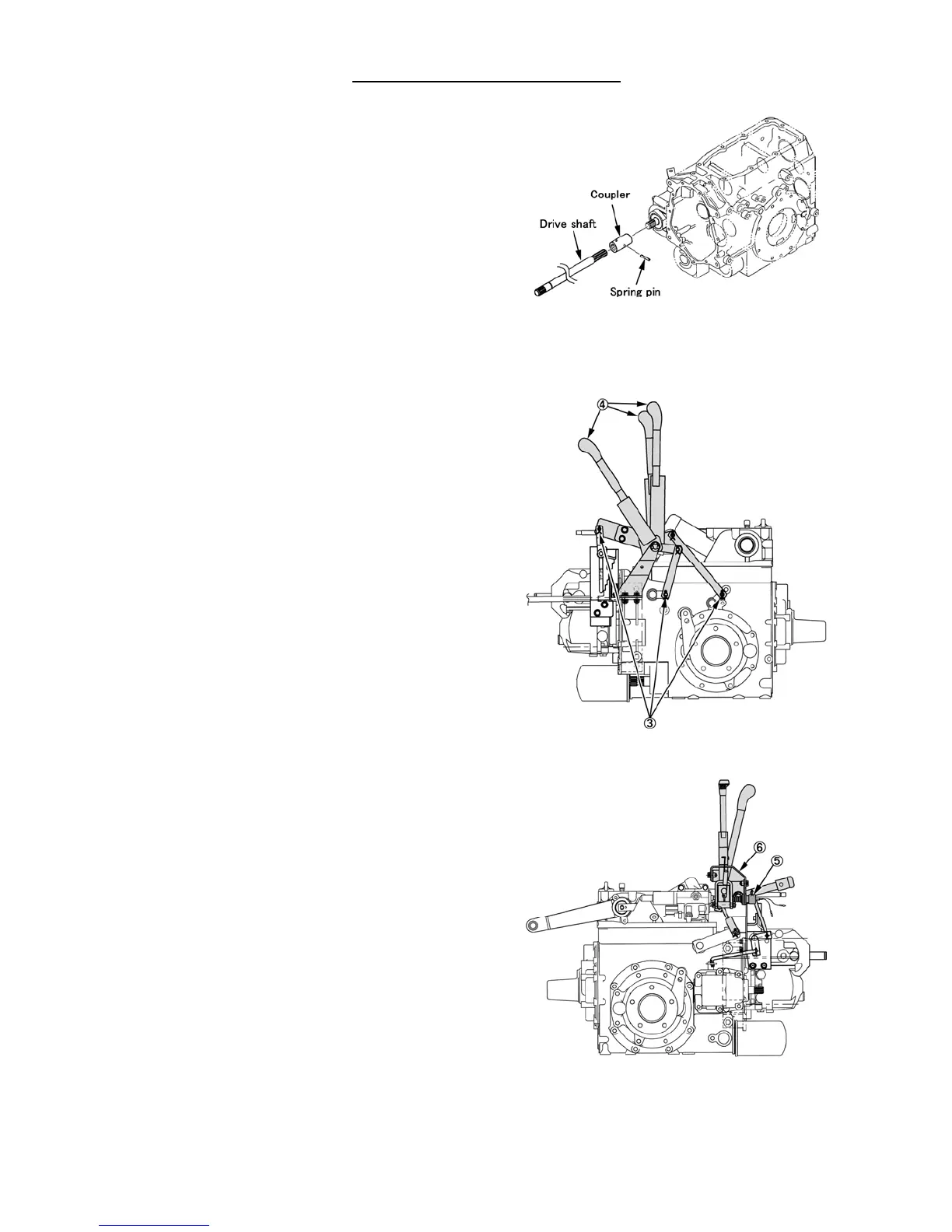

① Remove the brake rods from the brake levers.
② Drive out the spring pin from the coupler and slide
the coupler to forward for the front wheel drive.
③ Remove the split pins and disconnect the plates from
the change levers or shift arm.
④ Remove the PTO select lever, range change lever
and mower height adjustment lever as a set.
⑤ Disconnect the connector for the PTO safety switch.
⑥ If necessary, remove the 4WD change lever and
PTO clutch control lever as a set.
