2 - SEPARATING THE TRACTOR
35

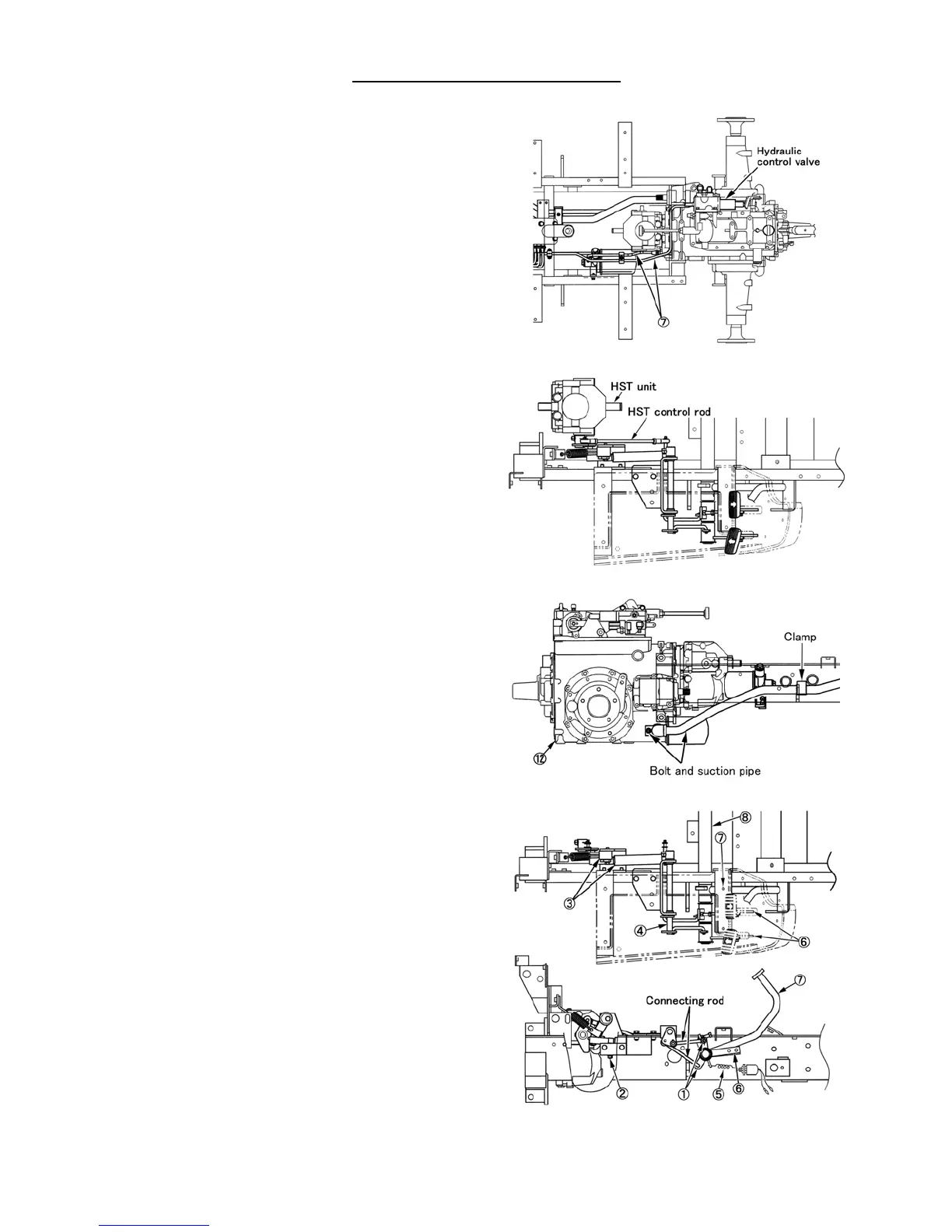

⑦ Disconnect the oil pipes from the HST unit and
hydraulic control valve.
⑧ Remove the split pin, washer and disconnect the
HST control rod from the HST shift arm.
⑨ Remove the clamp from under the main frame.
⑩ Remove the bolt and suction pipe from the
transmission housing.
⑪ Disconnect the connectors from the range gear
safety switch and PTO select safety switch.
⑫ Remove the transmission assembly from the main
frame.
8) Damper, HST shift link assembly, Brake pedal
① Remove the split pins and washers for the
connecting rods.
② Remove the U-nut for the damper from under the
shift guide.
③ Remove the shift link and damper as an assembly.
④ Remove the HST link assembly from the main
frame.
⑤ Remove the spring for the brake switch.
⑥ Remove the snap ring, spacers and two HST pedals
from shaft.
⑦ Drive out the roll pin and remove the brake pedal.
⑧ Pull out the brake shaft from the main frame.
