2 - SEPARATING THE TRACTOR
36
3. FRONT AXLE and THE OTHER
REMOVAL

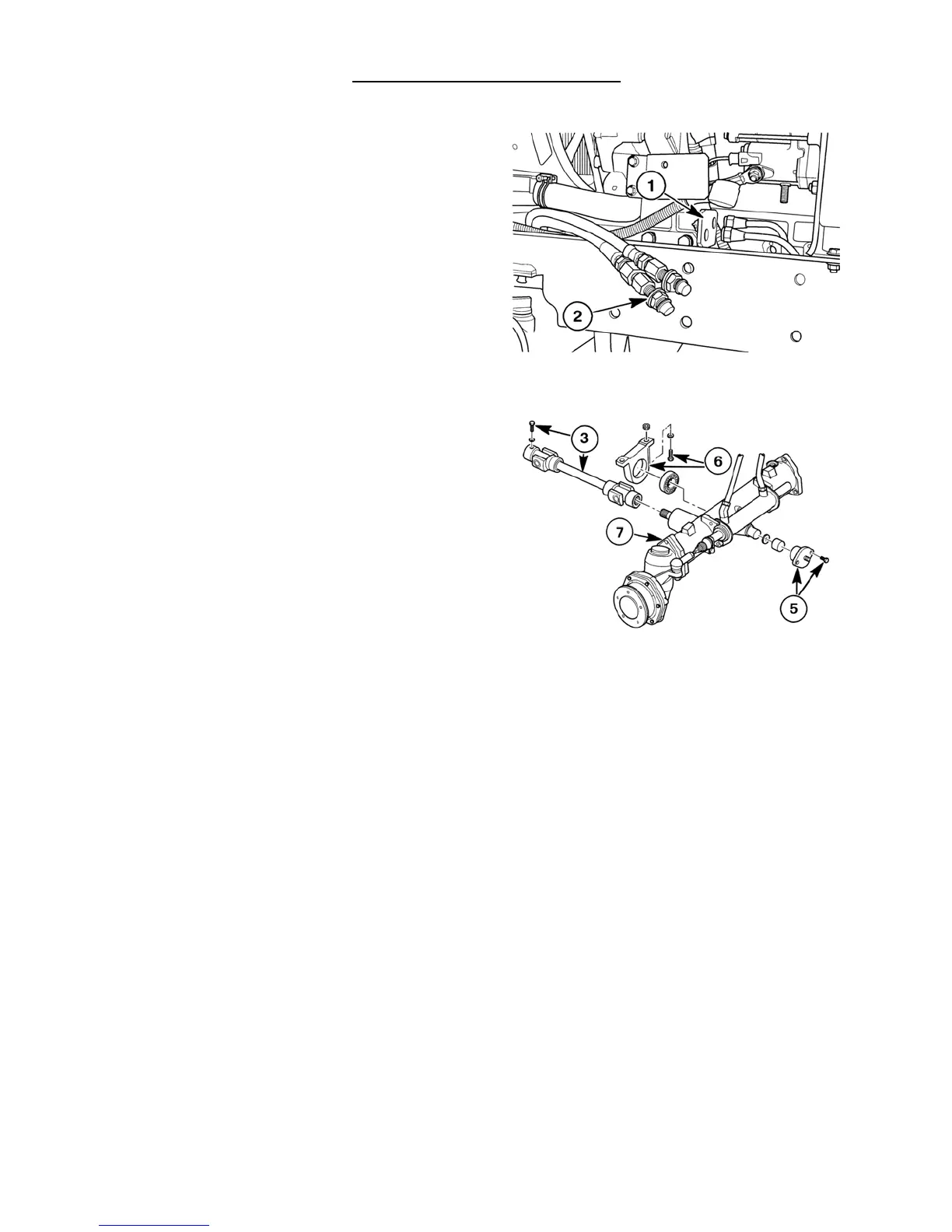

1) Front axle assembly
① Disconnect the power steering oil pipes at the
adapters.
② Remove the nuts, adapters and hose clamp from
the main frame.
③ Remove the bolt and joint assembly between the
front wheel drive shaft and front axle drive
pinion.
④ Hold the main frame on the jacks.
⑤ Remove the two bolts for pivot shaft cover.
⑥ Remove the bolts and nuts from rear of front axle
assembly.
⑦ Remove the front axle assembly from the main
frame.
