2 - SEPARATING THE TRACTOR
31

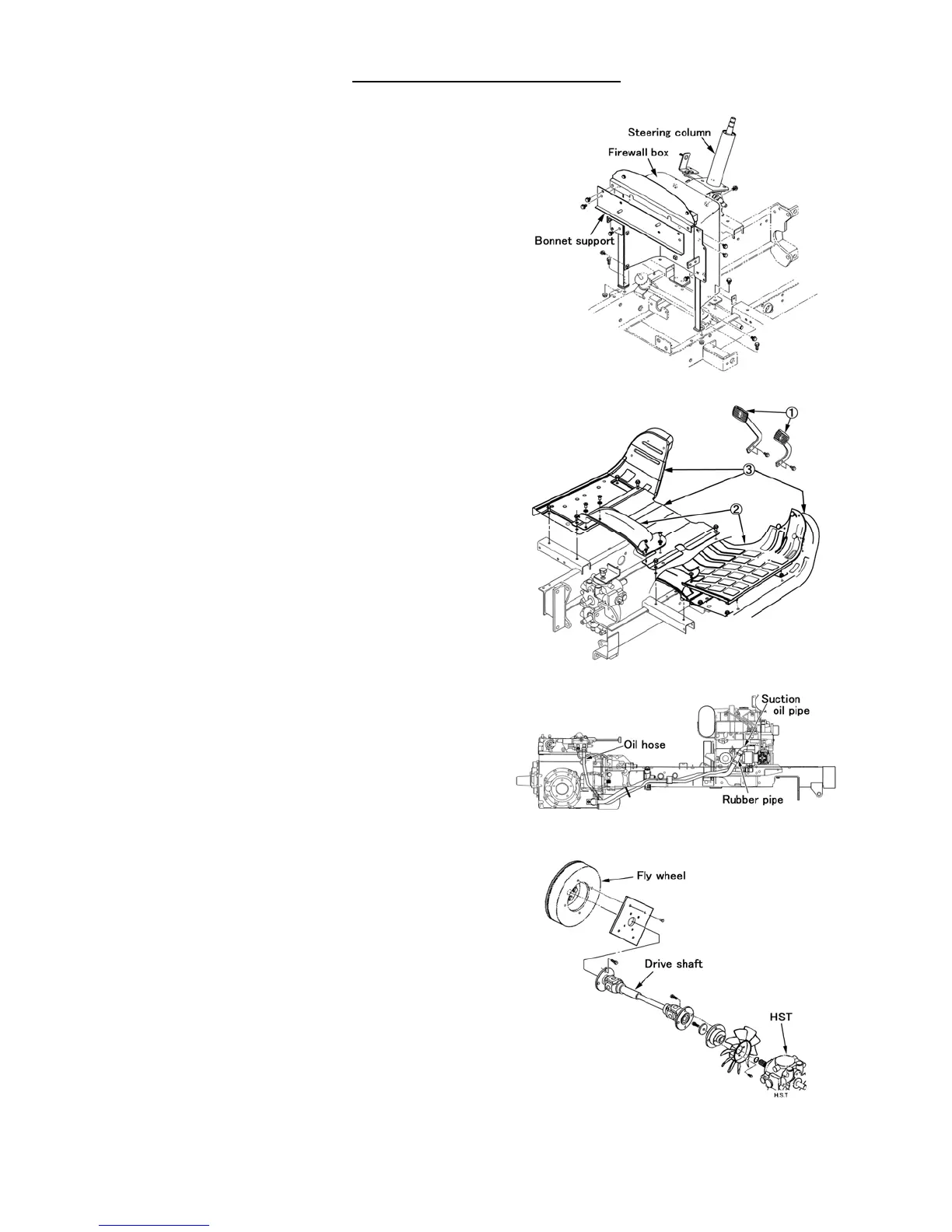

9) Steering column, Bonnet support, Firewall box
① Remove the steering column, firewall box as a set.
10) Rubber mat, Step (Center, R.H., L.H.), HST fan
cover
① Remove the HST pedals.
② Remove the rubber mat, HST fan cover.
③ Remove the step (center, R.H., and L.H.) from the
tractor.
11) Hydraulic oil pipe and oil hose
① Disconnect the oil hose from the hydraulic control
valve.
② Untighten the hose bands and disconnect the
suction oil pipe at the rubber pipe.
12) Drive shaft
① Remove the attached bolts and disconnect the drive
shaft between the flywheel flange and HST unit.
